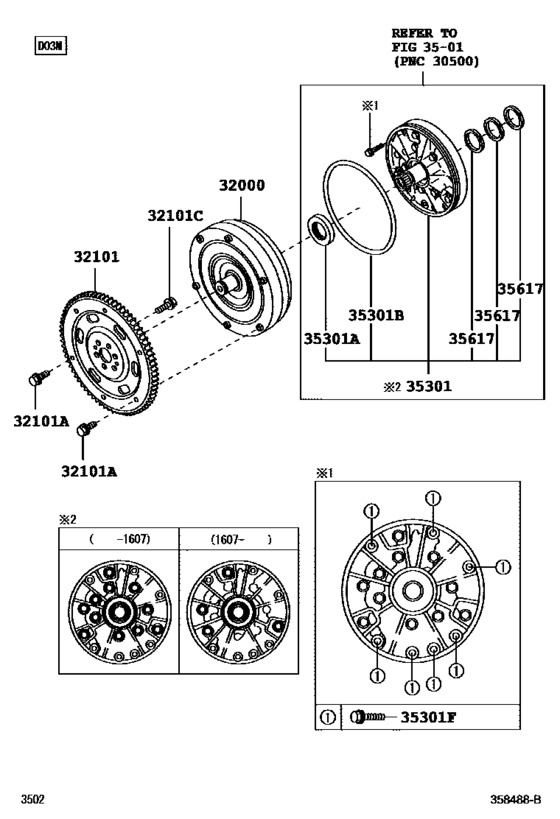

| 32000-B1131 |
Converter Assy, Torque |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2012 - ] (1212- )B100..ATM) |
| 32101-BZ040 |
Gear Sub-Assy, Drive Plate & Ring |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2012 - ] (1212- )B100..ATM) |
| 35310-B1050 |
Body Sub-Assy, Front Oil Pump |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2012 - ] (1212- )B100..ATM) |
| 35653-B1010 |
Ring, Clutch Drum Oil Seal |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2012 - ] (1212- )B100..ATM) |
| 90041-05122 |
Bolt (For Front Oil Pump Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2012 - ] (1212- )B100..ATM) |
| 90041-05273 |
Bolt(For Drive Plate & Torque Converter Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2012 - ] (1212- )B100..ATM) |
| 90041-05281 |
Bolt(For Drive Plate & Torque Converter Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2012 - ] (1212- )B100..ATM) |
| 90043-01161 |
Ring, O (For Front Oil Pump Body) |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2012 - ] (1212- )B100..ATM) |
| 90043-11336 |
Seal, Oil (For Front Oil Pump) |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2012 - ] (1212- )B100..ATM) |
| 90048-01037 |
Bolt(For Flywheel) |
Torque Converter, Front Oil Pump & Chain (Atm) ([12.2012 - ] (1212- )B100..ATM) |
