Search › Model › B100
B100

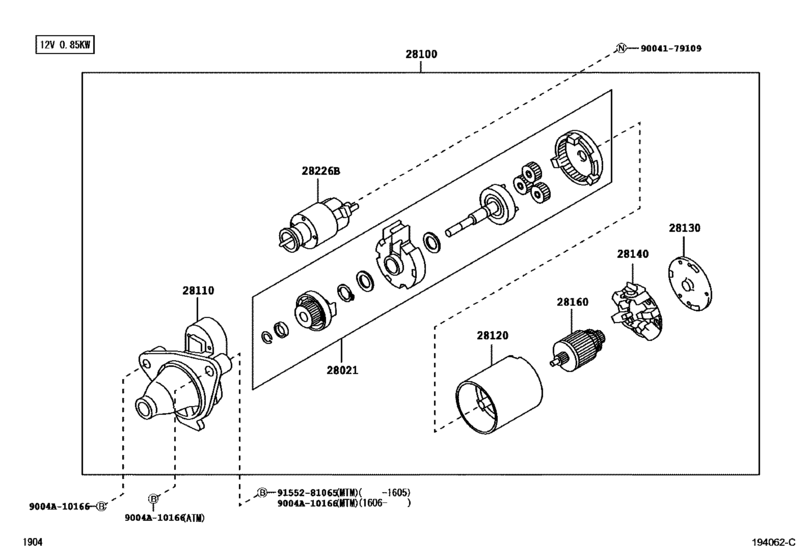

Starter ([12.2012 - ] (1212- )1KR#) 12
| # | OEM | Part name |
|---|---|---|
| 28021 | 28021-BZ010 | Clutch Sub-Assy, Starter Center Bearing |
| 28100 | 28100-BZ151 | Starter Assy |
| 28100 | 28100-BZ141 | Starter Assy |
| 28110 | 28110-BZ060 | Housing Assy, Starter Drive |
| 28110 | 28110-BZ040 | Housing Assy, Starter Drive |
| 28120 | 28120-BZ030 | Yoke Assy, Starter |
| 28130 | 28130-BZ140 | Frame Assy, Starter Commutator End |
| 28140 | 28140-BZ140 | Holder Assy, Starter Brush |
| 28160 | 28160-BZ040 | Armature Assy, Starter |
| 28226 | 28226-BZ010 | Starter Kit, Repair Service |
| 9004179109 | 90041-79109 | New Genuine Part |
| 9155281065 | 91552-81065 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 28021-BZ010 | Clutch Sub-Assy, Starter Center Bearing | Starter ([12.2012 - ] (1212- )1KR#) |
| 28100-BZ141 | Starter Assy | Starter ([12.2012 - ] (1212- )1KR#) |
| 28100-BZ151 | Starter Assy | Starter ([12.2012 - ] (1212- )1KR#) |
| 28110-BZ040 | Housing Assy, Starter Drive | Starter ([12.2012 - ] (1212- )1KR#) |
| 28110-BZ060 | Housing Assy, Starter Drive | Starter ([12.2012 - ] (1212- )1KR#) |
| 28120-BZ030 | Yoke Assy, Starter | Starter ([12.2012 - ] (1212- )1KR#) |
| 28130-BZ140 | Frame Assy, Starter Commutator End | Starter ([12.2012 - ] (1212- )1KR#) |
| 28140-BZ140 | Holder Assy, Starter Brush | Starter ([12.2012 - ] (1212- )1KR#) |
| 28160-BZ040 | Armature Assy, Starter | Starter ([12.2012 - ] (1212- )1KR#) |
| 28226-BZ010 | Starter Kit, Repair Service | Starter ([12.2012 - ] (1212- )1KR#) |
| 90041-79109 | New Genuine Part | Starter ([12.2012 - ] (1212- )1KR#) |
| 91552-81065 | New Genuine Part | Starter ([12.2012 - ] (1212- )1KR#) |
