AZV55

Toyota VISTA-VISTA-ARDEO · 2002 · 4,285 parts · 185 categories

4,285 items

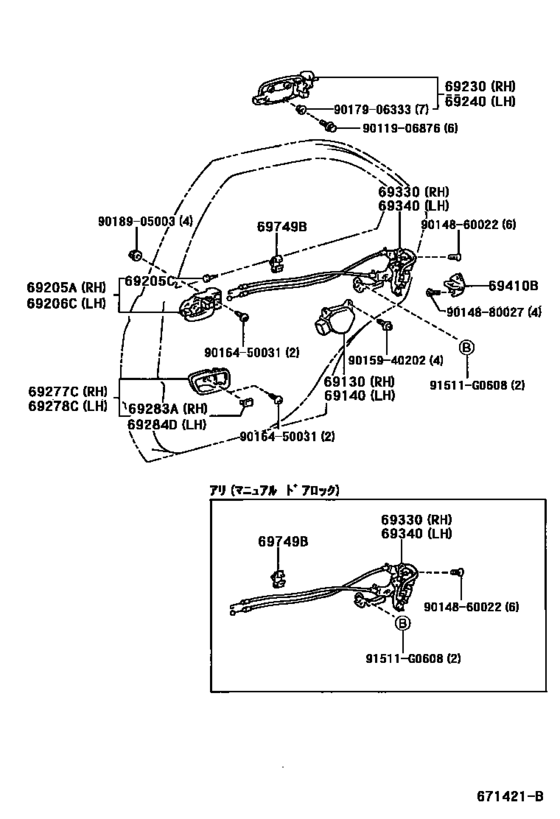

Rear Door Lock & Handle ([06.1998 - ] (9806- )) 43

#	OEM	Part name
69130	69130-51010	Actuator Assy, Rear Door Lock, Rh
69140	69140-51010	Actuator Assy, Rear Door Lock, Lh
69205	69205-17010-A0	Handle Sub-Assy, Front Door Inside, Rh
69205	69205-17010-B0	Handle Sub-Assy, Front Door Inside, Rh
69205	90541-04014	Cushion, Console Box
69206	69206-17010-A0	Handle Sub-Assy, Front Door Inside, Lh
69206	69206-17010-B0	Handle Sub-Assy, Front Door Inside, Lh
69230	69230-32090-A0	Handle Assy, Rear Door Outside, Rh
69230	69230-32090-A1	Handle Assy, Rear Door Outside, Rh
69230	69230-32090-B2	Handle Assy, Rear Door Outside, Rh
69230	69230-32090-E0	Handle Assy, Rear Door Outside, Rh
69230	69230-32090-G1	Handle Assy, Rear Door Outside, Rh
69230	69230-32090-J0	Handle Assy, Rear Door Outside, Rh
69240	69240-32090-A0	Handle Assy, Rear Door Outside, Lh
69240	69240-32090-A1	Handle Assy, Rear Door Outside, Lh
69240	69240-32090-B2	Handle Assy, Rear Door Outside, Lh
69240	69240-32090-E0	Handle Assy, Rear Door Outside, Lh
69240	69240-32090-G1	Handle Assy, Rear Door Outside, Lh
69240	69240-32090-J0	Handle Assy, Rear Door Outside, Lh
69277	69277-22090-A1	Bezel, Front Door Inside Handle, Rh
69277	69277-22090-B5	Bezel, Front Door Inside Handle, Rh
69277	69277-22090-B3	Bezel, Front Door Inside Handle, Rh
69278	69278-22050-A1	Bezel, Front Door Inside Handle, Lh
69278	69278-22050-B5	Bezel, Front Door Inside Handle, Lh
69278	69278-22050-B6	Bezel, Door Inside Handle, Lh (Dk.Gray)
69283	69283-30040-A1	Plug, Front Door Inside Handle Bezel, Rh
69283	69283-30040-B8	Plug, Front Door Inside Handle Bezel, Rh
69284	69284-30040-A1	Plug, Front Door Inside Handle Bezel, Lh
69284	69284-30040-B8	Plug, Front Door Inside Handle Bezel, Rh
69330	69330-32390	Lock Assy, Rear Door, Rh
69340	69340-32390	Lock Assy, Rear Door, Lh
69410	69410-20110	Plate Assy, Front Door Lock Striker
69749	69749-32040	Clamp, Front Door Lock Link
91511	91511-G0608	New Genuine Part
9011906876	90119-06876	New Genuine Part
9014860022	90148-60022	BOLT
9014860022	90148-A0005	Hexalobular Screw
9014880027	90148-80027	Screw Hex Lobular
9015940202	90159-40202	SCREW WWASHER
9016450031	90164-50031	SCREW BINDING
9017906333	90179-06333	New Genuine Part
9017906333	90179-06038	New Genuine Part
9018905003	90189-05003	CLIP

OEM	Part name	Category
69130-51010	Actuator Assy, Rear Door Lock, Rh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69140-51010	Actuator Assy, Rear Door Lock, Lh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69205-17010-A0	Handle Sub-Assy, Front Door Inside, Rh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69205-17010-B0	Handle Sub-Assy, Front Door Inside, Rh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69206-17010-A0	Handle Sub-Assy, Front Door Inside, Lh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69206-17010-B0	Handle Sub-Assy, Front Door Inside, Lh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69230-32090-A0	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69230-32090-A1	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69230-32090-B2	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69230-32090-E0	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69230-32090-G1	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69230-32090-J0	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69240-32090-A0	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69240-32090-A1	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69240-32090-B2	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69240-32090-E0	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69240-32090-G1	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69240-32090-J0	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69277-22090-A1	Bezel, Front Door Inside Handle, Rh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69277-22090-B3	Bezel, Front Door Inside Handle, Rh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69277-22090-B5	Bezel, Front Door Inside Handle, Rh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69278-22050-A1	Bezel, Front Door Inside Handle, Lh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69278-22050-B5	Bezel, Front Door Inside Handle, Lh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69278-22050-B6	Bezel, Door Inside Handle, Lh (Dk.Gray)	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69283-30040-A1	Plug, Front Door Inside Handle Bezel, Rh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69283-30040-B8	Plug, Front Door Inside Handle Bezel, Rh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69284-30040-A1	Plug, Front Door Inside Handle Bezel, Lh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69284-30040-B8	Plug, Front Door Inside Handle Bezel, Rh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69330-32390	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69340-32390	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69410-20110	Plate Assy, Front Door Lock Striker	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
69749-32040	Clamp, Front Door Lock Link	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
90119-06876	New Genuine Part	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
90148-60022	BOLT	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
90148-80027	Screw Hex Lobular	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
90148-A0005	Hexalobular Screw	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
90159-40202	SCREW WWASHER	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
90164-50031	SCREW BINDING	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
90179-06038	New Genuine Part	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
90179-06333	New Genuine Part	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
90189-05003	CLIP	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
90541-04014	Cushion, Console Box	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
91511-G0608	New Genuine Part	Rear Door Lock & Handle ([06.1998 - ] (9806- ))
