AZV55

Toyota VISTA-VISTA-ARDEO · 2002 · 4,285 parts · 185 categories
AZV55 ×

← Back to categories

4,285 items

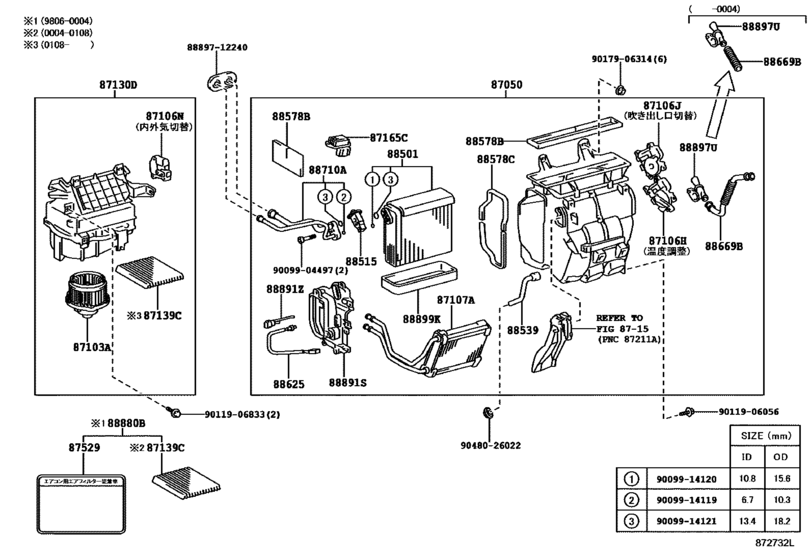

Heating & Air Conditioning - Cooler Unit ([06.1998 - ] (9806- )) 37
#OEMPart name
87050 87050-32030 Radiator Assy, Air Conditioner
87050 87050-32040 Radiator Assy, Air Conditioner
87103 87103-32040 Motor Sub-Assy, Cooling Unit, W/fan
87106 87106-32120 Servo Sub-Assy, Damper(For Airmix)
87106 87106-32180 Servo Sub-Assy, Damper(For Mode)
87106 87106-32190 Servo Sub-Assy, Damper(For Recirculation)
87107 87107-32120 Unit Sub-Assy, Heater Radiator
87107 87107-32130 Unit Sub-Assy, Heater Radiator
87130 87130-32170 Blower Assy
87139 87139-28010 Filter, Clean Air
87139 87139-47020 Filter, Clean Air
87165 87165-32010 Resistor, Blower
87529 87529-50020 Plate, Air Filter Caution
88501 88501-32110 Evaporator Sub-Assy, Cooler, No.1
88515 88515-48040 Valve, Cooler Expansion
88539 88539-32070 Hose, Cooler Unit Drain, No.1
88578 88578-32100 Packing, Cooling Unit, No.1
88578 88578-41030 Packing, Cooling Unit, No.1
88578 88578-32110 Packing, Cooling Unit, No.2
88625 88625-60140 Thermistor, Cooler, No.1
88669 88669-32410 Hose, Cooler Air
88710 88710-32180 Tube Assy, Air Conditioner
88891 88891-32091 Cover, Cooler, No.1
88891 88891-32100 Bracket, Cooler Thermistor
88897 88897-32090 Pipe, Aspirator
88899 88899-47030 Plate, Cover
8889712240 88897-12240 Grommet, (For Cooler Pipe)
9009904497 90099-04497 BOLT
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9011906056 90119-06056 New Genuine Part
9011906056 90119-06442 BOLT WWASHER
9011906833 90119-06833 BOLT WWASHER
9017906314 90179-06314 NUT
9048026022 90480-26022 Grommet (For Cooler Unit)
