Search › Model › AZV55

AZV55

Toyota VISTA-VISTA-ARDEO · 2002 · 4,285 parts · 185 categories

4,285 items

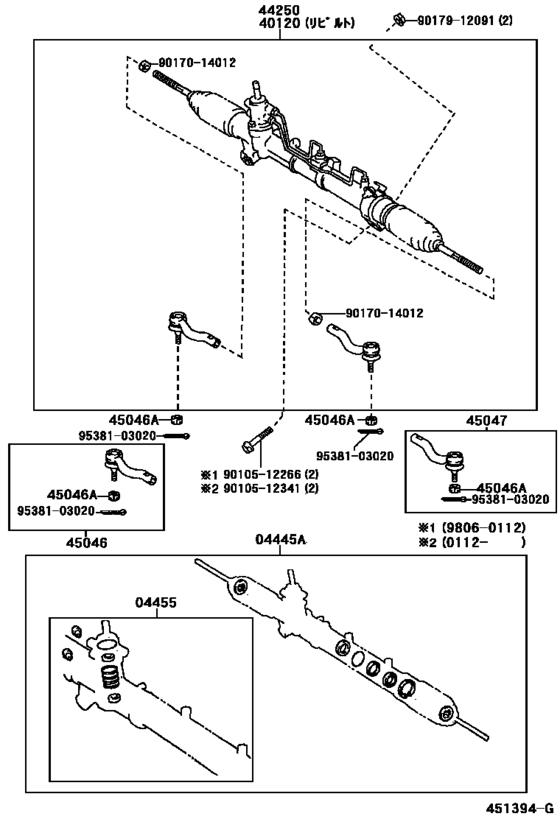

Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55) 42

#	OEM	Part name
4445	04445-32081	Gasket Kit, Power Steering Gear(For Rack & Pinion)
4455	04455-32061	Gasket Kit, Power Steering Control Valve Overhole
40120	40120-32310	Gear Assy,power Steering,rebuilt
44141	90301-49008	Ring, O(For Adjuster Plug)
44201	44201-32190	Valve Sub-Assy, Power Steering Control
44201	44201-32200	Valve Sub-Assy, Power Steering Control
44201	90562-33008	Ring(For Power Steering Control Valve)
44201	90363-30078	Bearing(For Power Steering Control Valve)
44203	44203-32150	Housing Sub-Assy, Power Steering Rack
44204	44204-32080	Rack Sub-Assy, Power Steering
44204	90301-33014	Ring(For Rack Steering Piston)
44204	90562-37006	Ring(For Rack Steering Piston)
44206	90310-25030	Seal, Oil, No.1(For Power Steering Cylinder Tube)
44210	90410-06002	Seat, Union(For Power Steering Control Valve)
44237	44237-12010	Seat, Pressure Control Valve Orifice
44250	44200-32320	Gear Assy, Power Steering(For Rack & Pinion)
44250	44200-32330	Gear Assy, Power Steering(For Rack & Pinion)
44253	90310-25032	Seal, Oil(For Power Steering Rack Housing)
44261	90179-30007	Nut(For Bearing Guide Nut)
44275	44275-32040	Stopper, Cylinder End
44275	90521-50002	Ring, Hole Snap(For Cylinder End Stopper)
44275	90310-25028	Seal, Oil(For Cylinder End Stopper)
44275	90580-14073	Wire(For Cylinder End Stopper)
44283	44283-32020	Cap, Rack Housing
44283	90311-20008	Seal, Oil(For Rack Housing Cap)
44418	44418-32110	Tube, Steering Right Turn Pressure
44419	44419-32120	Tube, Steering Left Turn Pressure
45046	45047-49015	End Sub-Assy, Tie Rod, Rh
45046	90171-12028	Nut, Castle(For Pitman Arm)
45047	45046-49085	End Sub-Assy, Tie Rod, Rh
45503	45503-39175	End Sub-Assy, Steering Rack
45503	90214-14002	Washer, Claw(For Power Steering Rack End)
45523	45053-32010	Guide, Rack(For Steering Gear)
45524	45524-32010	Cap, Steering Rack Guide Spring
45535	45535-32070	Boot, Steering Rack, No.1
45535	90467-19019	Clip
9010512266	90105-12266	BOLT WASHER BASED
9010512341	90105-12341	New Genuine Part
9017014012	90170-14012	Nut, Rack End Lock
9017912091	90179-12091	Nut(For Front Suspension Lower Arm)
9090208003	90902-08003	New Genuine Part
9538103020	95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)

OEM	Part name	Category
04445-32081	Gasket Kit, Power Steering Gear(For Rack & Pinion)	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
04455-32061	Gasket Kit, Power Steering Control Valve Overhole	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
40120-32310	Gear Assy,power Steering,rebuilt	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
44200-32320	Gear Assy, Power Steering(For Rack & Pinion)	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
44200-32330	Gear Assy, Power Steering(For Rack & Pinion)	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
44201-32190	Valve Sub-Assy, Power Steering Control	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
44201-32200	Valve Sub-Assy, Power Steering Control	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
44203-32150	Housing Sub-Assy, Power Steering Rack	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
44204-32080	Rack Sub-Assy, Power Steering	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
44237-12010	Seat, Pressure Control Valve Orifice	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
44275-32040	Stopper, Cylinder End	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
44283-32020	Cap, Rack Housing	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
44418-32110	Tube, Steering Right Turn Pressure	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
44419-32120	Tube, Steering Left Turn Pressure	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
45046-49085	End Sub-Assy, Tie Rod, Rh	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
45047-49015	End Sub-Assy, Tie Rod, Rh	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
45053-32010	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
45503-39175	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
45524-32010	Cap, Steering Rack Guide Spring	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
45535-32070	Boot, Steering Rack, No.1	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
90105-12266	BOLT WASHER BASED	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
90105-12341	New Genuine Part	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
90170-14012	Nut, Rack End Lock	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
90171-12028	Nut, Castle(For Pitman Arm)	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
90179-12091	Nut(For Front Suspension Lower Arm)	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
90179-30007	Nut(For Bearing Guide Nut)	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
90214-14002	Washer, Claw(For Power Steering Rack End)	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
90301-33014	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
90301-49008	Ring, O(For Adjuster Plug)	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
90310-25028	Seal, Oil(For Cylinder End Stopper)	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
90310-25030	Seal, Oil, No.1(For Power Steering Cylinder Tube)	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
90310-25032	Seal, Oil(For Power Steering Rack Housing)	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
90311-20008	Seal, Oil(For Rack Housing Cap)	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
90363-30078	Bearing(For Power Steering Control Valve)	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
90410-06002	Seat, Union(For Power Steering Control Valve)	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
90467-19019	Clip	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
90521-50002	Ring, Hole Snap(For Cylinder End Stopper)	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
90562-33008	Ring(For Power Steering Control Valve)	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
90562-37006	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
90580-14073	Wire(For Cylinder End Stopper)	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
90902-08003	New Genuine Part	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)
95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)	Front Steering Gear & Link ([06.1998 - ] (9806- )AZV55,SV55)

Source: Public OEM parts-catalog data
Variants: 2 / 8
Category: 185
Collected: 2026-08-04
