AZV55

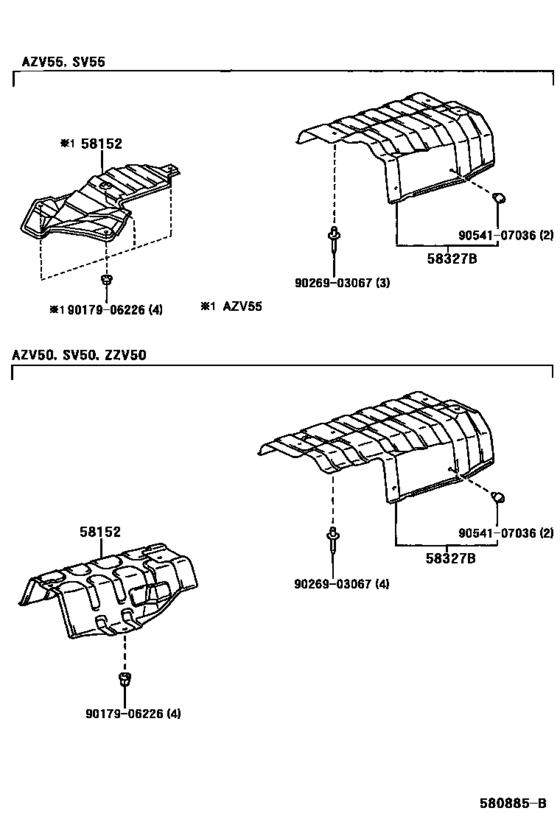

Floor Insulator ([06.1998 - ] (9806- )) 5
| # | OEM | Part name |
|---|---|---|
| 58152 | 58152-32060 | Insulator Sub-Assy, Center Floor Heat, No.2 |
| 58327 | 58327-32070 | Insulator, Main Muffler Heat |
| 9017906226 | 90179-06226 | Nut (For Rear Wiper Arm Setting) |
| 9026903067 | 90269-03067 | RIVET |
| 9054107036 | 90541-07036 | CUSHION |
| OEM | Part name | Category |
|---|---|---|
| 58152-32060 | Insulator Sub-Assy, Center Floor Heat, No.2 | Floor Insulator ([06.1998 - ] (9806- )) |
| 58327-32070 | Insulator, Main Muffler Heat | Floor Insulator ([06.1998 - ] (9806- )) |
| 90179-06226 | Nut (For Rear Wiper Arm Setting) | Floor Insulator ([06.1998 - ] (9806- )) |
| 90269-03067 | RIVET | Floor Insulator ([06.1998 - ] (9806- )) |
| 90541-07036 | CUSHION | Floor Insulator ([06.1998 - ] (9806- )) |
