Search › Model › AZT270
AZT270
Standard Tool ([11.2008 - ] (0811- )) 12

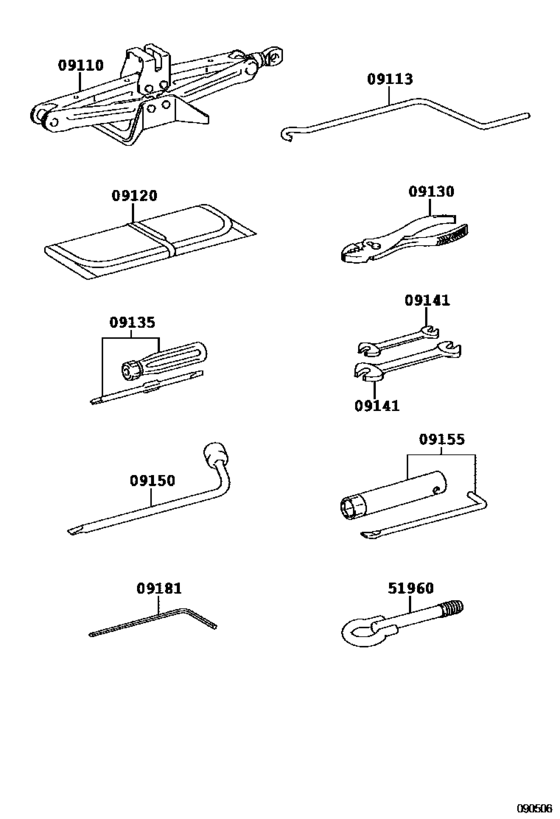

| # | OEM | Part name |
|---|---|---|
| 9110 | 09111-05050 | Jack Assy |
| 9110 | 09111-0F020 | Jack Assy |
| 9113 | 09113-05020 | Handle, Jack |
| 9120 | 09120-05040 | Bag, Tool |
| 9130 | 90080-99009 | Pliers |
| 9135 | 90080-99008 | Driver, Screw |
| 9141 | 90080-99010 | Spanner |
| 9141 | 90080-99011 | Spanner |
| 9150 | 09150-05011 | Wrench, Hub Nut Box |
| 9155 | 09155-02020 | Wrench, Spark Plug |
| 9181 | 09181-05010 | Rod, Parking Brake Release |
| 51960 | 51960-05010 | Hook Assy, Front |
| OEM | Part name | Category |
|---|---|---|
| 09111-05050 | Jack Assy | Standard Tool ([11.2008 - ] (0811- )) |
| 09111-0F020 | Jack Assy | Standard Tool ([11.2008 - ] (0811- )) |
| 09113-05020 | Handle, Jack | Standard Tool ([11.2008 - ] (0811- )) |
| 09120-05040 | Bag, Tool | Standard Tool ([11.2008 - ] (0811- )) |
| 09150-05011 | Wrench, Hub Nut Box | Standard Tool ([11.2008 - ] (0811- )) |
| 09155-02020 | Wrench, Spark Plug | Standard Tool ([11.2008 - ] (0811- )) |
| 09181-05010 | Rod, Parking Brake Release | Standard Tool ([11.2008 - ] (0811- )) |
| 51960-05010 | Hook Assy, Front | Standard Tool ([11.2008 - ] (0811- )) |
| 90080-99008 | Driver, Screw | Standard Tool ([11.2008 - ] (0811- )) |
| 90080-99009 | Pliers | Standard Tool ([11.2008 - ] (0811- )) |
| 90080-99010 | Spanner | Standard Tool ([11.2008 - ] (0811- )) |
| 90080-99011 | Spanner | Standard Tool ([11.2008 - ] (0811- )) |
