Search › Model › AZT270

AZT270

Toyota AVENSIS · 2008 · 3,340 parts · 182 categories

3,340 items

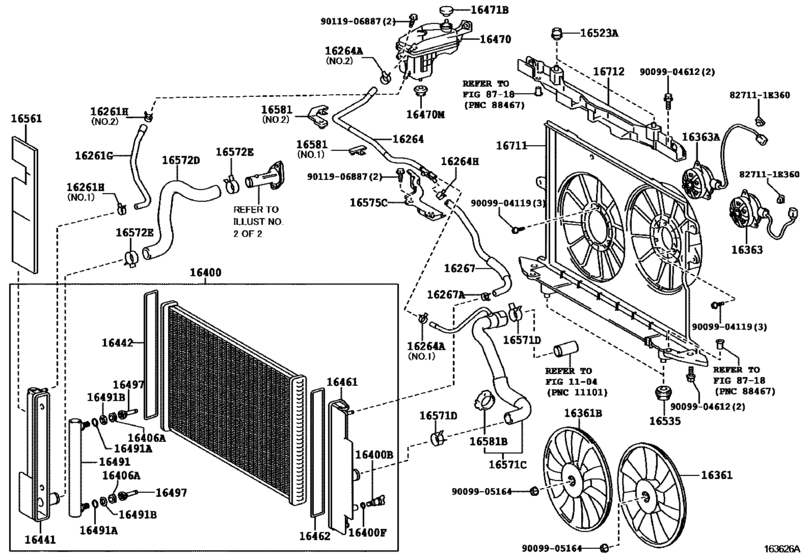

Radiator & Water Outlet ([11.2008 - ] (0811- )) 57

#	OEM	Part name
0	82711-1E360	Clamp, Wiring Harness
16258	16258-28030	Gasket(For Heater Return)
16261	16261-0H090	Hose, Water By-Pass, No.1
16261	96136-52201	Clip(For Ventilation Hose No.2)
16261	96136-52501	Clip(For Water By-Pass Hose No.1)
16261	16261-28100	Hose, Water By-Pass
16261	96135-51300	Clamp, Hose
16264	16264-0D140	Hose, Water By-Pass, No.2
16264	96136-51901	Clip(For Water By-Pass Hose No.2)
16264	96136-52101	Clip(For Ventilation Hose)
16264	90467-15022	Clip Or Clamp(For Ventilation Hose)
16264	16264-28120	Hose, Water By-Pass, No.2
16267	16267-28110	Hose, Water By-Pass, No.3
16268	16268-28010	Pipe, Water By-Pass, No.1
16321	16321-28020	Inlet, Water
16325	16325-28010	Gasket, Water Inlet Housing, No.1
16331	90916-03136	Thermostat
16361	16361-28350	Fan
16361	16361-28360	Fan, No.2
16363	16363-28390	Motor, Cooling Fan
16363	16363-28400	Motor, Cooling Fan, No.2
16400	16400-28660	Radiator Assy
16400	16400-28661	Radiator Assy
16400	16417-21280	Cock Sub-Assy, Radiator Drain
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16406	16406-62060	Support(For Oil Cooler)
16441	16441-28660	Tank, Radiator, Upper
16442	16462-6A300	Ring, O(For Radiator Upper Tank)
16461	16461-28660	Tank, Radiator, Lower
16470	16480-0D030	Tank Assy, Radiator Reserve
16470	90480-18010	Grommet, Radiator Reserve Tank Hose
16471	16475-51010	Cap Sub-Assy, Radiator Reserve Tank
16471	16475-28140	Cap Sub-Assy, Radiator Reserve Tank
16491	16491-28660	Cooler, Oil(For Atm)
16491	16492-50020	Ring, O(For Atm Oil Cooler)
16491	16493-62060	Washer, Plate(For Atm Oil Cooler)
16497	16495-50020	Nut, Flare(For Atm Oil Cooler)
16523	16523-0D040	Cushion, Radiator Support
16535	16535-0D080	Support, Radiator, Lower
16561	16561-22030	Seal, Radiator To Support, No.1
16571	16571-28330	Hose, Radiator, No.1
16571	96136-44301	Clamp Or Clip, Hose(For Radiator Inlet)
16572	16572-28240	Hose, Radiator, Outlet
16575	16575-22020	Bracket, Water Hose Clamp, No.1
16581	16581-22110	Clamp, Hose(For Water Hose)
16581	16581-22120	Clamp, Hose(For Water Hose)
16581	16581-28070	Clamp, Hose(For Water Hose)
16711	16711-28400	Shroud, Fan
16712	16712-28120	Shroud, Fan, No.2
91631	91631-G0614	BOT WWASHER
9009904119	90099-04119	BOLT WASHER HEAD
9009904612	90099-04612	Bolt
9009905164	90099-05164	Nut
9011606127	90116-06127	Bolt, Stud(For Oil Pan)
9011906887	90119-06887	New Genuine Part
9012606024	90126-06024	STUD HEX LOBULAR
9415080640	94150-80640	NUT FLANGE

OEM	Part name	Category
16258-28030	Gasket(For Heater Return)	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16261-0H090	Hose, Water By-Pass, No.1	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16261-28100	Hose, Water By-Pass	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16264-0D140	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16264-28120	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16267-28110	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16268-28010	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16321-28020	Inlet, Water	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16325-28010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16361-28350	Fan	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16361-28360	Fan, No.2	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16363-28390	Motor, Cooling Fan	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16363-28400	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16400-28660	Radiator Assy	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16400-28661	Radiator Assy	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16406-62060	Support(For Oil Cooler)	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16417-21280	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16441-28660	Tank, Radiator, Upper	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16461-28660	Tank, Radiator, Lower	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16462-6A300	Ring, O(For Radiator Upper Tank)	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16475-28140	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16475-51010	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16480-0D030	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16491-28660	Cooler, Oil(For Atm)	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16492-50020	Ring, O(For Atm Oil Cooler)	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16493-62060	Washer, Plate(For Atm Oil Cooler)	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16495-50020	Nut, Flare(For Atm Oil Cooler)	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16523-0D040	Cushion, Radiator Support	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16535-0D080	Support, Radiator, Lower	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16561-22030	Seal, Radiator To Support, No.1	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16571-28330	Hose, Radiator, No.1	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16572-28240	Hose, Radiator, Outlet	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16575-22020	Bracket, Water Hose Clamp, No.1	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16581-22110	Clamp, Hose(For Water Hose)	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16581-22120	Clamp, Hose(For Water Hose)	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16581-28070	Clamp, Hose(For Water Hose)	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16711-28400	Shroud, Fan	Radiator & Water Outlet ([11.2008 - ] (0811- ))
16712-28120	Shroud, Fan, No.2	Radiator & Water Outlet ([11.2008 - ] (0811- ))
82711-1E360	Clamp, Wiring Harness	Radiator & Water Outlet ([11.2008 - ] (0811- ))
90099-04119	BOLT WASHER HEAD	Radiator & Water Outlet ([11.2008 - ] (0811- ))
90099-04612	Bolt	Radiator & Water Outlet ([11.2008 - ] (0811- ))
90099-05164	Nut	Radiator & Water Outlet ([11.2008 - ] (0811- ))
90116-06127	Bolt, Stud(For Oil Pan)	Radiator & Water Outlet ([11.2008 - ] (0811- ))
90119-06887	New Genuine Part	Radiator & Water Outlet ([11.2008 - ] (0811- ))
90126-06024	STUD HEX LOBULAR	Radiator & Water Outlet ([11.2008 - ] (0811- ))
90467-15022	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([11.2008 - ] (0811- ))
90480-18010	Grommet, Radiator Reserve Tank Hose	Radiator & Water Outlet ([11.2008 - ] (0811- ))
90916-03136	Thermostat	Radiator & Water Outlet ([11.2008 - ] (0811- ))
91631-G0614	BOT WWASHER	Radiator & Water Outlet ([11.2008 - ] (0811- ))
94150-80640	NUT FLANGE	Radiator & Water Outlet ([11.2008 - ] (0811- ))
96135-51300	Clamp, Hose	Radiator & Water Outlet ([11.2008 - ] (0811- ))
96136-44301	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([11.2008 - ] (0811- ))
96136-51901	Clip(For Water By-Pass Hose No.2)	Radiator & Water Outlet ([11.2008 - ] (0811- ))
96136-52101	Clip(For Ventilation Hose)	Radiator & Water Outlet ([11.2008 - ] (0811- ))
96136-52201	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([11.2008 - ] (0811- ))
96136-52501	Clip(For Water By-Pass Hose No.1)	Radiator & Water Outlet ([11.2008 - ] (0811- ))
