Search › Model › AZT270
AZT270

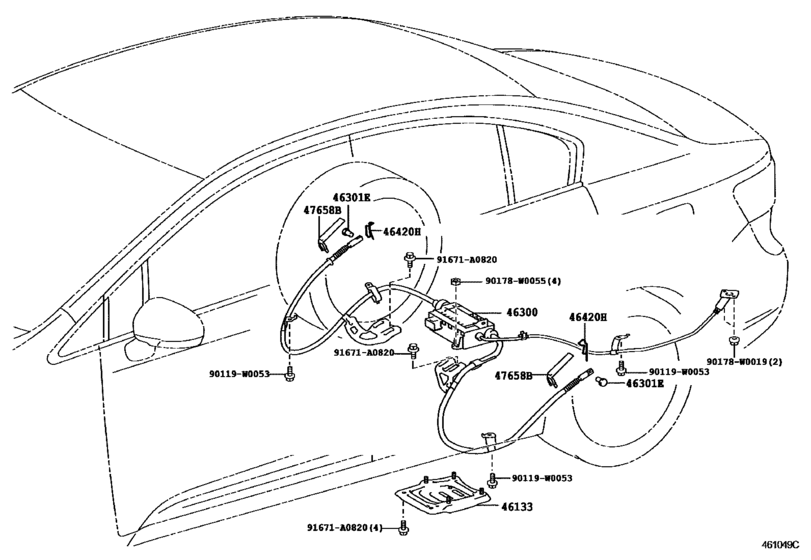

Parking Brake & Cable ([11.2008 - ] (0811- )) 10
| # | OEM | Part name |
|---|---|---|
| 46133 | 46133-05010 | Bracket, Parking Brake Actuator Support |
| 46300 | 46300-05020 | Actuator Assy, Parking Brake W/bracket |
| 46301 | 90240-08059 | Pin, W/hole(For Intermediate Lever) |
| 46420 | 90468-14011 | Clip, No.2(For Parking Brake) |
| 46420 | 90468-14017 | Clip, No.2(For Parking Brake) |
| 47658 | 47658-05010 | Protector, Parking Brake Lever |
| 90119 | 90119-W0053 | New Genuine Part |
| 90178 | 90178-W0019 | Nut, Cap(For Cylinder Head Cover) |
| 90178 | 90178-W0055 | New Genuine Part |
| 91671 | 91671-A0820 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 46133-05010 | Bracket, Parking Brake Actuator Support | Parking Brake & Cable ([11.2008 - ] (0811- )) |
| 46300-05020 | Actuator Assy, Parking Brake W/bracket | Parking Brake & Cable ([11.2008 - ] (0811- )) |
| 47658-05010 | Protector, Parking Brake Lever | Parking Brake & Cable ([11.2008 - ] (0811- )) |
| 90119-W0053 | New Genuine Part | Parking Brake & Cable ([11.2008 - ] (0811- )) |
| 90178-W0019 | Nut, Cap(For Cylinder Head Cover) | Parking Brake & Cable ([11.2008 - ] (0811- )) |
| 90178-W0055 | New Genuine Part | Parking Brake & Cable ([11.2008 - ] (0811- )) |
| 90240-08059 | Pin, W/hole(For Intermediate Lever) | Parking Brake & Cable ([11.2008 - ] (0811- )) |
| 90468-14011 | Clip, No.2(For Parking Brake) | Parking Brake & Cable ([11.2008 - ] (0811- )) |
| 90468-14017 | Clip, No.2(For Parking Brake) | Parking Brake & Cable ([11.2008 - ] (0811- )) |
| 91671-A0820 | New Genuine Part | Parking Brake & Cable ([11.2008 - ] (0811- )) |
