Search › Model › AZT270
AZT270

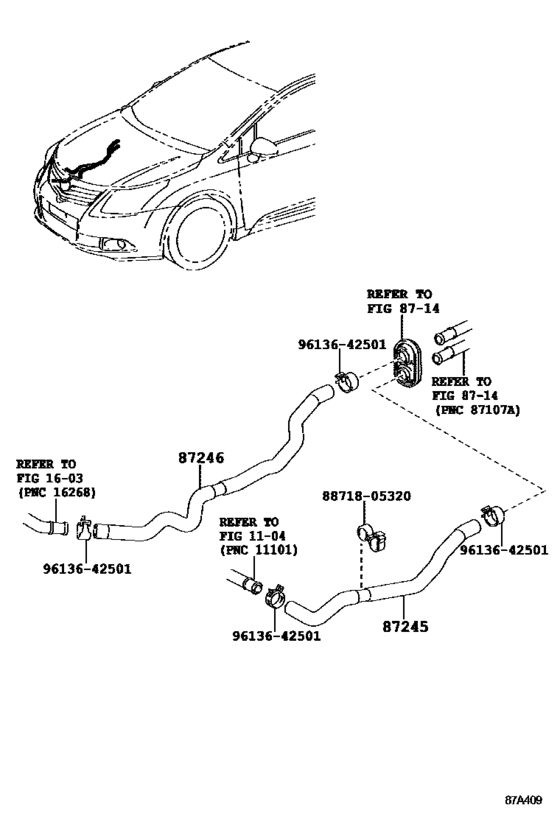

Heating & Air Conditioning - Water Piping ([11.2008 - ] (0811- )) 4
| # | OEM | Part name |
|---|---|---|
| 87245 | 87245-05680 | Hose, Heater Water, Inlet |
| 87246 | 87245-05670 | Hose, Heater Water, Outlet |
| 8871805320 | 88718-05320 | Pipe, Cooler Refrigerant Suction, No.2 |
| 9613642501 | 96136-42501 | Clip(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 87245-05670 | Hose, Heater Water, Outlet | Heating & Air Conditioning - Water Piping ([11.2008 - ] (0811- )) |
| 87245-05680 | Hose, Heater Water, Inlet | Heating & Air Conditioning - Water Piping ([11.2008 - ] (0811- )) |
| 88718-05320 | Pipe, Cooler Refrigerant Suction, No.2 | Heating & Air Conditioning - Water Piping ([11.2008 - ] (0811- )) |
| 96136-42501 | Clip(For Ventilation Hose) | Heating & Air Conditioning - Water Piping ([11.2008 - ] (0811- )) |
