Search › Model › AZT270

AZT270

Toyota AVENSIS · 2008 · 3,340 parts · 182 categories

3,340 items

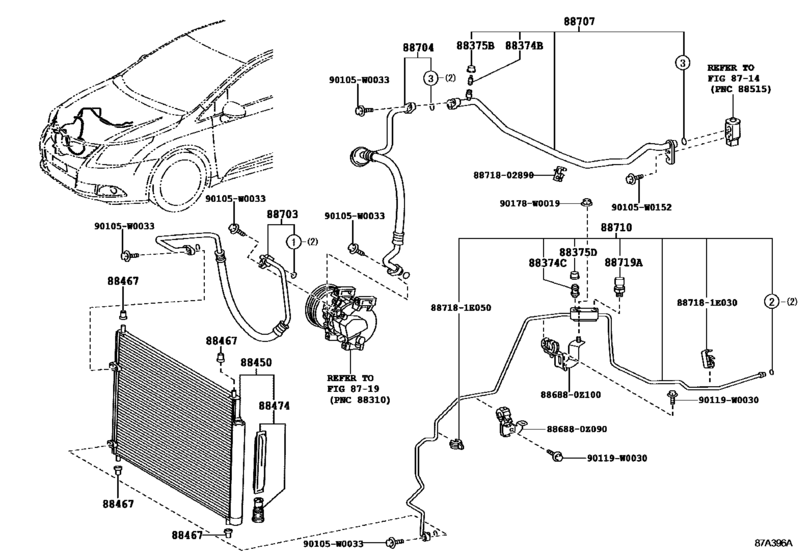

Heating & Air Conditioning - Cooler Piping ([11.2008 - ] (0811- )) 20

#	OEM	Part name
88374	88374-30010	Valve, Service, No.1
88375	88375-30290	Cap, Service Valve (For Cooler Pipe)
88375	88375-30280	Cap, Service Valve (For Cooler Pipe)
88450	88450-12280	Condenser Assy, W/receiver
88467	16716-28010	Cushion, Fan Shroud
88474	88474-12030	Dryer, Cooler
88703	88703-05340	Hose Sub-Assy, Discharge
88704	88704-05370	Hose Sub-Assy, Suction
88707	88707-05070	Pipe Sub-Assy, Suction
88710	88710-05390	Tube Assy, Air Conditioner - AIRCONDITIONER
88719	88719-33020	Sensor, Airconditioner Pressure
90105	90105-W0033	New Genuine Part
90105	90105-W0152	New Genuine Part
90119	90119-W0030	New Genuine Part
90178	90178-W0019	Nut, Cap(For Cylinder Head Cover)
886880	88688-0Z090	Bracket, Cooler Diaphragm
886880	88688-0Z100	Bracket, Cooler Diaphragm
8871802890	88718-02890	Pipe, Cooler Refrigerant Suction, No.2
9223372036854775807	88718-1E030	Pipe, Cooler Refrigerant Suction, No.2
9223372036854775807	88718-1E050	Clamp, Piping

OEM	Part name	Category
16716-28010	Cushion, Fan Shroud	Heating & Air Conditioning - Cooler Piping ([11.2008 - ] (0811- ))
88374-30010	Valve, Service, No.1	Heating & Air Conditioning - Cooler Piping ([11.2008 - ] (0811- ))
88375-30280	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([11.2008 - ] (0811- ))
88375-30290	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([11.2008 - ] (0811- ))
88450-12280	Condenser Assy, W/receiver	Heating & Air Conditioning - Cooler Piping ([11.2008 - ] (0811- ))
88474-12030	Dryer, Cooler	Heating & Air Conditioning - Cooler Piping ([11.2008 - ] (0811- ))
88688-0Z090	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([11.2008 - ] (0811- ))
88688-0Z100	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([11.2008 - ] (0811- ))
88703-05340	Hose Sub-Assy, Discharge	Heating & Air Conditioning - Cooler Piping ([11.2008 - ] (0811- ))
88704-05370	Hose Sub-Assy, Suction	Heating & Air Conditioning - Cooler Piping ([11.2008 - ] (0811- ))
88707-05070	Pipe Sub-Assy, Suction	Heating & Air Conditioning - Cooler Piping ([11.2008 - ] (0811- ))
88710-05390	Tube Assy, Air Conditioner - AIRCONDITIONER	Heating & Air Conditioning - Cooler Piping ([11.2008 - ] (0811- ))
88718-02890	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([11.2008 - ] (0811- ))
88718-1E030	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([11.2008 - ] (0811- ))
88718-1E050	Clamp, Piping	Heating & Air Conditioning - Cooler Piping ([11.2008 - ] (0811- ))
88719-33020	Sensor, Airconditioner Pressure	Heating & Air Conditioning - Cooler Piping ([11.2008 - ] (0811- ))
90105-W0033	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.2008 - ] (0811- ))
90105-W0152	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.2008 - ] (0811- ))
90119-W0030	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.2008 - ] (0811- ))
90178-W0019	Nut, Cap(For Cylinder Head Cover)	Heating & Air Conditioning - Cooler Piping ([11.2008 - ] (0811- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 182
Collected: 2026-08-02
