Search › Model › AZT270

AZT270

Toyota AVENSIS · 2008 · 3,340 parts · 182 categories

3,340 items

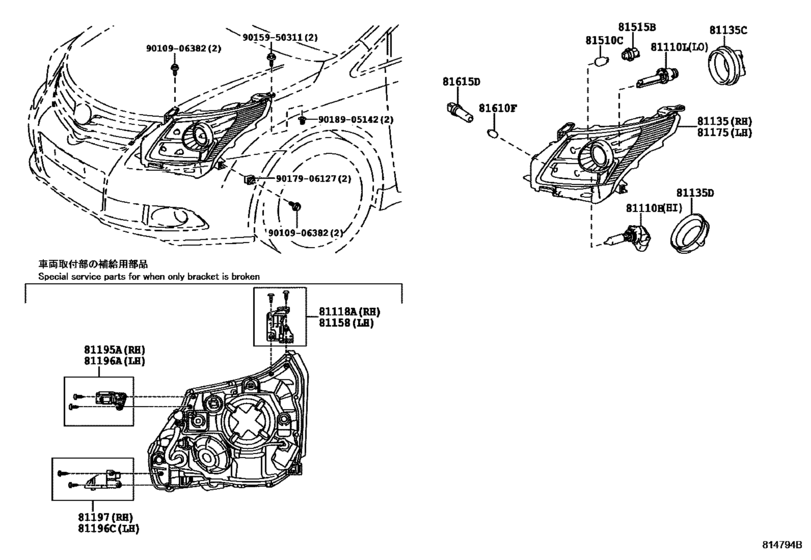

Headlamp ([11.2008 - 04.2011] (0811-1104)) 31

#	OEM	Part name
81110	90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)
81110	90981-20021	Bulb, Discharge Headlamp
81110	90981-20024	Bulb, Discharge Headlamp
81118	81118-05310	Bracket, Headlamp, Rh
81135	81140-05320	Unit Assy, Headlamp, Rh
81135	81140-05322	Unit Assy, Headlamp, Rh
81135	81125-05330	Cord, Headlamp
81135	81140-05321	Unit Assy, Headlamp, Rh
81135	81135-05330	Cover, Headlamp Back, No.1
81135	81135-05320	Cover, Headlamp Back, No.2
81135	81140-05330	Unit Assy, Headlamp, Rh
81135	81140-05332	Unit Assy, Headlamp, Rh
81135	81140-05331	Unit Assy, Headlamp, Rh
81158	81158-05310	Bracket, Headlamp, Lh
81175	81070-05320	Unit Assy, Headlamp, Lh
81175	81070-05321	Unit Assy, Headlamp, Lh
81175	81070-05330	Unit Assy, Headlamp, Lh
81175	81070-05331	Unit Assy, Headlamp, Lh
81195	81193-05030	Retainer, Headlamp Protector, Lower Rh - HEADLAMP PROTECTOR, LWR RH
81196	81194-05030	Retainer, Headlamp Protector, Lower Lh - HEADLAMP PROTECTOR, LWR LH
81196	81196-05020	Retainer, Lh Headlamp Protector, Lower Lh - LH HEADLAMP PROTECTOR, LWR LH
81197	81195-05020	Bracket, Headlamp, Lower Rh - HEADLAMP, LWR RH
81510	90981-15011	Bulb (For Turn Signal Lamp) 12V 21W, AMBER
81515	90075-60028	Socket, Headlamp, Bulb
81610	90981-WB006	Bulb(For Clearance Lamp)
81615	90075-60077	Clearance Lamp Socket
9010906382	90109-06382	BOLT
9015950311	90159-50311	SCREW
9015950311	90159-A0034	SCREW WWASHER
9017906127	90179-06127	Bracket, Front Licence Plate Mounting
9018905142	90189-05142	GROMMET, SCREW

OEM	Part name	Category
81070-05320	Unit Assy, Headlamp, Lh	Headlamp ([11.2008 - 04.2011] (0811-1104))
81070-05321	Unit Assy, Headlamp, Lh	Headlamp ([11.2008 - 04.2011] (0811-1104))
81070-05330	Unit Assy, Headlamp, Lh	Headlamp ([11.2008 - 04.2011] (0811-1104))
81070-05331	Unit Assy, Headlamp, Lh	Headlamp ([11.2008 - 04.2011] (0811-1104))
81118-05310	Bracket, Headlamp, Rh	Headlamp ([11.2008 - 04.2011] (0811-1104))
81125-05330	Cord, Headlamp	Headlamp ([11.2008 - 04.2011] (0811-1104))
81135-05320	Cover, Headlamp Back, No.2	Headlamp ([11.2008 - 04.2011] (0811-1104))
81135-05330	Cover, Headlamp Back, No.1	Headlamp ([11.2008 - 04.2011] (0811-1104))
81140-05320	Unit Assy, Headlamp, Rh	Headlamp ([11.2008 - 04.2011] (0811-1104))
81140-05321	Unit Assy, Headlamp, Rh	Headlamp ([11.2008 - 04.2011] (0811-1104))
81140-05322	Unit Assy, Headlamp, Rh	Headlamp ([11.2008 - 04.2011] (0811-1104))
81140-05330	Unit Assy, Headlamp, Rh	Headlamp ([11.2008 - 04.2011] (0811-1104))
81140-05331	Unit Assy, Headlamp, Rh	Headlamp ([11.2008 - 04.2011] (0811-1104))
81140-05332	Unit Assy, Headlamp, Rh	Headlamp ([11.2008 - 04.2011] (0811-1104))
81158-05310	Bracket, Headlamp, Lh	Headlamp ([11.2008 - 04.2011] (0811-1104))
81193-05030	Retainer, Headlamp Protector, Lower Rh - HEADLAMP PROTECTOR, LWR RH	Headlamp ([11.2008 - 04.2011] (0811-1104))
81194-05030	Retainer, Headlamp Protector, Lower Lh - HEADLAMP PROTECTOR, LWR LH	Headlamp ([11.2008 - 04.2011] (0811-1104))
81195-05020	Bracket, Headlamp, Lower Rh - HEADLAMP, LWR RH	Headlamp ([11.2008 - 04.2011] (0811-1104))
81196-05020	Retainer, Lh Headlamp Protector, Lower Lh - LH HEADLAMP PROTECTOR, LWR LH	Headlamp ([11.2008 - 04.2011] (0811-1104))
90075-60028	Socket, Headlamp, Bulb	Headlamp ([11.2008 - 04.2011] (0811-1104))
90075-60077	Clearance Lamp Socket	Headlamp ([11.2008 - 04.2011] (0811-1104))
90109-06382	BOLT	Headlamp ([11.2008 - 04.2011] (0811-1104))
90159-50311	SCREW	Headlamp ([11.2008 - 04.2011] (0811-1104))
90159-A0034	SCREW WWASHER	Headlamp ([11.2008 - 04.2011] (0811-1104))
90179-06127	Bracket, Front Licence Plate Mounting	Headlamp ([11.2008 - 04.2011] (0811-1104))
90189-05142	GROMMET, SCREW	Headlamp ([11.2008 - 04.2011] (0811-1104))
90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)	Headlamp ([11.2008 - 04.2011] (0811-1104))
90981-15011	Bulb (For Turn Signal Lamp) 12V 21W, AMBER	Headlamp ([11.2008 - 04.2011] (0811-1104))
90981-20021	Bulb, Discharge Headlamp	Headlamp ([11.2008 - 04.2011] (0811-1104))
90981-20024	Bulb, Discharge Headlamp	Headlamp ([11.2008 - 04.2011] (0811-1104))
90981-WB006	Bulb(For Clearance Lamp)	Headlamp ([11.2008 - 04.2011] (0811-1104))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 182
Collected: 2026-08-02
