AZT270

Toyota AVENSIS · 2008 · 3,340 parts · 182 categories

3,340 items

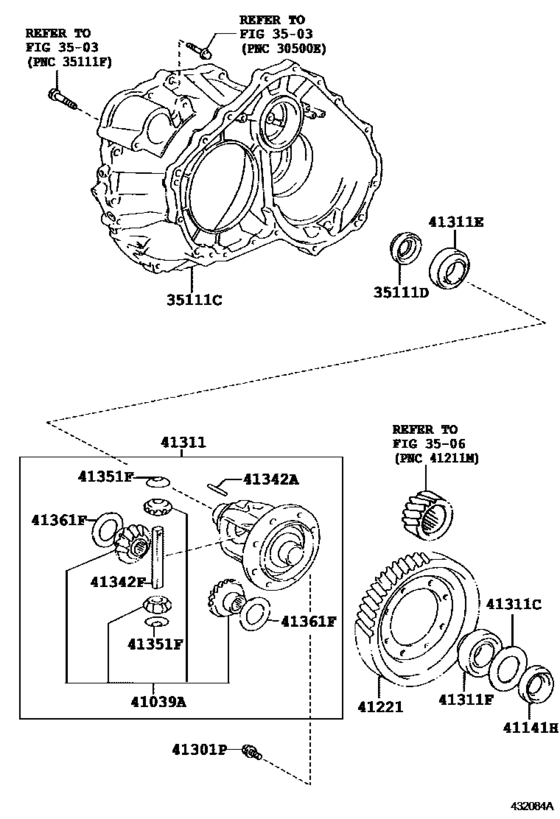

Front Axle Housing & Differential ([11.2008 - ] U241E (0811- )) 42

#	OEM	Part name
35111	35105-44061	Housing, Transaxle
35111	35105-28032	Housing, Transaxle
35111	82715-33J60	Bracket,wiring Harness Clamp
35111	90105-08353	Bolt(For Head To Camshaft Bearing Cap)
35111	90311-40031	Oil Seal, Front Drive Shaft, Rh
41039	41039-28020	Gear Kit, Differential
41141	90311-50033	Oil Seal, Front Drive Shaft, Lh
41141	90311-50045	Oil Seal, Front Drive Shaft, Lh
41141	90311-50064	SEAL TYPE T OIL
41221	41221-44010	Gear, Front Differential Ring
41221	41211-28H03	Pinion, Differential Drive
41301	90105-12303	Bolt (For Front Differential Ring Gear Set)
41311	41301-33110	Case, Front Differential
41311	41301-28090	Case, Front Differential
41311	90564-68006	Shim (For Front Differential Case Rear)
41311	90564-68007	Shim (For Front Differential Case Rear)
41311	90564-68008	Shim (For Front Differential Case Rear)
41311	90564-68009	Shim (For Front Differential Case Rear)
41311	90564-68010	Shim (For Front Differential Case Rear)
41311	90564-68011	Shim (For Front Differential Case Rear)
41311	90564-68012	Shim (For Front Differential Case Rear)
41311	90564-68013	Shim (For Front Differential Case Rear)
41311	90564-68014	Shim (For Front Differential Case Rear)
41311	90564-68015	Shim (For Front Differential Case Rear)
41311	90564-68016	Shim (For Front Differential Case Rear)
41311	90564-68017	Shim (For Front Differential Case Rear)
41311	90564-68018	Shim (For Front Differential Case Rear)
41311	90564-68019	Shim (For Front Differential Case Rear)
41311	90564-68020	Shim (For Front Differential Case Rear)
41311	90564-68021	Shim (For Front Differential Case Rear)
41311	90564-68022	Shim (For Front Differential Case Rear)
41311	90564-68023	Shim (For Front Differential Case Rear)
41311	90564-68024	Shim (For Front Differential Case Rear)
41311	90366-50084	Bearing, Tapered Roller (For Front Differential Case Front)
41311	90366-50078	Bearing, Tapered Roller (For Front Differential Case Rear)
41342	90250-06058	Pin, Straight(For Timing Gear Case)
41342	41342-33040	Shaft, Front Differential Pinion, No.1
41351	41351-28010	Washer, Front Differential Pinion Thrust
41361	41361-28230	Washer, Front Differential Side Gear Thrust, No.1
41361	41361-28240	Washer, Front Differential Side Gear Thrust, No.1
41361	41361-28250	Washer, Front Differential Side Gear Thrust, No.1
41361	41361-28260	Washer, Front Differential Side Gear Thrust, No.1

OEM	Part name	Category
35105-28032	Housing, Transaxle	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
35105-44061	Housing, Transaxle	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
41039-28020	Gear Kit, Differential	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
41211-28H03	Pinion, Differential Drive	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
41221-44010	Gear, Front Differential Ring	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
41301-28090	Case, Front Differential	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
41301-33110	Case, Front Differential	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
41342-33040	Shaft, Front Differential Pinion, No.1	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
41351-28010	Washer, Front Differential Pinion Thrust	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
41361-28230	Washer, Front Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
41361-28240	Washer, Front Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
41361-28250	Washer, Front Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
41361-28260	Washer, Front Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
82715-33J60	Bracket,wiring Harness Clamp	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90105-08353	Bolt(For Head To Camshaft Bearing Cap)	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90105-12303	Bolt (For Front Differential Ring Gear Set)	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90250-06058	Pin, Straight(For Timing Gear Case)	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90311-40031	Oil Seal, Front Drive Shaft, Rh	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90311-50033	Oil Seal, Front Drive Shaft, Lh	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90311-50045	Oil Seal, Front Drive Shaft, Lh	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90311-50064	SEAL TYPE T OIL	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90366-50078	Bearing, Tapered Roller (For Front Differential Case Rear)	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90366-50084	Bearing, Tapered Roller (For Front Differential Case Front)	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90564-68006	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90564-68007	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90564-68008	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90564-68009	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90564-68010	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90564-68011	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90564-68012	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90564-68013	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90564-68014	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90564-68015	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90564-68016	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90564-68017	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90564-68018	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90564-68019	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90564-68020	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90564-68021	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90564-68022	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90564-68023	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
90564-68024	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([11.2008 - ] U241E (0811- ))
