AZT270

Toyota AVENSIS · 2008 · 3,340 parts · 182 categories

← Back to categories

3,340 items

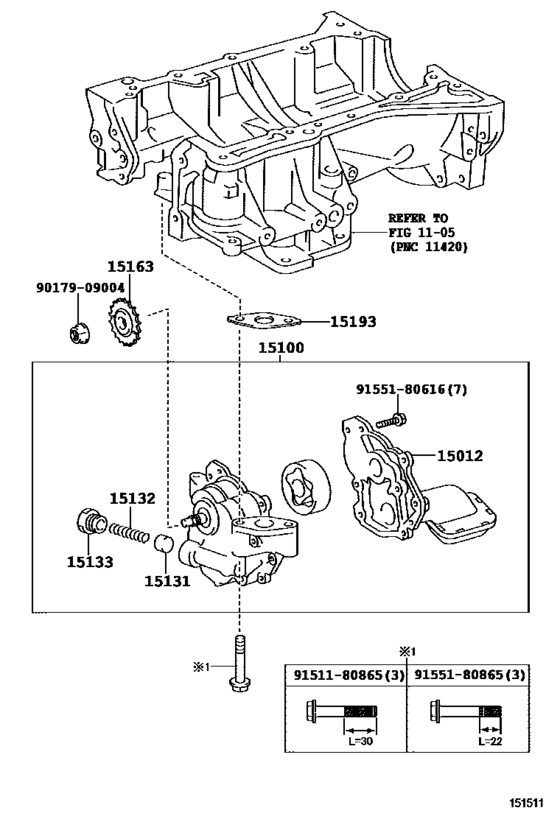

Engine Oil Pump ([11.2008 - ] (0811- )) 11

#	OEM	Part name
15012	15012-28030	Cover Sub-Assy, Oil Pump
15100	15100-28030	Pump Assy, Oil
15131	15131-46040	Valve, Oil Pump Relief
15132	15132-46020	Spring, Oil Pump Relief Valve
15133	15133-28020	Plug, Oil Pump Relief Valve
15163	15163-28010	Gear, Oil Pump Drive Shaft
15193	15193-28010	Gasket, Oil Pump
9017909004	90179-09004	NUT
9151180865	91511-80865	Bolt(For Cylinder Head Set Sub)
9155180616	91551-80616	BOLT FLANGE
9155180865	91551-80865	Shaft, Clutch Pedal

OEM	Part name	Category
15012-28030	Cover Sub-Assy, Oil Pump	Engine Oil Pump ([11.2008 - ] (0811- ))
15100-28030	Pump Assy, Oil	Engine Oil Pump ([11.2008 - ] (0811- ))
15131-46040	Valve, Oil Pump Relief	Engine Oil Pump ([11.2008 - ] (0811- ))
15132-46020	Spring, Oil Pump Relief Valve	Engine Oil Pump ([11.2008 - ] (0811- ))
15133-28020	Plug, Oil Pump Relief Valve	Engine Oil Pump ([11.2008 - ] (0811- ))
15163-28010	Gear, Oil Pump Drive Shaft	Engine Oil Pump ([11.2008 - ] (0811- ))
15193-28010	Gasket, Oil Pump	Engine Oil Pump ([11.2008 - ] (0811- ))
90179-09004	NUT	Engine Oil Pump ([11.2008 - ] (0811- ))
91511-80865	Bolt(For Cylinder Head Set Sub)	Engine Oil Pump ([11.2008 - ] (0811- ))
91551-80616	BOLT FLANGE	Engine Oil Pump ([11.2008 - ] (0811- ))
91551-80865	Shaft, Clutch Pedal	Engine Oil Pump ([11.2008 - ] (0811- ))

Source: Public OEM parts-catalog data
