Search › Model › AZT270

AZT270

Toyota AVENSIS · 2008 · 3,340 parts · 182 categories

3,340 items

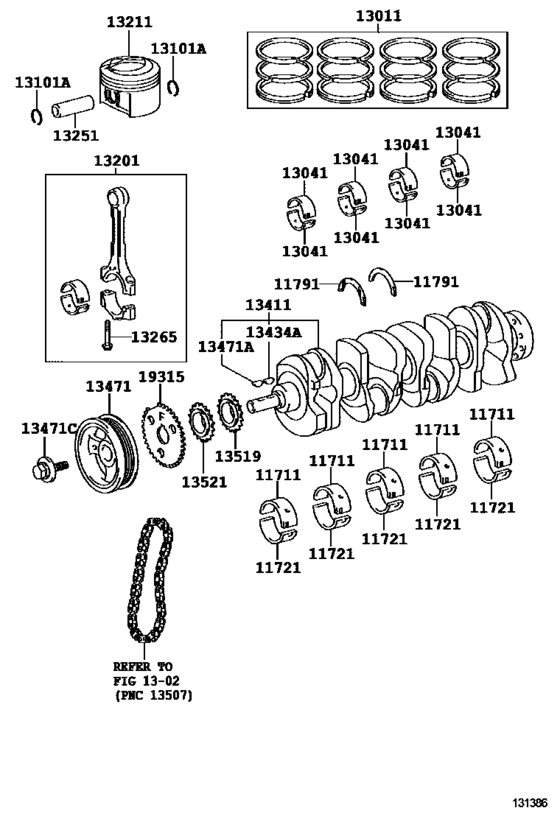

Crankshaft & Piston ([11.2008 - ] (0811- )) 38

#	OEM	Part name
11711	11711-28021-01	Bearing, Crankshaft
11711	11711-28021-02	Bearing, Crankshaft
11711	11711-28021-03	Bearing, Crankshaft
11711	11711-28021-04	Bearing, Crankshaft
11721	11721-28021-01	Bearing, Crankshaft, No.2
11721	11721-28021-02	Bearing, Crankshaft, No.2
11721	11721-28021-03	Bearing, Crankshaft, No.2
11721	11721-28021-04	Bearing, Crankshaft, No.2
11791	11791-28020	Washer, Crankshaft Thrust, Upper
13011	13011-28130	Ring Set, Piston
13041	13281-28011-01	Bearing, Connecting Rod
13041	13281-28011-02	Bearing, Connecting Rod
13041	13281-28011-03	Bearing, Connecting Rod
13101	90520-22025	Ring, Hole Snap(For Piston Pin)
13201	13201-09790-A0	Rod Sub-Assy, Connecting
13201	13201-29686-A0	Rod Sub-Assy, Connecting
13201	13201-09790-B0	Rod Sub-Assy, Connecting
13201	13201-29686-B0	Rod Sub-Assy, Connecting
13201	13201-09790-C0	Rod Sub-Assy, Connecting
13201	13201-29686-C0	Rod Sub-Assy, Connecting
13201	13201-09791-A0	Rod Sub-Assy, Connecting
13201	13201-09791-B0	Rod Sub-Assy, Connecting
13201	13201-09791-C0	Rod Sub-Assy, Connecting
13211	13211-28070-A0	Piston
13211	13211-28070-B0	Piston
13211	13211-28070-C0	Piston
13251	13251-28020-A0	Pin, Piston
13251	13251-28020-B0	Pin, Piston
13251	13251-28020-C0	Pin, Piston
13265	13265-28010	Bolt, Connecting Rod
13265	13265-28020	BOLT CONNECTING ROD
13411	13411-28040	Crankshaft
13434	95161-30416	Pin, Straight(For Crankshaft)
13471	13470-28020	Pulley, Crankshaft
13471	90119-14106	Bolt(For Crankshaft Pulley Set)
13519	13519-28010	Gear, Oil Pump Drive
13521	13521-28030	Gear Or Sprocket, Crankshaft Timing
19315	19315-28010	Plate, Crank Angle Sensor, No.1

OEM	Part name	Category
11711-28021-01	Bearing, Crankshaft	Crankshaft & Piston ([11.2008 - ] (0811- ))
11711-28021-02	Bearing, Crankshaft	Crankshaft & Piston ([11.2008 - ] (0811- ))
11711-28021-03	Bearing, Crankshaft	Crankshaft & Piston ([11.2008 - ] (0811- ))
11711-28021-04	Bearing, Crankshaft	Crankshaft & Piston ([11.2008 - ] (0811- ))
11721-28021-01	Bearing, Crankshaft, No.2	Crankshaft & Piston ([11.2008 - ] (0811- ))
11721-28021-02	Bearing, Crankshaft, No.2	Crankshaft & Piston ([11.2008 - ] (0811- ))
11721-28021-03	Bearing, Crankshaft, No.2	Crankshaft & Piston ([11.2008 - ] (0811- ))
11721-28021-04	Bearing, Crankshaft, No.2	Crankshaft & Piston ([11.2008 - ] (0811- ))
11791-28020	Washer, Crankshaft Thrust, Upper	Crankshaft & Piston ([11.2008 - ] (0811- ))
13011-28130	Ring Set, Piston	Crankshaft & Piston ([11.2008 - ] (0811- ))
13201-09790-A0	Rod Sub-Assy, Connecting	Crankshaft & Piston ([11.2008 - ] (0811- ))
13201-09790-B0	Rod Sub-Assy, Connecting	Crankshaft & Piston ([11.2008 - ] (0811- ))
13201-09790-C0	Rod Sub-Assy, Connecting	Crankshaft & Piston ([11.2008 - ] (0811- ))
13201-09791-A0	Rod Sub-Assy, Connecting	Crankshaft & Piston ([11.2008 - ] (0811- ))
13201-09791-B0	Rod Sub-Assy, Connecting	Crankshaft & Piston ([11.2008 - ] (0811- ))
13201-09791-C0	Rod Sub-Assy, Connecting	Crankshaft & Piston ([11.2008 - ] (0811- ))
13201-29686-A0	Rod Sub-Assy, Connecting	Crankshaft & Piston ([11.2008 - ] (0811- ))
13201-29686-B0	Rod Sub-Assy, Connecting	Crankshaft & Piston ([11.2008 - ] (0811- ))
13201-29686-C0	Rod Sub-Assy, Connecting	Crankshaft & Piston ([11.2008 - ] (0811- ))
13211-28070-A0	Piston	Crankshaft & Piston ([11.2008 - ] (0811- ))
13211-28070-B0	Piston	Crankshaft & Piston ([11.2008 - ] (0811- ))
13211-28070-C0	Piston	Crankshaft & Piston ([11.2008 - ] (0811- ))
13251-28020-A0	Pin, Piston	Crankshaft & Piston ([11.2008 - ] (0811- ))
13251-28020-B0	Pin, Piston	Crankshaft & Piston ([11.2008 - ] (0811- ))
13251-28020-C0	Pin, Piston	Crankshaft & Piston ([11.2008 - ] (0811- ))
13265-28010	Bolt, Connecting Rod	Crankshaft & Piston ([11.2008 - ] (0811- ))
13265-28020	BOLT CONNECTING ROD	Crankshaft & Piston ([11.2008 - ] (0811- ))
13281-28011-01	Bearing, Connecting Rod	Crankshaft & Piston ([11.2008 - ] (0811- ))
13281-28011-02	Bearing, Connecting Rod	Crankshaft & Piston ([11.2008 - ] (0811- ))
13281-28011-03	Bearing, Connecting Rod	Crankshaft & Piston ([11.2008 - ] (0811- ))
13411-28040	Crankshaft	Crankshaft & Piston ([11.2008 - ] (0811- ))
13470-28020	Pulley, Crankshaft	Crankshaft & Piston ([11.2008 - ] (0811- ))
13519-28010	Gear, Oil Pump Drive	Crankshaft & Piston ([11.2008 - ] (0811- ))
13521-28030	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([11.2008 - ] (0811- ))
19315-28010	Plate, Crank Angle Sensor, No.1	Crankshaft & Piston ([11.2008 - ] (0811- ))
90119-14106	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([11.2008 - ] (0811- ))
90520-22025	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([11.2008 - ] (0811- ))
95161-30416	Pin, Straight(For Crankshaft)	Crankshaft & Piston ([11.2008 - ] (0811- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 182
Collected: 2026-08-02
