Search › Model › AZT270

AZT270

Toyota AVENSIS · 2008 · 3,340 parts · 182 categories

3,340 items

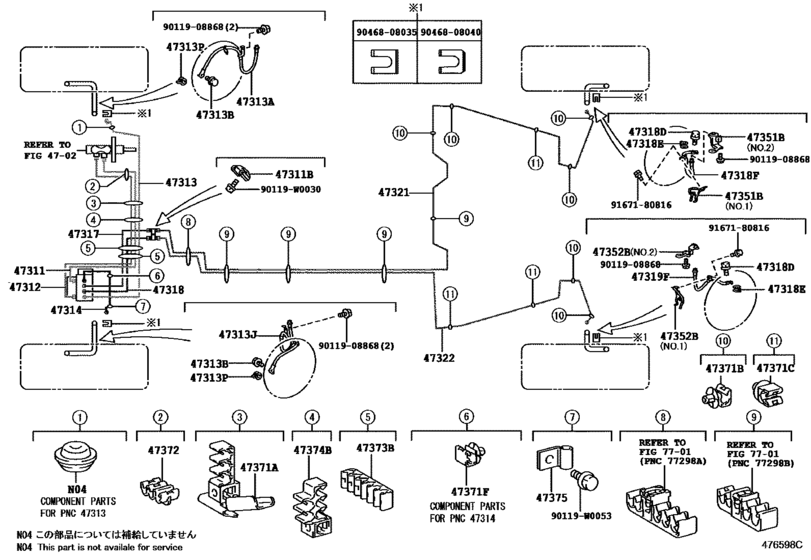

Brake Tube & Clamp ([11.2008 - ] (0811- )RHD) 34

#	OEM	Part name
47311	47311-05290	Tube, Front Brake, No.1
47311	90412-10255	Way, No.1(For Front Brake Tube)
47312	47312-05150	Tube, Front Brake, No.2
47313	47313-05340	Tube, Front Brake, No.3
47313	90947-W2022	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	90947-W2023	Hose, Flexible, No.2(For Front)
47313	47389-50020	Gasket(For Front Flexible Hose)
47314	47314-05230	Tube, Front Brake, No.4
47314	47314-05231	Tube, Front Brake, No.4
47317	47317-05270	Tube, Front Brake, No.7
47318	47318-05270	Tube, Front Brake, No.8
47318	90947-W2017	Hose, Flexible(For Rear Rh)
47319	90947-W2018	Hose, Flexible(For Rear Lh)
47321	47321-05090	Tube, Rear Brake, No.1
47322	47322-05090	Tube, Rear Brake, No.2
47351	47351-05050	Bracket, Flexible Hose, No.1
47351	47351-05060	Bracket, Flexible Hose, No.1
47352	47352-05050	Bracket, Flexible Hose, No.2
47352	47352-05060	Bracket, Flexible Hose, No.2
47371	47371-05010	Clamp, Brake Tube, No.1
47371	90949-01D17	Clamp(For Clutch Master Cylinder Tube)
47371	90949-01D29	Clamp(For Clutch Tube)
47372	90464-00868	Clamp, Brake Tube, No.1
47373	90464-00890	Clamp, Brake Tube, No.1
47374	90949-01D45	Clamp, Brake Tube, No.7
47375	90461-10781	Clamp, Brake Tube, No.6
90119	90119-W0030	New Genuine Part
90119	90119-W0053	New Genuine Part
9011908868	90119-08868	BOLT WWASHER
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9046808040	90468-08040	CLIP
9167180816	91671-80816	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
47311-05290	Tube, Front Brake, No.1	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
47312-05150	Tube, Front Brake, No.2	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
47313-05340	Tube, Front Brake, No.3	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
47314-05230	Tube, Front Brake, No.4	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
47314-05231	Tube, Front Brake, No.4	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
47317-05270	Tube, Front Brake, No.7	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
47318-05270	Tube, Front Brake, No.8	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
47321-05090	Tube, Rear Brake, No.1	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
47322-05090	Tube, Rear Brake, No.2	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
47351-05050	Bracket, Flexible Hose, No.1	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
47351-05060	Bracket, Flexible Hose, No.1	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
47352-05050	Bracket, Flexible Hose, No.2	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
47352-05060	Bracket, Flexible Hose, No.2	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
47371-05010	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
90119-W0030	New Genuine Part	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
90119-W0053	New Genuine Part	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
90412-10255	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
90461-10781	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
90464-00868	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
90464-00890	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
90468-08035	CLIP	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
90468-08040	CLIP	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
90947-W2017	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
90947-W2018	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
90947-W2022	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
90947-W2023	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
90949-01D17	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
90949-01D29	Clamp(For Clutch Tube)	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
90949-01D45	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
91671-80816	Bolt (For Transmission Control Cable Bracket)	Brake Tube & Clamp ([11.2008 - ] (0811- )RHD)
