AZT270

Toyota AVENSIS · 2008 · 3,340 parts · 182 categories

← Back to categories

3,340 items

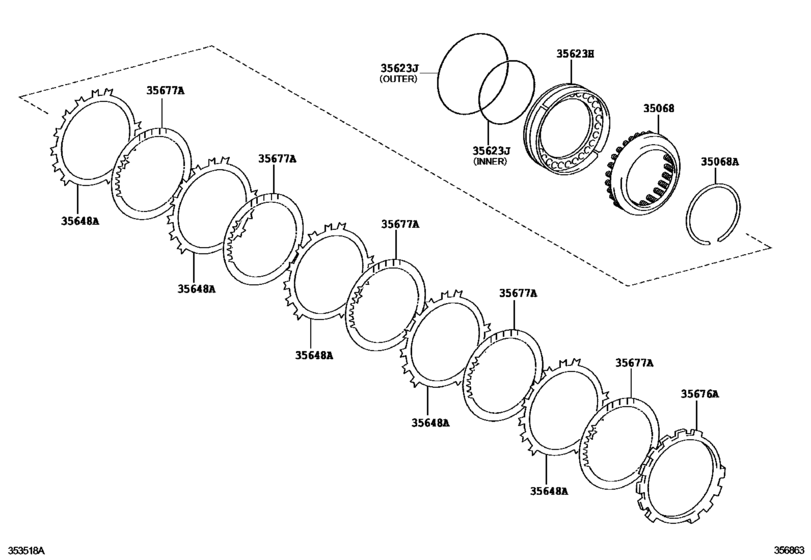

Brake No.3, 1St & Reverse Brake (Atm) ([11.2008 - ] U241E (0811- )) 17

#	OEM	Part name
35068	35068-21010	Spring Sub-Assy, 1St & Reverse Brake Return
35068	90520-99035	Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)
35623	35623-48010	Piston, 1St & Reverse Brake
35623	35623-06020	Piston, 1St & Reverse Brake
35623	90301-99096	Ring, O (For Forward Clutch Piston)
35623	90301-99098	Ring, O (For 1St & Reverse Brake)
35623	90301-99134	Ring, O (For 1St & Reverse Brake)
35648	35692-21011	Plate, Clutch (For 1St & Reverse Brake)
35676	35678-21010	Flange, Brake (For 1St & Reverse Brake)
35676	35678-21020	Flange, Brake (For 1St & Reverse Brake)
35676	35678-21030	Flange, Brake (For 1St & Reverse Brake)
35676	35678-21040	Flange, Brake (For 1St & Reverse Brake)
35676	35678-21050	Flange, Brake (For 1St & Reverse Brake)
35676	35678-21060	Flange, Brake (For 1St & Reverse Brake)
35676	35678-21070	Flange, Brake (For 1St & Reverse Brake)
35676	35678-21080	Flange, Brake (For 1St & Reverse Brake)
35677	35682-21010	Disc, Clutch (For 1St & Reverse Brake)

OEM	Part name	Category
35068-21010	Spring Sub-Assy, 1St & Reverse Brake Return	Brake No.3, 1St & Reverse Brake (Atm) ([11.2008 - ] U241E (0811- ))
35623-06020	Piston, 1St & Reverse Brake	Brake No.3, 1St & Reverse Brake (Atm) ([11.2008 - ] U241E (0811- ))
35623-48010	Piston, 1St & Reverse Brake	Brake No.3, 1St & Reverse Brake (Atm) ([11.2008 - ] U241E (0811- ))
35678-21010	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([11.2008 - ] U241E (0811- ))
35678-21020	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([11.2008 - ] U241E (0811- ))
35678-21030	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([11.2008 - ] U241E (0811- ))
35678-21040	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([11.2008 - ] U241E (0811- ))
35678-21050	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([11.2008 - ] U241E (0811- ))
35678-21060	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([11.2008 - ] U241E (0811- ))
35678-21070	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([11.2008 - ] U241E (0811- ))
35678-21080	Flange, Brake (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([11.2008 - ] U241E (0811- ))
35682-21010	Disc, Clutch (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([11.2008 - ] U241E (0811- ))
35692-21011	Plate, Clutch (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([11.2008 - ] U241E (0811- ))
90301-99096	Ring, O (For Forward Clutch Piston)	Brake No.3, 1St & Reverse Brake (Atm) ([11.2008 - ] U241E (0811- ))
90301-99098	Ring, O (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([11.2008 - ] U241E (0811- ))
90301-99134	Ring, O (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([11.2008 - ] U241E (0811- ))
90520-99035	Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)	Brake No.3, 1St & Reverse Brake (Atm) ([11.2008 - ] U241E (0811- ))
