Search › Model › AZT270
AZT270

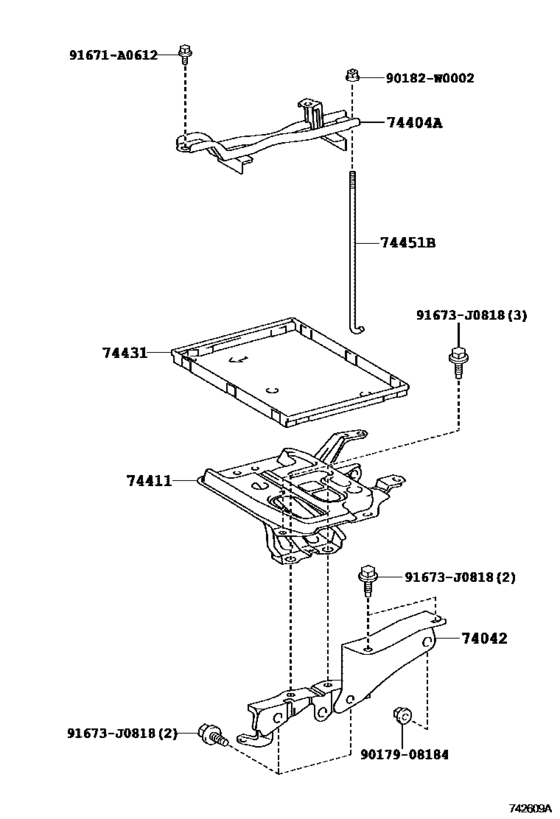

Battery Carrier ([11.2008 - ] (0811- )) 9
| # | OEM | Part name |
|---|---|---|
| 74042 | 74401-05010 | Bracket Sub-Assy, Battery |
| 74404 | 74404-02280 | Clamp Sub-Assy, Battery |
| 74411 | 74410-05020 | Carrier, Battery |
| 74431 | 74431-02170 | Tray, Battery |
| 74451 | 74451-30110 | Bolt, Battery Clamp |
| 90182 | 90182-W0002 | New Genuine Part |
| 91671 | 91671-A0612 | BOLT FLANGE |
| 91673 | 91673-J0818 | New Genuine Part |
| 9017908184 | 90179-08184 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 74401-05010 | Bracket Sub-Assy, Battery | Battery Carrier ([11.2008 - ] (0811- )) |
| 74404-02280 | Clamp Sub-Assy, Battery | Battery Carrier ([11.2008 - ] (0811- )) |
| 74410-05020 | Carrier, Battery | Battery Carrier ([11.2008 - ] (0811- )) |
| 74431-02170 | Tray, Battery | Battery Carrier ([11.2008 - ] (0811- )) |
| 74451-30110 | Bolt, Battery Clamp | Battery Carrier ([11.2008 - ] (0811- )) |
| 90179-08184 | NUT | Battery Carrier ([11.2008 - ] (0811- )) |
| 90182-W0002 | New Genuine Part | Battery Carrier ([11.2008 - ] (0811- )) |
| 91671-A0612 | BOLT FLANGE | Battery Carrier ([11.2008 - ] (0811- )) |
| 91673-J0818 | New Genuine Part | Battery Carrier ([11.2008 - ] (0811- )) |
