Search › Model › AZT250
AZT250

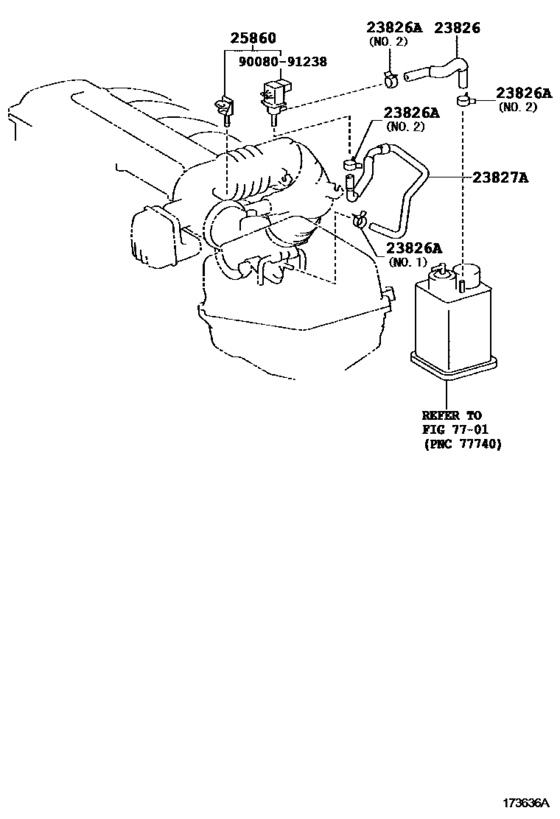

Vacuum Piping ([01.2003 - ] (0301- )) 6
| # | OEM | Part name |
|---|---|---|
| 23826 | 23826-28100 | Hose, Fuel Vapor Feed, No.1 |
| 23826 | 96132-41000 | Clip, No.1(For Idle-Up Hose) |
| 23826 | 96132-51100 | Clip (For Hose) |
| 23827 | 23827-28150 | Hose, Fuel Vapor Feed, No.2 |
| 25860 | 25860-0H040 | Valve Assy, Vacuum Switching, No.1 |
| 9008091238 | 90080-91238 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 23826-28100 | Hose, Fuel Vapor Feed, No.1 | Vacuum Piping ([01.2003 - ] (0301- )) |
| 23827-28150 | Hose, Fuel Vapor Feed, No.2 | Vacuum Piping ([01.2003 - ] (0301- )) |
| 25860-0H040 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([01.2003 - ] (0301- )) |
| 90080-91238 | New Genuine Part | Vacuum Piping ([01.2003 - ] (0301- )) |
| 96132-41000 | Clip, No.1(For Idle-Up Hose) | Vacuum Piping ([01.2003 - ] (0301- )) |
| 96132-51100 | Clip (For Hose) | Vacuum Piping ([01.2003 - ] (0301- )) |
