Search › Model › AZT250

AZT250

Toyota AVENSIS · 2003 · 3,246 parts · 178 categories

3,246 items

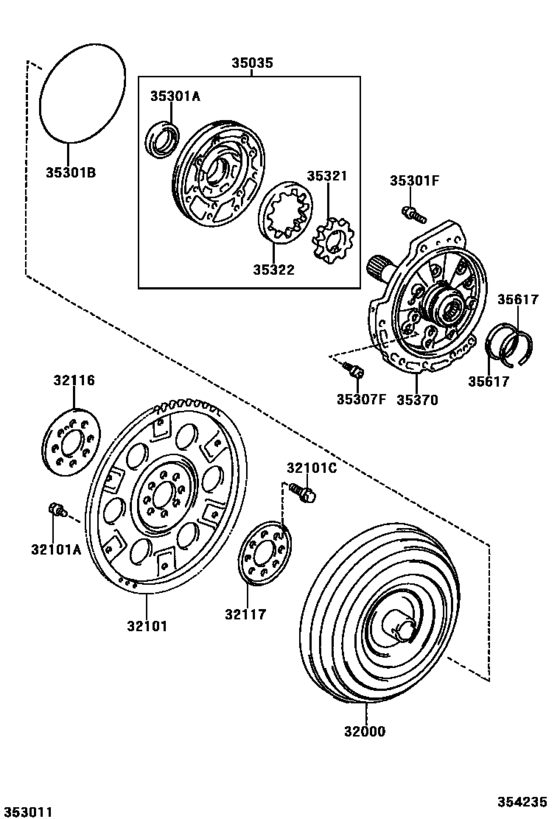

Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC) 39

#	OEM	Part name
32000	32000-20360	Converter Assy, Torque
32000	32000-42040	Converter Assy, Torque
32101	32101-28040	Gear Sub-Assy, Drive Plate & Ring
32101	90109-09001	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-09025	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-12184	Bolt, Flywheel Setting
32101	90105-12384	Bolt, Flywheel Setting
32116	32116-20050	Spacer, Drive Plate, Front
32117	32117-20060	Spacer, Drive Plate, Rear
35035	35035-21020	Body Sub-Assy, Fr Oil Pump & Gear
35035	35035-12070	Body Sub-Assy, Fr Oil Pump & Gear
35301	90311-38083	Seal, Oil (For Front Oil Pump)
35301	90301-99099	Ring, O (For Front Oil Pump Body)
35301	90105-08050	Bolt (For Overdrive Case & Transaxle Case Setting)
35307	90148-60027	Bolt (For Stator Shaft)
35321	35321-21060	Gear, Front Oil Pump Drive
35321	35321-28060	Gear, Front Oil Pump Drive
35321	35321-21070	Gear, Front Oil Pump Drive
35321	35321-28070	Gear, Front Oil Pump Drive
35321	35321-21080	Gear, Front Oil Pump Drive
35321	35321-28080	Gear, Front Oil Pump Drive
35321	35321-06030	Gear, Front Oil Pump Drive
35321	35321-21090	Gear, Front Oil Pump Drive
35321	35321-28090	Gear, Front Oil Pump Drive
35321	35321-21100	Gear, Front Oil Pump Drive
35321	35321-28100	Gear, Front Oil Pump Drive
35322	35322-21060	Gear, Front Oil Pump Driven
35322	35322-28060	Gear, Front Oil Pump Driven
35322	35322-21070	Gear, Front Oil Pump Driven
35322	35322-28070	Gear, Front Oil Pump Driven
35322	35322-21080	Gear, Front Oil Pump Driven
35322	35322-28080	Gear, Front Oil Pump Driven
35322	35322-21090	Gear, Front Oil Pump Driven
35322	35322-28090	Gear, Front Oil Pump Driven
35322	35322-21100	Gear, Front Oil Pump Driven
35322	35322-28100	Gear, Front Oil Pump Driven
35370	35370-21020	Shaft Assy, Stator
35370	35370-12110	Shaft Assy, Stator
35617	35613-21010	Ring, Forward Clutch Dram Oil Seal

OEM	Part name	Category
32000-20360	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
32000-42040	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
32101-28040	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
32116-20050	Spacer, Drive Plate, Front	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
32117-20060	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35035-12070	Body Sub-Assy, Fr Oil Pump & Gear	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35035-21020	Body Sub-Assy, Fr Oil Pump & Gear	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35321-06030	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35321-21060	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35321-21070	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35321-21080	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35321-21090	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35321-21100	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35321-28060	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35321-28070	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35321-28080	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35321-28090	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35321-28100	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35322-21060	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35322-21070	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35322-21080	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35322-21090	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35322-21100	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35322-28060	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35322-28070	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35322-28080	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35322-28090	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35322-28100	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35370-12110	Shaft Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35370-21020	Shaft Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
35613-21010	Ring, Forward Clutch Dram Oil Seal	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
90105-08050	Bolt (For Overdrive Case & Transaxle Case Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
90105-12184	Bolt, Flywheel Setting	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
90105-12384	Bolt, Flywheel Setting	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
90109-09001	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
90119-09025	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
90148-60027	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
90301-99099	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
90311-38083	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2003 - ] U241E (0301- )4FC)
