Search › Model › AZT250

AZT250

Toyota AVENSIS · 2003 · 3,246 parts · 178 categories

3,246 items

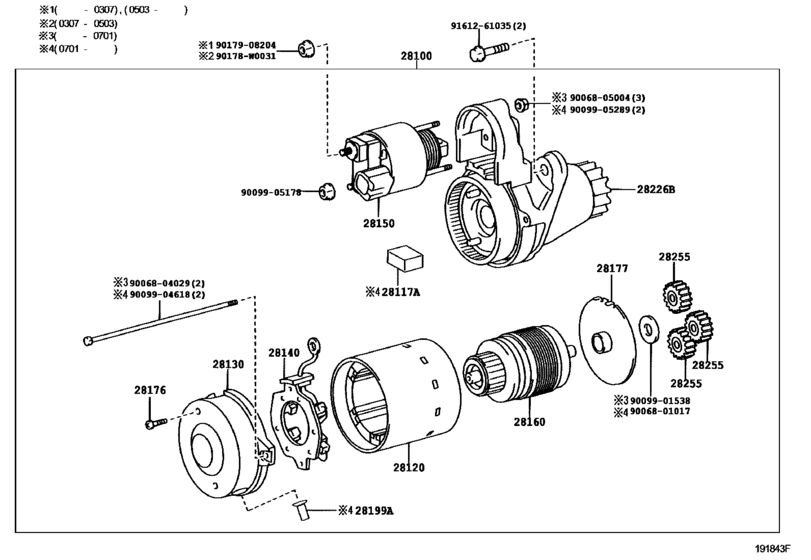

Starter ([01.2003 - ] 12V 1.3KW (0301- )) 45

#	OEM	Part name
28100	28100-0H051	Starter Assy
28100	28100-0H100	Starter Assy
28117	28117-37050	Seal, Rubber
28120	28120-0D090	Yoke Assy, Starter
28120	28100-0DH03	Starter Assy
28120	28100-0HH02	Starter Assy
28120	28120-0H100	Yoke Assy, Starter
28130	28130-0H050	Frame Assy, Starter Commutator End
28130	28100-0HH04	Starter Assy
28130	28100-0HH05	Starter Assy
28130	28130-37050	Frame Assy, Starter Commutator End
28140	28140-0H050	Holder Assy, Starter Brush
28140	28140-0H100	Holder Assy, Starter Brush
28150	28150-37020	Switch Assy, Magnet Starter
28150	28226-0D090	Switch Assy, Magnet Starter
28150	28100-0DH05	Starter Assy
28150	28100-0HH08	Starter Assy
28150	28100-0HH09	Starter Assy
28160	28160-0D090	Armature Assy, Starter
28160	28160-0D180	Armature Assy, Starter
28176	90068-00015	Screw, Starter
28176	90099-00323	Screw, Starter
28177	28177-0D090	Plate(For Starter Armature)
28177	28177-37050	Plate(For Starter Armature)
28199	28199-37050	Protector, Dust Starter
28226	28226-0H051	Starter Kit, Repair Service
28226	28226-0H100	Starter Kit, Repair Service
28255	28255-0D090	Gear, Planet
28255	28100-0DH01	Starter Assy
28255	28100-0HH00	Starter Assy
28255	28100-0HH01	Starter Assy
28255	28100-0JH00	Starter Assy
28255	28100-0QH00	Starter Assy
28255	28255-37050	Gear, Planet
90178	90178-W0031	Nut (For Transmission Control Cable)
9006801017	90068-01017	New Genuine Part
9006804029	90068-04029	New Genuine Part
9006805004	90068-05004	New Genuine Part
9009901538	90099-01538	New Genuine Part
9009904618	90099-04618	New Genuine Part
9009905178	90099-05178	New Genuine Part
9009905289	90099-05289	New Genuine Part
9017908204	90179-08204	Nut
9017908204	90080-18070	NUT, WWASHER
9161261035	91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)

OEM	Part name	Category
28100-0DH01	Starter Assy	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28100-0DH03	Starter Assy	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28100-0DH05	Starter Assy	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28100-0H051	Starter Assy	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28100-0H100	Starter Assy	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28100-0HH00	Starter Assy	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28100-0HH01	Starter Assy	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28100-0HH02	Starter Assy	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28100-0HH04	Starter Assy	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28100-0HH05	Starter Assy	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28100-0HH08	Starter Assy	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28100-0HH09	Starter Assy	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28100-0JH00	Starter Assy	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28100-0QH00	Starter Assy	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28117-37050	Seal, Rubber	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28120-0D090	Yoke Assy, Starter	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28120-0H100	Yoke Assy, Starter	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28130-0H050	Frame Assy, Starter Commutator End	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28130-37050	Frame Assy, Starter Commutator End	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28140-0H050	Holder Assy, Starter Brush	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28140-0H100	Holder Assy, Starter Brush	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28150-37020	Switch Assy, Magnet Starter	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28160-0D090	Armature Assy, Starter	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28160-0D180	Armature Assy, Starter	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28177-0D090	Plate(For Starter Armature)	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28177-37050	Plate(For Starter Armature)	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28199-37050	Protector, Dust Starter	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28226-0D090	Switch Assy, Magnet Starter	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28226-0H051	Starter Kit, Repair Service	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28226-0H100	Starter Kit, Repair Service	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28255-0D090	Gear, Planet	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
28255-37050	Gear, Planet	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
90068-00015	Screw, Starter	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
90068-01017	New Genuine Part	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
90068-04029	New Genuine Part	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
90068-05004	New Genuine Part	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
90080-18070	NUT, WWASHER	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
90099-00323	Screw, Starter	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
90099-01538	New Genuine Part	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
90099-04618	New Genuine Part	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
90099-05178	New Genuine Part	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
90099-05289	New Genuine Part	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
90178-W0031	Nut (For Transmission Control Cable)	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
90179-08204	Nut	Starter ([01.2003 - ] 12V 1.3KW (0301- ))
91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)	Starter ([01.2003 - ] 12V 1.3KW (0301- ))

Source: Public OEM parts-catalog data
Variants: 2 / 40
Category: 178
Collected: 2026-08-02
