Search › Model › AZT250

AZT250

Toyota AVENSIS · 2003 · 3,246 parts · 178 categories

3,246 items

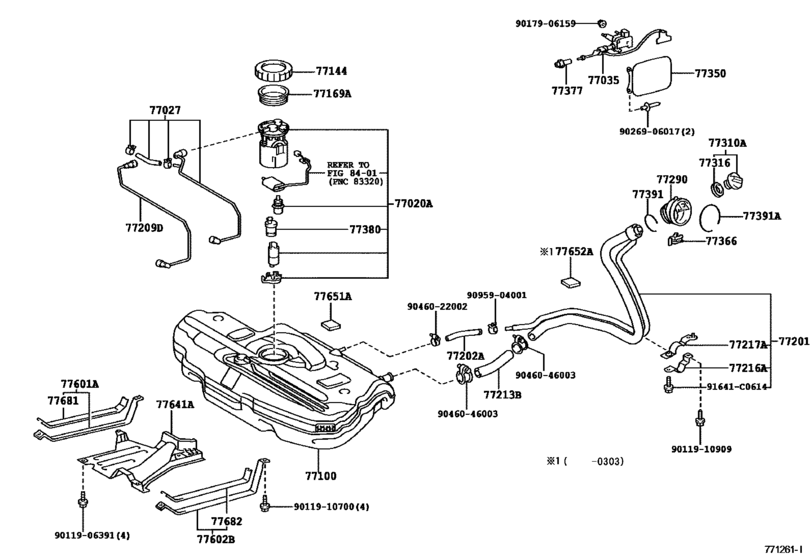

Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- )) 42

#	OEM	Part name
77020	77020-02080	Tube Assy, Fuel Suction W/pump & Gage
77020	77020-02081	Tube Assy, Fuel Suction W/pump & Gage
77027	77027-05010	Tube Sub-Assy, Fuel Evaporation, No.2
77035	77030-05011	Cable Sub-Assy, Fuel Lid Lock Control
77100	77001-05040	Tank Assy, Fuel
77144	77144-02030	Retainer, Fuel Pump Gauge
77169	77169-02030	Gasket, Fuel Suction Tube Set
77201	77201-05080	Pipe Sub-Assy, Fuel Tank Inlet
77201	77201-05081	Pipe Sub-Assy, Fuel Tank Inlet
77202	77259-02040	Hose, Fuel, No.1 (For Breather Tube)
77209	77209-02050	Tube Sub-Assy, Fuel Tank Main
77213	77213-02070	Hose, Fuel Tank To Filler Pipe
77216	77216-02060	Support, Fuel Tank Filler Pipe, No.1
77217	77217-02030	Support, Fuel Tank Filler Pipe, No.2
77290	77291-05030	Shield Assy, Fuel Tank Filler Pipe
77310	77300-28010	Cap Assy, Fuel Tank
77316	77316-16010	Gasket (For Fuel Tank Cap)
77350	77350-05010	Lid Assy, Fuel Filler Opening
77366	77360-05020	Spring, Fuel Filler Opening Lid Hinge
77377	77377-05010	Retainer, Fuel Filler Opening Lid Lock
77380	77380-12020	Valve Assy, Fuel Cut Off
77391	77391-12020	Ring, Fuel Inlet Box
77391	77391-12040	Ring, Fuel Inlet Box
77601	77601-02060	Band Sub-Assy, Fuel Tank, No.1
77602	77602-02070	Band Sub-Assy, Fuel Tank, No.1 Lh
77641	77641-02010	Protector, Fuel Tank, No.1
77651	77651-12070	Cushion, Fuel Tank, No.1
77681	77681-02040	Seat, Fuel Tank Band, Rh
77681	77681-05020	Seat, Fuel Tank Band, Lh
77682	77681-02020	Seat, Fuel Tank Band, Lh
91641	91641-C0614	Bolt
9011906391	90119-06391	Bolt, W/Washer
9011910700	90119-10700	New Genuine Part
9011910909	90119-10909	Bolt
9017906159	90179-06159	Nut, Rear Wiper Link Pivot, No.1
9017906159	90080-17210	Nut, Rear Wiper Link Pivot, No.1
9026906017	90269-06017	RIVET
9046022002	90460-22002	CLAMP
9046022002	90460-22001	CLAMP
9046046003	90460-46003	Clamp (For Fuel Filler Pipe)
9046046003	90460-46005	Clamp (For Fuel Filler Pipe)
9095904001	90959-04001	Clip, Fuel Hose

OEM	Part name	Category
77001-05040	Tank Assy, Fuel	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77020-02080	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77020-02081	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77027-05010	Tube Sub-Assy, Fuel Evaporation, No.2	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77030-05011	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77144-02030	Retainer, Fuel Pump Gauge	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77169-02030	Gasket, Fuel Suction Tube Set	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77201-05080	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77201-05081	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77209-02050	Tube Sub-Assy, Fuel Tank Main	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77213-02070	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77216-02060	Support, Fuel Tank Filler Pipe, No.1	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77217-02030	Support, Fuel Tank Filler Pipe, No.2	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77259-02040	Hose, Fuel, No.1 (For Breather Tube)	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77291-05030	Shield Assy, Fuel Tank Filler Pipe	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77300-28010	Cap Assy, Fuel Tank	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77316-16010	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77350-05010	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77360-05020	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77377-05010	Retainer, Fuel Filler Opening Lid Lock	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77380-12020	Valve Assy, Fuel Cut Off	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77391-12020	Ring, Fuel Inlet Box	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77391-12040	Ring, Fuel Inlet Box	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77601-02060	Band Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77602-02070	Band Sub-Assy, Fuel Tank, No.1 Lh	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77641-02010	Protector, Fuel Tank, No.1	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77651-12070	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77681-02020	Seat, Fuel Tank Band, Lh	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77681-02040	Seat, Fuel Tank Band, Rh	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
77681-05020	Seat, Fuel Tank Band, Lh	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
90080-17210	Nut, Rear Wiper Link Pivot, No.1	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
90119-06391	Bolt, W/Washer	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
90119-10700	New Genuine Part	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
90119-10909	Bolt	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
90269-06017	RIVET	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
90460-22001	CLAMP	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
90460-22002	CLAMP	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
90460-46003	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
90460-46005	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
90959-04001	Clip, Fuel Hose	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
91641-C0614	Bolt	Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- ))
