Search › Model › AZT250

AZT250

Toyota AVENSIS · 2003 · 3,246 parts · 178 categories

3,246 items

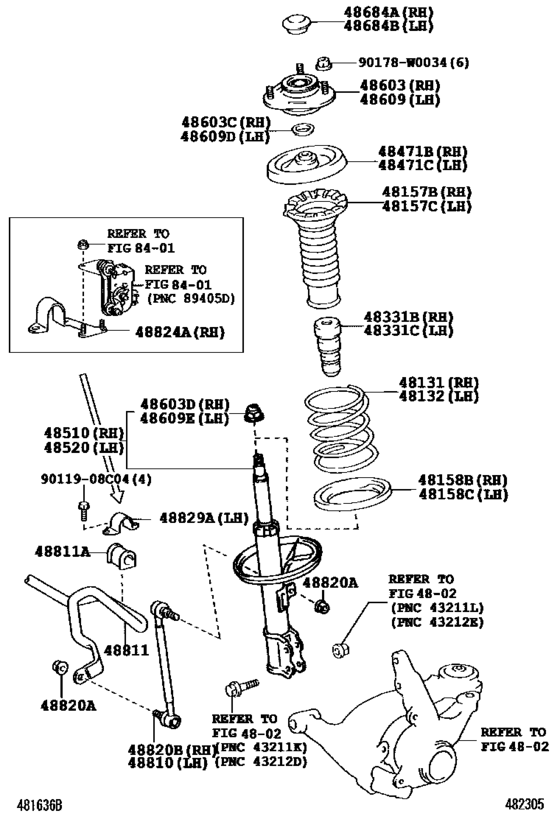

Front Spring & Shock Absorber ([04.2006 - ] (0604- )) 23

#	OEM	Part name
48131	48131-05730	Spring, Front Coil, Rh
48131	48131-05780	Spring, Front Coil, Rh
48157	48157-02060	Insulator, Front Coil Spring, Upper Rh
48158	48158-02050	Insulator, Front Coil Spring, Lower Rh
48158	48158-47010	Insulator, Front Coil Spring, Lower Rh
48331	48331-02050	Bumper, Front Spring, Rh
48471	48044-02030	Seat, Front Coil Spring, Upper
48510	48510-09B40	Absorber Assy, Shock, Front Rh
48510	48510-09N70	Absorber Assy, Shock, Front Rh
48520	48520-09A70	Absorber Assy, Shock, Front Lh
48520	48520-09G20	Absorber Assy, Shock, Front Lh
48603	48609-05040	Support Sub-Assy, Front Suspension, Rh
48603	90303-22002	Seal, Dust(For Front Suspension Support)
48603	90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)
48684	48684-05020	Cover, Front Suspension Support Dust, Rh
48810	48820-47010	Link Assy, Front Stabilizer
48811	48811-05110	Bar, Stabilizer, Front
48811	48815-05110	Bush(For Front Stabilizer Bar)
48820	90179-12151	Nut(For Front Stabilizer Link)
48824	48824-05030	Bracket, Front Stabilizer, No.1 Rh
48829	48824-05020	Bracket, Front Stabilizer, No.1 Rh
90178	90178-W0034	New Genuine Part
9011908	90119-08C04	BOLT WWASHER

OEM	Part name	Category
48044-02030	Seat, Front Coil Spring, Upper	Front Spring & Shock Absorber ([04.2006 - ] (0604- ))
48131-05730	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([04.2006 - ] (0604- ))
48131-05780	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([04.2006 - ] (0604- ))
48157-02060	Insulator, Front Coil Spring, Upper Rh	Front Spring & Shock Absorber ([04.2006 - ] (0604- ))
48158-02050	Insulator, Front Coil Spring, Lower Rh	Front Spring & Shock Absorber ([04.2006 - ] (0604- ))
48158-47010	Insulator, Front Coil Spring, Lower Rh	Front Spring & Shock Absorber ([04.2006 - ] (0604- ))
48331-02050	Bumper, Front Spring, Rh	Front Spring & Shock Absorber ([04.2006 - ] (0604- ))
48510-09B40	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([04.2006 - ] (0604- ))
48510-09N70	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([04.2006 - ] (0604- ))
48520-09A70	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([04.2006 - ] (0604- ))
48520-09G20	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([04.2006 - ] (0604- ))
48609-05040	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([04.2006 - ] (0604- ))
48684-05020	Cover, Front Suspension Support Dust, Rh	Front Spring & Shock Absorber ([04.2006 - ] (0604- ))
48811-05110	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([04.2006 - ] (0604- ))
48815-05110	Bush(For Front Stabilizer Bar)	Front Spring & Shock Absorber ([04.2006 - ] (0604- ))
48820-47010	Link Assy, Front Stabilizer	Front Spring & Shock Absorber ([04.2006 - ] (0604- ))
48824-05020	Bracket, Front Stabilizer, No.1 Rh	Front Spring & Shock Absorber ([04.2006 - ] (0604- ))
48824-05030	Bracket, Front Stabilizer, No.1 Rh	Front Spring & Shock Absorber ([04.2006 - ] (0604- ))
90119-08C04	BOLT WWASHER	Front Spring & Shock Absorber ([04.2006 - ] (0604- ))
90178-W0034	New Genuine Part	Front Spring & Shock Absorber ([04.2006 - ] (0604- ))
90179-12151	Nut(For Front Stabilizer Link)	Front Spring & Shock Absorber ([04.2006 - ] (0604- ))
90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)	Front Spring & Shock Absorber ([04.2006 - ] (0604- ))
90303-22002	Seal, Dust(For Front Suspension Support)	Front Spring & Shock Absorber ([04.2006 - ] (0604- ))
