AZT250

Toyota AVENSIS · 2003 · 3,246 parts · 178 categories

3,246 items

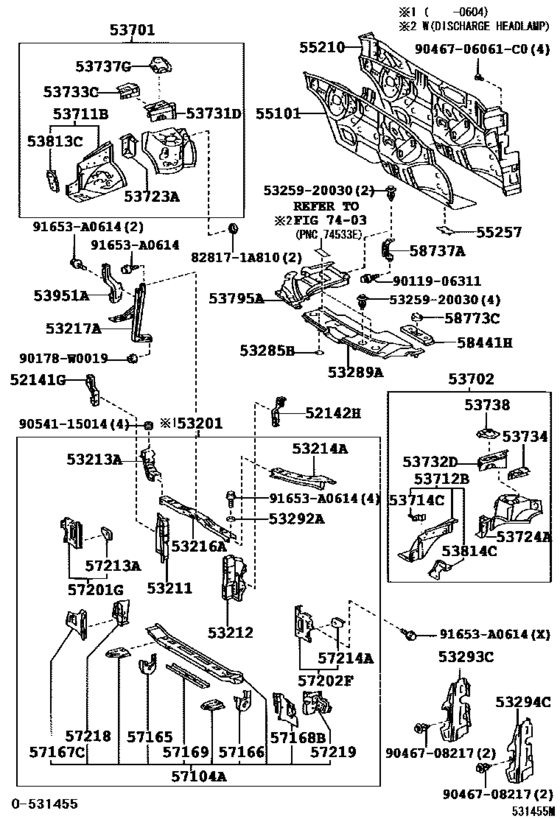

Front Fender Apron & Dash Panel ([01.2003 - ] (0301- )) 61

#	OEM	Part name
52141	52141-05020	Stay, Front Bumper, Rh
52142	52142-05020	Stay, Front Bumper, Lh
53201	53201-05901	Support Sub-Assy, Radiator
53211	53211-05030	Support, Radiator, Rh
53212	53212-05030	Support, Radiator, Lh
53213	53213-05010	Support, Radiator, Upper Rh
53214	53214-05010	Support, Radiator, Upper Lh
53216	53216-05030	Support, Radiator, Upper
53217	53208-05010	Brace, Hood Lock Support
53285	53155-02020	Seal, Radiator Side Air, No.1
53289	53141-05030	Cover, Radiator Support Opening
53292	53882-30040	Seal, Radiator Support, Upper
53293	53293-05030	Deflector, Radiator Side, Rh
53294	53294-05030	Deflector, Radiator Side, Lh
53701	53701-05070	Apron Sub-Assy, Front Fender, Rh
53702	53702-05070	Apron Sub-Assy, Front Fender, Lh
53711	53711-05901	Apron, Front Fender, Front Rh
53712	53712-05901	Apron, Front Fender, Front Lh
53714	53714-20100	Extension, Front Fender Apron, Front Lh
53723	53723-12080	Reinforcement, Front Spring Support, Rh
53724	53724-12070	Reinforcement, Front Spring Support, Lh
53731	53731-05030	Member, Front Apron To Cowl Side, Upper Rh
53732	53732-05030	Member, Front Apron To Cowl Side, Upper Lh
53733	53733-05020	Patch, Front Fender Apron
53734	53734-05020	Patch, Front Fender Apron, No.4
53737	53737-05010	Plate, Front Apron To Cowl Side Member, Rh
53738	53738-05010	Plate, Front Apron To Cowl Side Member, Lh
53795	53795-05010	Cover, Engine Room, Side
53813	53813-05010	Extension, Front Fender, Rh
53814	53814-05010	Extension, Front Fender, Lh
53951	53951-05010	Support, Front End Panel, Upper
55101	55101-05310	Panel Sub-Assy, Dash
55101	55101-05360	Panel Sub-Assy, Dash
55210	55210-05111	Insulator Assy, Dash Panel
55210	55210-05121	Insulator Assy, Dash Panel
55257	55257-13010	Cover, Dash Panel Opening
57104	57104-05031	Member Sub-Assy, Front Cross
57165	57165-12070	Reinforcement, Front Crossmember, Lower Rh
57166	57166-12020	Reinforcement, Front Crossmember, Lower Lh
57167	57167-05030	Gusset, Front Crossmember Side, Rh
57168	57168-05030	Gusset, Front Crossmember Side, Lh
57169	57169-05010	Member, Front Floor, Front Rh
57169	57169-42030	Member, Front Floor, Front Rh
57201	57201-05010	Extension Sub-Assy, Front Side Member, Rh
57202	57202-05010	Extension Sub-Assy, Front Side Member, Lh
57213	57213-05010	Plate, Front Side Member, Rear Rh
57214	57214-05010	Plate, Front Side Member, Rear Lh
57218	57218-05010	Gusset, Front Side Member, No.1
57219	57219-05010	Gusset, Front Side Member, No.2
58441	58441-05010	Cover, Battery Service Hole
58737	58737-20010	Bracket, Engine Service Cover, Rh
58773	58773-05050	Retainer(Radiator Cover)
90178	90178-W0019	Nut, Cap(For Cylinder Head Cover)
91653	91653-A0614	BOLT WWASHER
828171	82817-1A810	Grommet(For Front Fender Apron)
5325920030	53259-20030	Support, Radiator Center
9011906311	90119-06311	BOLT
9046706061	90467-06061-C0	Clip(For Front Floor Carpet)
9046706061	90467-06061-B2	Clip(For Front Floor Silencer)
9046708217	90467-08217	Clip(For Radiator Side Air Seal)
9054115014	90541-15014	Cushion, Hood Bumper

OEM	Part name	Category
52141-05020	Stay, Front Bumper, Rh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
52142-05020	Stay, Front Bumper, Lh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53141-05030	Cover, Radiator Support Opening	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53155-02020	Seal, Radiator Side Air, No.1	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53201-05901	Support Sub-Assy, Radiator	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53208-05010	Brace, Hood Lock Support	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53211-05030	Support, Radiator, Rh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53212-05030	Support, Radiator, Lh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53213-05010	Support, Radiator, Upper Rh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53214-05010	Support, Radiator, Upper Lh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53216-05030	Support, Radiator, Upper	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53259-20030	Support, Radiator Center	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53293-05030	Deflector, Radiator Side, Rh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53294-05030	Deflector, Radiator Side, Lh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53701-05070	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53702-05070	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53711-05901	Apron, Front Fender, Front Rh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53712-05901	Apron, Front Fender, Front Lh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53714-20100	Extension, Front Fender Apron, Front Lh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53723-12080	Reinforcement, Front Spring Support, Rh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53724-12070	Reinforcement, Front Spring Support, Lh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53731-05030	Member, Front Apron To Cowl Side, Upper Rh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53732-05030	Member, Front Apron To Cowl Side, Upper Lh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53733-05020	Patch, Front Fender Apron	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53734-05020	Patch, Front Fender Apron, No.4	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53737-05010	Plate, Front Apron To Cowl Side Member, Rh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53738-05010	Plate, Front Apron To Cowl Side Member, Lh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53795-05010	Cover, Engine Room, Side	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53813-05010	Extension, Front Fender, Rh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53814-05010	Extension, Front Fender, Lh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53882-30040	Seal, Radiator Support, Upper	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
53951-05010	Support, Front End Panel, Upper	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
55101-05310	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
55101-05360	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
55210-05111	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
55210-05121	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
55257-13010	Cover, Dash Panel Opening	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
57104-05031	Member Sub-Assy, Front Cross	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
57165-12070	Reinforcement, Front Crossmember, Lower Rh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
57166-12020	Reinforcement, Front Crossmember, Lower Lh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
57167-05030	Gusset, Front Crossmember Side, Rh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
57168-05030	Gusset, Front Crossmember Side, Lh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
57169-05010	Member, Front Floor, Front Rh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
57169-42030	Member, Front Floor, Front Rh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
57201-05010	Extension Sub-Assy, Front Side Member, Rh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
57202-05010	Extension Sub-Assy, Front Side Member, Lh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
57213-05010	Plate, Front Side Member, Rear Rh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
57214-05010	Plate, Front Side Member, Rear Lh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
57218-05010	Gusset, Front Side Member, No.1	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
57219-05010	Gusset, Front Side Member, No.2	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
58441-05010	Cover, Battery Service Hole	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
58737-20010	Bracket, Engine Service Cover, Rh	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
58773-05050	Retainer(Radiator Cover)	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
82817-1A810	Grommet(For Front Fender Apron)	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
90119-06311	BOLT	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
90178-W0019	Nut, Cap(For Cylinder Head Cover)	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
90467-06061-B2	Clip(For Front Floor Silencer)	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
90467-06061-C0	Clip(For Front Floor Carpet)	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
90467-08217	Clip(For Radiator Side Air Seal)	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
90541-15014	Cushion, Hood Bumper	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
91653-A0614	BOLT WWASHER	Front Fender Apron & Dash Panel ([01.2003 - ] (0301- ))
