Search › Model › AZT250
AZT250

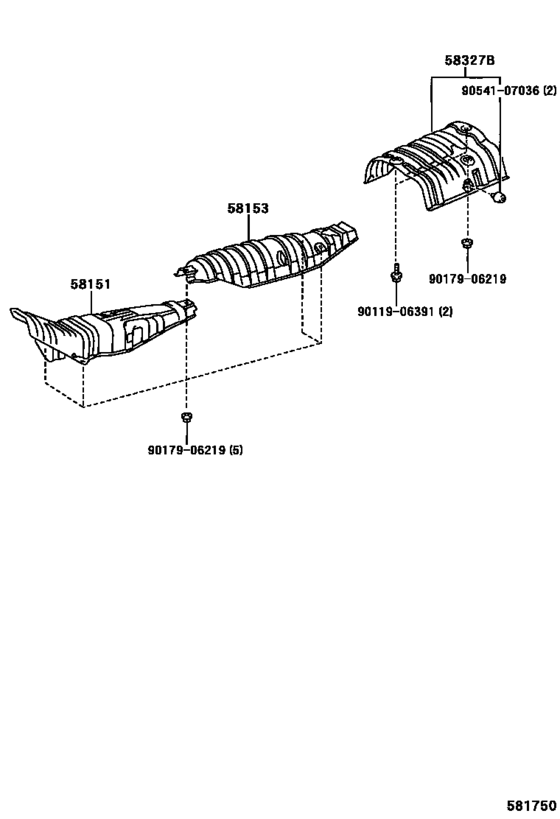

Floor Insulator ([01.2003 - ] (0301- )) 7
| # | OEM | Part name |
|---|---|---|
| 58151 | 58041-20060 | Insulator, Front Floor Heat, No.1 |
| 58153 | 58153-05030 | Insulator, Front Floor Heat, No.2 |
| 58327 | 58327-20150 | Insulator, Main Muffler Heat |
| 9011906391 | 90119-06391 | Bolt, W/Washer |
| 9017906219 | 90179-06219 | Nut |
| 9017906219 | 90182-A0005 | Nut |
| 9054107036 | 90541-07036 | CUSHION |
| OEM | Part name | Category |
|---|---|---|
| 58041-20060 | Insulator, Front Floor Heat, No.1 | Floor Insulator ([01.2003 - ] (0301- )) |
| 58153-05030 | Insulator, Front Floor Heat, No.2 | Floor Insulator ([01.2003 - ] (0301- )) |
| 58327-20150 | Insulator, Main Muffler Heat | Floor Insulator ([01.2003 - ] (0301- )) |
| 90119-06391 | Bolt, W/Washer | Floor Insulator ([01.2003 - ] (0301- )) |
| 90179-06219 | Nut | Floor Insulator ([01.2003 - ] (0301- )) |
| 90182-A0005 | Nut | Floor Insulator ([01.2003 - ] (0301- )) |
| 90541-07036 | CUSHION | Floor Insulator ([01.2003 - ] (0301- )) |
