Search › Model › AZT250

AZT250

Toyota AVENSIS · 2003 · 3,246 parts · 178 categories

← Back to categories

3,246 items

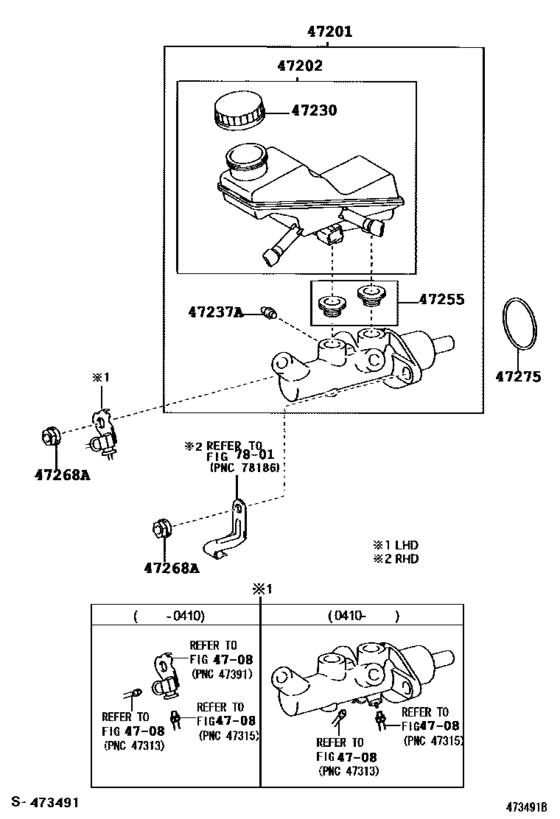

Brake Master Cylinder ([01.2003 - ] (0301- )) 11

#	OEM	Part name
47201	47201-05100	Cylinder Sub-Assy, Brake Master
47201	47201-05101	Cylinder Sub-Assy, Brake Master
47201	47201-05091	Cylinder Sub-Assy, Brake Master
47201	47201-05092	Cylinder Sub-Assy, Brake Master
47202	47220-05060	Reservoir Sub-Assy, Brake Master Cylinder
47202	47220-05050	Reservoir Sub-Assy, Brake Master Cylinder
47230	47230-0D010	Cap Assy, Brake Master Cylinder Reservoir Filler
47237	47237-0D010	Stopper, Breke Master Cylinder Reservoir Tank
47255	47255-09010	Grommet, Master Cylinder Reservoir
47268	47268-0D010	Nut, Brake Master Cylinder
47275	47275-05020	Gasket, Brake Master Cylinder

OEM	Part name	Category
47201-05091	Cylinder Sub-Assy, Brake Master	Brake Master Cylinder ([01.2003 - ] (0301- ))
47201-05092	Cylinder Sub-Assy, Brake Master	Brake Master Cylinder ([01.2003 - ] (0301- ))
47201-05100	Cylinder Sub-Assy, Brake Master	Brake Master Cylinder ([01.2003 - ] (0301- ))
47201-05101	Cylinder Sub-Assy, Brake Master	Brake Master Cylinder ([01.2003 - ] (0301- ))
47220-05050	Reservoir Sub-Assy, Brake Master Cylinder	Brake Master Cylinder ([01.2003 - ] (0301- ))
47220-05060	Reservoir Sub-Assy, Brake Master Cylinder	Brake Master Cylinder ([01.2003 - ] (0301- ))
47230-0D010	Cap Assy, Brake Master Cylinder Reservoir Filler	Brake Master Cylinder ([01.2003 - ] (0301- ))
47237-0D010	Stopper, Breke Master Cylinder Reservoir Tank	Brake Master Cylinder ([01.2003 - ] (0301- ))
47255-09010	Grommet, Master Cylinder Reservoir	Brake Master Cylinder ([01.2003 - ] (0301- ))
47268-0D010	Nut, Brake Master Cylinder	Brake Master Cylinder ([01.2003 - ] (0301- ))
47275-05020	Gasket, Brake Master Cylinder	Brake Master Cylinder ([01.2003 - ] (0301- ))
