AZT250

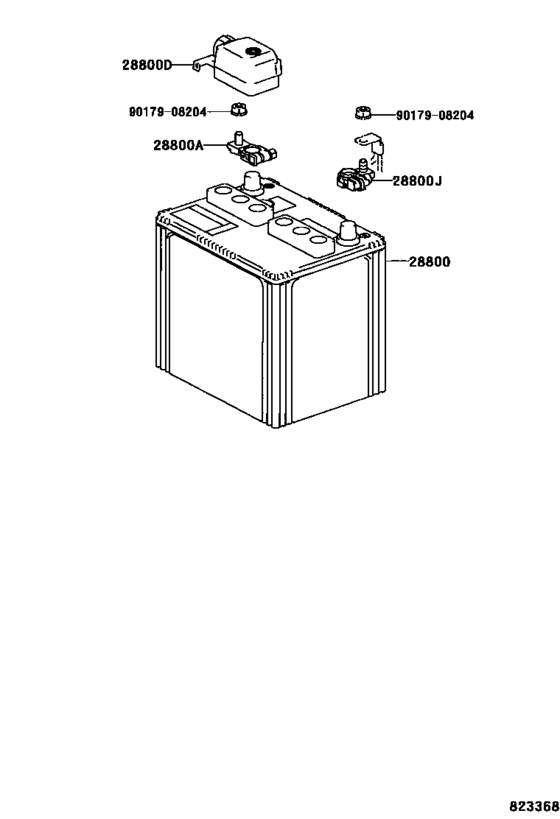

Battery & Battery Cable ([01.2003 - ] (0301- )) 9
| # | OEM | Part name |
|---|---|---|
| 28800 | 28800-0D310 | Battery |
| 28800 | 28800-0D340 | Battery |
| 28800 | 28800-0D350 | Battery |
| 28800 | 28800-0D380 | Battery |
| 28800 | 90982-05056 | Terminal, Battery Positive |
| 28800 | 82821-12500 | Cover, Connector(For Battery Terminal) |
| 28800 | 90982-06056 | Terminal, Battery Negative |
| 9017908204 | 90179-08204 | Nut |
| 9017908204 | 90080-18070 | NUT, WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 28800-0D310 | Battery | Battery & Battery Cable ([01.2003 - ] (0301- )) |
| 28800-0D340 | Battery | Battery & Battery Cable ([01.2003 - ] (0301- )) |
| 28800-0D350 | Battery | Battery & Battery Cable ([01.2003 - ] (0301- )) |
| 28800-0D380 | Battery | Battery & Battery Cable ([01.2003 - ] (0301- )) |
| 82821-12500 | Cover, Connector(For Battery Terminal) | Battery & Battery Cable ([01.2003 - ] (0301- )) |
| 90080-18070 | NUT, WWASHER | Battery & Battery Cable ([01.2003 - ] (0301- )) |
| 90179-08204 | Nut | Battery & Battery Cable ([01.2003 - ] (0301- )) |
| 90982-05056 | Terminal, Battery Positive | Battery & Battery Cable ([01.2003 - ] (0301- )) |
| 90982-06056 | Terminal, Battery Negative | Battery & Battery Cable ([01.2003 - ] (0301- )) |
