AZT250

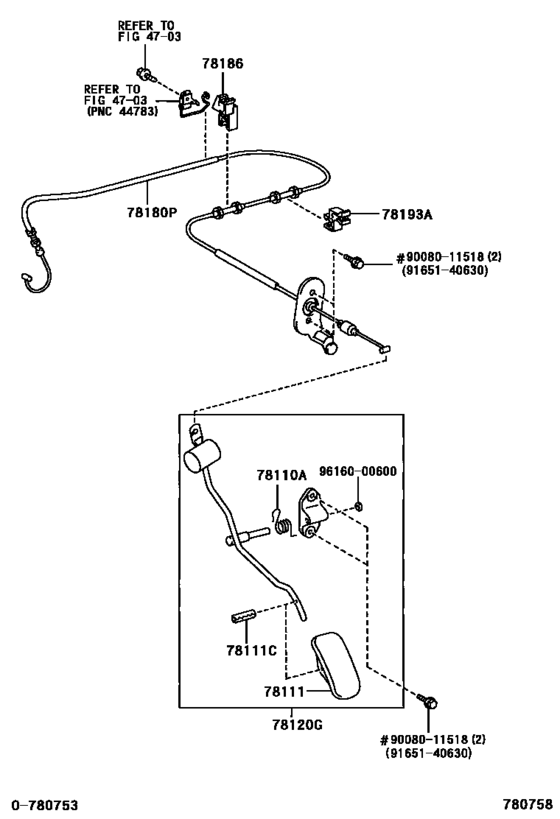

Accelerator Link ([01.2003 - ] (0301- )LHD) 10
| # | OEM | Part name |
|---|---|---|
| 78110 | 90508-26036 | Spring (For Accelerator Pedal Rod) |
| 78111 | 78111-05050 | Pedal, Accelerator |
| 78111 | 90254-04019 | Pin (For Accelerator Pedal) |
| 78120 | 78120-05200 | Rod Assy, Accelerator Pedal |
| 78180 | 78180-20A10 | Cable Assy, Accelerator Control |
| 78186 | 78186-05040 | Support, Accelerator Control Cable, No.1 |
| 78193 | 78193-05020 | Support, Accelerator Control Cable, No.3 |
| 9008011518 | 90080-11518 | New Genuine Part |
| 9165140630 | 91651-40630 | BOLT |
| 9616000600 | 96160-00600 | Ring, E(For Clutch Pedal Pawl) |
| OEM | Part name | Category |
|---|---|---|
| 78111-05050 | Pedal, Accelerator | Accelerator Link ([01.2003 - ] (0301- )LHD) |
| 78120-05200 | Rod Assy, Accelerator Pedal | Accelerator Link ([01.2003 - ] (0301- )LHD) |
| 78180-20A10 | Cable Assy, Accelerator Control | Accelerator Link ([01.2003 - ] (0301- )LHD) |
| 78186-05040 | Support, Accelerator Control Cable, No.1 | Accelerator Link ([01.2003 - ] (0301- )LHD) |
| 78193-05020 | Support, Accelerator Control Cable, No.3 | Accelerator Link ([01.2003 - ] (0301- )LHD) |
| 90080-11518 | New Genuine Part | Accelerator Link ([01.2003 - ] (0301- )LHD) |
| 90254-04019 | Pin (For Accelerator Pedal) | Accelerator Link ([01.2003 - ] (0301- )LHD) |
| 90508-26036 | Spring (For Accelerator Pedal Rod) | Accelerator Link ([01.2003 - ] (0301- )LHD) |
| 91651-40630 | BOLT | Accelerator Link ([01.2003 - ] (0301- )LHD) |
| 96160-00600 | Ring, E(For Clutch Pedal Pawl) | Accelerator Link ([01.2003 - ] (0301- )LHD) |
