AZT246

Toyota CALDINA · 2002 · 4,582 parts · 202 categories

← Back to categories

4,582 items

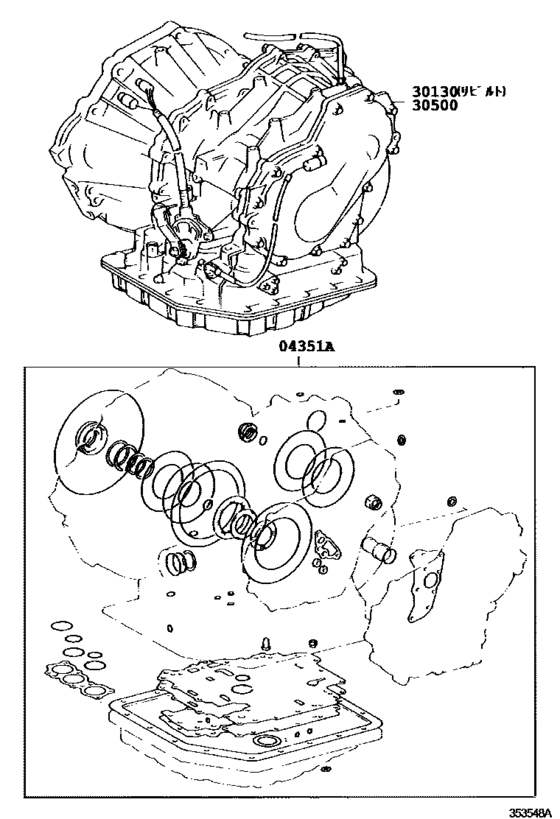

Transaxle Or Transmission Assy & Gasket Kit (Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#) 7

#	OEM	Part name
4351	04351-21120	Gasket Kit, Transaxle Overhaul(Atm)
4351	04351-32100	Gasket Kit, Transaxle Overhaul(Atm)
4351	04351-44020	Gasket Kit, Transaxle Overhaul(Atm)
30130	30130-21160	Transaxle Assy, Rebuilt
30130	30130-21200	Transaxle Assy, Rebuilt
30500	30500-21160	Transaxle Assy, Automatic
30500	30500-21200	Transaxle Assy, Automatic

OEM	Part name	Category
04351-21120	Gasket Kit, Transaxle Overhaul(Atm)	Transaxle Or Transmission Assy & Gasket Kit (Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
04351-32100	Gasket Kit, Transaxle Overhaul(Atm)	Transaxle Or Transmission Assy & Gasket Kit (Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
04351-44020	Gasket Kit, Transaxle Overhaul(Atm)	Transaxle Or Transmission Assy & Gasket Kit (Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
30130-21160	Transaxle Assy, Rebuilt	Transaxle Or Transmission Assy & Gasket Kit (Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
30130-21200	Transaxle Assy, Rebuilt	Transaxle Or Transmission Assy & Gasket Kit (Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
30500-21160	Transaxle Assy, Automatic	Transaxle Or Transmission Assy & Gasket Kit (Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
30500-21200	Transaxle Assy, Automatic	Transaxle Or Transmission Assy & Gasket Kit (Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 202
Collected: 2026-08-02
