Search › Model › AZT246

AZT246

Toyota CALDINA · 2002 · 4,582 parts · 202 categories

4,582 items

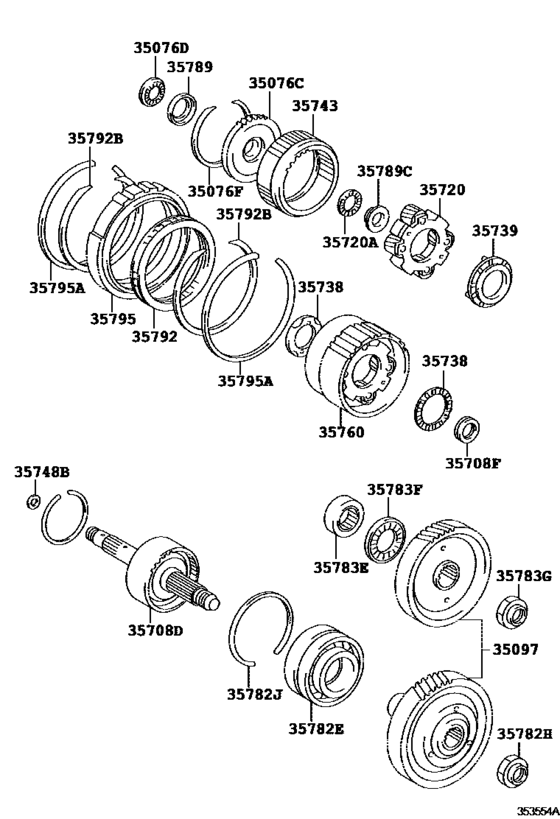

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#) 25

#	OEM	Part name
35076	35076-12020	Flange Sub-Assy, Front Planetary Ring Gear
35076	90374-25009	Bearing, Thrust Needle Roller(For Front Planetary Flange)
35076	90521-99014	Ring, Hole Snap (For Front Planetary Ring Gear Flange)
35097	35097-20070	Counter Gear Kit, Automatic Transaxle
35708	35708-12070	Shaft Sub-Assy, Intermediate
35708	90374-22003	Bearing, Thrust Needle Roller (For Intermediate Shaft)
35720	35720-17010	Gear Assy, Front Planetary
35720	90374-22009	Bearing, Thrust Needle Roller (For Front Planetary Gear)
35738	35738-32010	Washer, Planetary Carrier Thrust, No.2
35739	35739-32011	Washer, Planetary Carrier Thrust, No.3
35743	35743-32040	Gear, Front Planetary Ring
35748	35748-32010	Ring, Intermediate Shaft Oil Seal (For Overdrive)
35760	35760-32030	Gear Assy, Rear Planetary
35782	90363-40070	Bearing(For Counter Drive Gear)
35782	90179-22021	Nut(For Counter Drive Gear)
35782	90520-75003	Ring, Snap
35783	90365-37001	Bearing, Cylindrical Roller(For Counter Driven Gear)
35783	90365-37004	Bearing, Cylindrical Roller, No.1 (For Underdrive)
35783	90374-41001	Bearing, Thrust Needle Roller(For Counter Driven Gear)
35789	35789-12040	Race, Thrust Bearing (For Front Planetary Flange Front)
35789	35789-32060	Race, Thrust Bearing (For Front Planetary Gear Front)
35792	35792-44010	Clutch, 1 Way, No.2
35792	90521-99010	Ring, Hole Snap (For 1 Way Clutch No.2)
35795	35795-12020	Race, 1 Way Clutch Outer
35795	90521-99011	Ring, Hole Snap (For Overdrive Brake Flange)

OEM	Part name	Category
35076-12020	Flange Sub-Assy, Front Planetary Ring Gear	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
35097-20070	Counter Gear Kit, Automatic Transaxle	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
35708-12070	Shaft Sub-Assy, Intermediate	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
35720-17010	Gear Assy, Front Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
35738-32010	Washer, Planetary Carrier Thrust, No.2	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
35739-32011	Washer, Planetary Carrier Thrust, No.3	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
35743-32040	Gear, Front Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
35748-32010	Ring, Intermediate Shaft Oil Seal (For Overdrive)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
35760-32030	Gear Assy, Rear Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
35789-12040	Race, Thrust Bearing (For Front Planetary Flange Front)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
35789-32060	Race, Thrust Bearing (For Front Planetary Gear Front)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
35792-44010	Clutch, 1 Way, No.2	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
35795-12020	Race, 1 Way Clutch Outer	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
90179-22021	Nut(For Counter Drive Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
90363-40070	Bearing(For Counter Drive Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
90365-37001	Bearing, Cylindrical Roller(For Counter Driven Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
90365-37004	Bearing, Cylindrical Roller, No.1 (For Underdrive)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
90374-22003	Bearing, Thrust Needle Roller (For Intermediate Shaft)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
90374-22009	Bearing, Thrust Needle Roller (For Front Planetary Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
90374-25009	Bearing, Thrust Needle Roller(For Front Planetary Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
90374-41001	Bearing, Thrust Needle Roller(For Counter Driven Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
90520-75003	Ring, Snap	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
90521-99010	Ring, Hole Snap (For 1 Way Clutch No.2)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
90521-99011	Ring, Hole Snap (For Overdrive Brake Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)
90521-99014	Ring, Hole Snap (For Front Planetary Ring Gear Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A247E,A248F (0209- )AZT24#)

Source: Public OEM parts-catalog data
