Search › Model › AZT246

AZT246

Toyota CALDINA · 2002 · 4,582 parts · 202 categories
AZT246 ×

← Back to categories

4,582 items

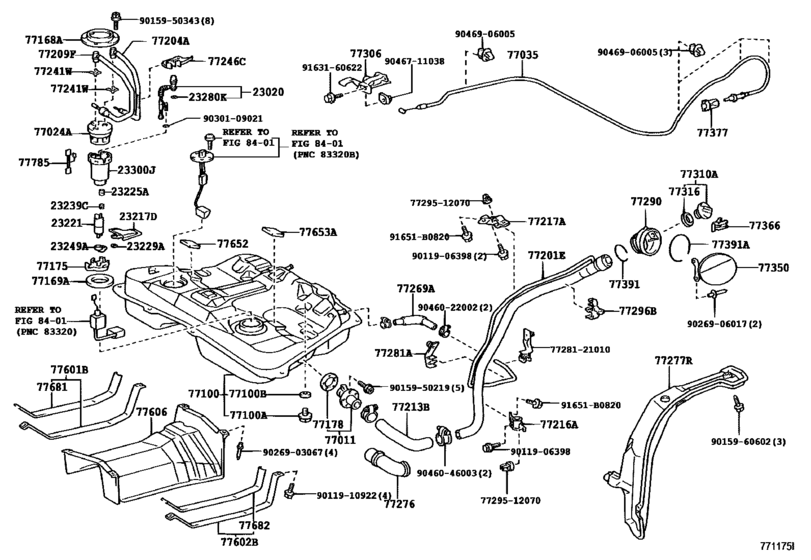

Fuel Tank & Tube ([09.2002 - ] ﾌﾕ-ｴﾙ ﾀﾝｸ (0209- )AZT246) 83
#OEMPart name
23020 23020-28020 Regulator Assy, Fuel Pressure W/jet Pump
23217 23217-28250 Filter, Fuel Pump
23217 23217-0D070 Filter, Fuel Pump
23221 23221-28040 Pump Assy, Fuel
23221 23221-28290 Pump Assy, Fuel
23225 23225-21010 Spacer, Fuel Pump
23229 23229-16010 Clip(For Fuel Pump Filter)
23229 23219-03010 Clip(For Fuel Pump Filter)
23239 23239-21010 Seal, Fuel Pump Filter
23249 23249-74610 Rubber, Cushion(For Fuel Pump)
23280 90301-07041 Ring, O(For Fuel Pressure Regulator)
23300 23300-28030 Filter Assy, Fuel
23300 23300-28040 Filter Assy, Fuel
77011 77011-63010 Pipe Sub-Assy, Fuel Tank Filler, Lower
77024 77024-42010 Plate Sub-Assy, Fuel Suction
77035 77035-21040 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-20800 Tank Assy, Fuel
77100 77001-20820 Tank Assy, Fuel
77100 77001-32140 Tank Assy, Fuel
77100 90105-12116 Plug(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank)
77168 77168-52010 Plate, Fuel Tank Vent Tube Set
77169 77169-33020 Gasket, Fuel Pump Bracket
77175 77175-52020 Support, Fuel Suction, No.2
77178 77178-20030 Gasket, Fuel Tank Filler Pipe, Lower
77201 77201-32190 Pipe Sub-Assy, Fuel Tank Filler
77204 77204-21100 Tube, Fuel Tank Return
77204 77204-21101 Tube, Fuel Tank Return
77209 77209-32030 Tube Sub-Assy, Fuel Tank Main
77213 77213-63010 Hose, Fuel Tank To Filler Pipe
77216 77216-32060 Support, Fuel Tank Filler Pipe, No.1
77217 77217-32050 Support, Fuel Tank Filler Pipe, No.2
77241 77241-32060 Clip, Tube Joint
77246 77246-21010 Support, Fuel Main Tube
77269 77269-32010 Hose, Fuel Tank Breather
77276 77276-12050 Protector, Fuel Hose
77276 77276-12120 Protector, Fuel Hose
77276 77276-12130 Protector, Fuel Hose
77277 77277-32080 Protector, Fuel Tank Filler Pipe
77281 77281-32040 Bracket, Fuel Main Tube, No.1
77290 77291-21040 Shield Assy, Fuel Tank Filler Pipe
77296 77296-32020 Support, Fuel Tube Protector, No.1
77296 77296-32021 Support, Fuel Tube Protector, No.1
77306 77306-21010 Lever Sub-Assy, Fuel Lid Lock Open
77310 77310-48010 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-21060 Lid Assy, Fuel Filler Opening
77366 77360-21010 Spring, Fuel Filler Opening Lid Hinge
77377 77377-12050 Bracket, Fuel Lid Lock Control
77391 77391-12020 Ring, Fuel Inlet Box
77391 77391-63010 Ring, Fuel Inlet Box
77601 77601-32110 Band Sub-Assy, Fuel Tank, No.1
77601 77601-20290 Band Sub-Assy, Fuel Tank, No.1 Rh
77606 77606-32040 Protector Sub-Assy, Fuel Tank, No.1
77606 77606-32041 Protector Sub-Assy, Fuel Tank, No.1
77652 77651-20090 Cushion, Fuel Tank, No.1
77653 77653-60020 Cushion, Fuel Tank, No.3
77653 77653-60060 Cushion, Fuel Tank, No.3
77681 77681-21020 Seat, Fuel Tank Band, Rh
77681 77681-32040 Seat, Fuel Tank Band, Rh
77681 77681-32060 Seat, Fuel Tank Band, Rh
77785 77785-32010 Harness, Fuel Pump
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
7728121010 77281-21010 Clamp, Fuel Filler Pipe
7729512070 77295-12070 Grommet, Fuel Tube
9011906398 90119-06398 BOLT WWASHER
9011910922 90119-10922 BOLT WWASHER
9011910922 90080-11654 New Genuine Part
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9015950343 90159-50343 SCREW, W-WASHER
9015960602 90159-60602 SCREW
9026903067 90269-03067 RIVET
9026906017 90269-06017 RIVET
9030109021 90301-09021 GASKET
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046711038 90467-11038 CLAMP
9046906005 90469-06005 Clamp(For Hood Lock Control Cable)
9163160622 91631-60622 Screw
