AZT246

Toyota CALDINA · 2002 · 4,582 parts · 202 categories

4,582 items

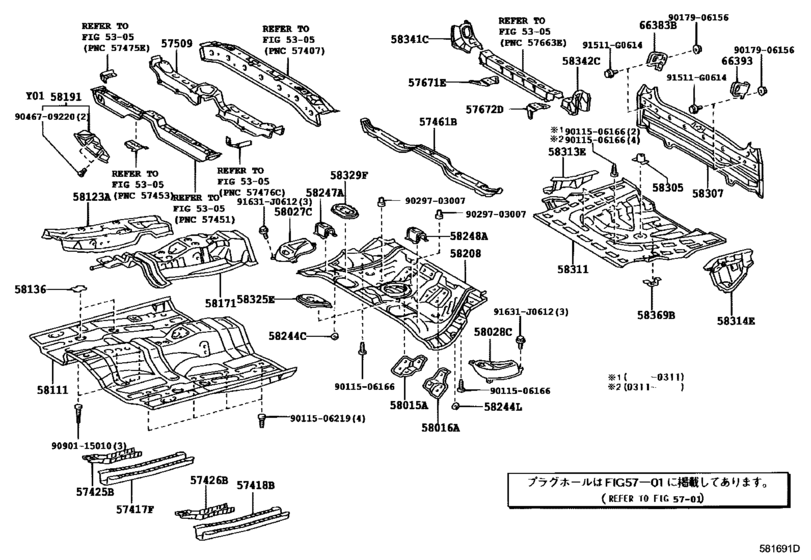

Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246) 46

#	OEM	Part name
57417	57417-20110	Reinforcement, Front Floor Under, Rh
57425	57423-21010	Reinforcement, Front Floor, No.2 Rh
57461	57461-21040	Member Sub-Assy, Center Floor Cross, No.1
57509	57509-21020	Reinforcement Sub-Assy, Front Floor, Center
57671	57671-21020	Bracket, Rear Seat Back Hinge Mounting, Rh
57672	57672-21020	Blacket, Rear Seat Back Hinge Mounting, Lh
58015	58015-12070	Reinforce Sub-Assy, Belt Anchor, No.3 Rh
58016	58016-13040	Reinforce Sub-Assy, Belt Anchor, No.3 Lh
58027	58027-21030	Panel Sub-Assy, Center Floor Side, Rh
58028	58028-21010	Panel Sub-Assy, Center Floor Side, Lh
58111	58111-20905	Pan, Front Floor
58111	58111-20907	Pan, Front Floor
58111	58111-20926	Pan, Front Floor
58111	90333-48001	Plate, Quarter Panel, Upper No.1
58123	58123-20121	Support, Shift & Select Lever
58123	58123-20122	Support, Shift & Select Lever
58136	58136-33010	Cover, Front Floor Hole
58171	58107-21020	Reinforcement, Parking Brake Base
58191	58190-21010	Footrest, Front Floor
58191	58190-21011	Footrest, Front Floor
58208	58211-20530	Pan, Center Floor
58244	58244-13030	Bracket, Rear Seat Cushion Mounting
58247	58247-20040	Reinforcement, Rear Seat Cushion Hinge, Rh
58305	58351-33010	Bracket Sub-Assy, Spare Wheel Clamp
58307	58307-21060	Panel Sub-Assy, Body Lower Back
58307	58307-21061	Panel Sub-Assy, Body Lower Back
58311	58311-21900	Pan, Rear Floor
58311	58311-21905	Pan, Rear Floor
58311	58311-21901	Pan, Rear Floor
58313	58313-21050	Extension, Rear Floor Side Panel, Rh
58314	58314-21050	Extension, Rear Floor Side Panel, Lh
58325	58325-32050	Cover, Rear Floor Service Hole
58329	58329-32020	Cover, Rear Floor Service Hole, No.2
58341	58341-21010	Bracket, Rear Absorber Mounting, No.1 Rh
58342	58342-21010	Bracket, Rear Absorber Mounting, No.1 Lh
58369	58369-20020	Bracket, Center Floor Heat Insulator
66383	66383-21010	Bracket, Rope Hook, No.1 Rh
66393	66393-21010	Bracket, Rope Hook, No.1 Lh
91511	91511-G0614	BOLTFLANGE
91631	91631-J0612	BRACKET
9011506166	90115-06166	Bolt, Weld(For Front Floor Pan)
9011506219	90115-06219	Bolt, Weld(For Front Floor Pan, Lh)
9017906156	90179-06156	Nut (For Transmission Control Cable)
9029703007	90297-03007	Retainer, Rear Heater Mounting
9046709220	90467-09220	Clip, Footrest
9090115010	90901-15010	New Genuine Part

OEM	Part name	Category
57417-20110	Reinforcement, Front Floor Under, Rh	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
57423-21010	Reinforcement, Front Floor, No.2 Rh	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
57461-21040	Member Sub-Assy, Center Floor Cross, No.1	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
57509-21020	Reinforcement Sub-Assy, Front Floor, Center	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
57671-21020	Bracket, Rear Seat Back Hinge Mounting, Rh	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
57672-21020	Blacket, Rear Seat Back Hinge Mounting, Lh	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58015-12070	Reinforce Sub-Assy, Belt Anchor, No.3 Rh	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58016-13040	Reinforce Sub-Assy, Belt Anchor, No.3 Lh	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58027-21030	Panel Sub-Assy, Center Floor Side, Rh	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58028-21010	Panel Sub-Assy, Center Floor Side, Lh	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58107-21020	Reinforcement, Parking Brake Base	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58111-20905	Pan, Front Floor	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58111-20907	Pan, Front Floor	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58111-20926	Pan, Front Floor	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58123-20121	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58123-20122	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58136-33010	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58190-21010	Footrest, Front Floor	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58190-21011	Footrest, Front Floor	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58211-20530	Pan, Center Floor	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58244-13030	Bracket, Rear Seat Cushion Mounting	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58247-20040	Reinforcement, Rear Seat Cushion Hinge, Rh	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58307-21060	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58307-21061	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58311-21900	Pan, Rear Floor	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58311-21901	Pan, Rear Floor	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58311-21905	Pan, Rear Floor	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58313-21050	Extension, Rear Floor Side Panel, Rh	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58314-21050	Extension, Rear Floor Side Panel, Lh	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58325-32050	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58329-32020	Cover, Rear Floor Service Hole, No.2	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58341-21010	Bracket, Rear Absorber Mounting, No.1 Rh	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58342-21010	Bracket, Rear Absorber Mounting, No.1 Lh	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58351-33010	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
58369-20020	Bracket, Center Floor Heat Insulator	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
66383-21010	Bracket, Rope Hook, No.1 Rh	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
66393-21010	Bracket, Rope Hook, No.1 Lh	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
90115-06166	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
90115-06219	Bolt, Weld(For Front Floor Pan, Lh)	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
90179-06156	Nut (For Transmission Control Cable)	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
90297-03007	Retainer, Rear Heater Mounting	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
90333-48001	Plate, Quarter Panel, Upper No.1	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
90467-09220	Clip, Footrest	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
90901-15010	New Genuine Part	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
91511-G0614	BOLTFLANGE	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
91631-J0612	BRACKET	Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT246,ST246)
