AZT241

Toyota CALDINA · 2002 · 4,143 parts · 194 categories

← Back to categories

4,143 items

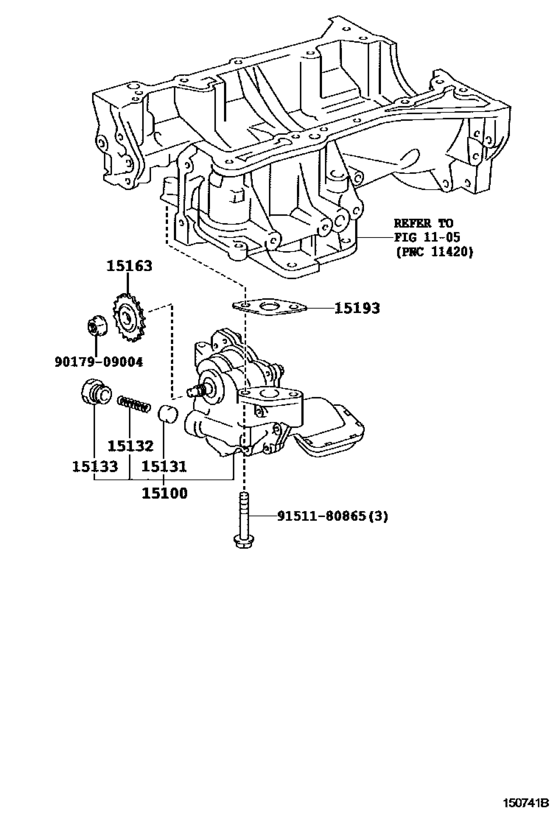

Engine Oil Pump ([09.2002 - 01.2005] (0209-0501)1AZFSE) 11

#	OEM	Part name
15100	15100-28030	Pump Assy, Oil
15100	15100-28040	Pump Assy, Oil
15131	15131-46040	Valve, Oil Pump Relief
15132	15132-28020	Spring, Oil Pump Relief Valve
15132	15132-46020	Spring, Oil Pump Relief Valve
15133	15133-28020	Plug, Oil Pump Relief Valve
15163	15163-28010	Gear, Oil Pump Drive Shaft
15163	15163-28020	Gear, Oil Pump Drive Shaft
15193	15193-28010	Gasket, Oil Pump
9017909004	90179-09004	NUT
9151180865	91511-80865	Bolt(For Cylinder Head Set Sub)

OEM	Part name	Category
15100-28030	Pump Assy, Oil	Engine Oil Pump ([09.2002 - 01.2005] (0209-0501)1AZFSE)
15100-28040	Pump Assy, Oil	Engine Oil Pump ([09.2002 - 01.2005] (0209-0501)1AZFSE)
15131-46040	Valve, Oil Pump Relief	Engine Oil Pump ([09.2002 - 01.2005] (0209-0501)1AZFSE)
15132-28020	Spring, Oil Pump Relief Valve	Engine Oil Pump ([09.2002 - 01.2005] (0209-0501)1AZFSE)
15132-46020	Spring, Oil Pump Relief Valve	Engine Oil Pump ([09.2002 - 01.2005] (0209-0501)1AZFSE)
15133-28020	Plug, Oil Pump Relief Valve	Engine Oil Pump ([09.2002 - 01.2005] (0209-0501)1AZFSE)
15163-28010	Gear, Oil Pump Drive Shaft	Engine Oil Pump ([09.2002 - 01.2005] (0209-0501)1AZFSE)
15163-28020	Gear, Oil Pump Drive Shaft	Engine Oil Pump ([09.2002 - 01.2005] (0209-0501)1AZFSE)
15193-28010	Gasket, Oil Pump	Engine Oil Pump ([09.2002 - 01.2005] (0209-0501)1AZFSE)
90179-09004	NUT	Engine Oil Pump ([09.2002 - 01.2005] (0209-0501)1AZFSE)
91511-80865	Bolt(For Cylinder Head Set Sub)	Engine Oil Pump ([09.2002 - 01.2005] (0209-0501)1AZFSE)
