AZT220

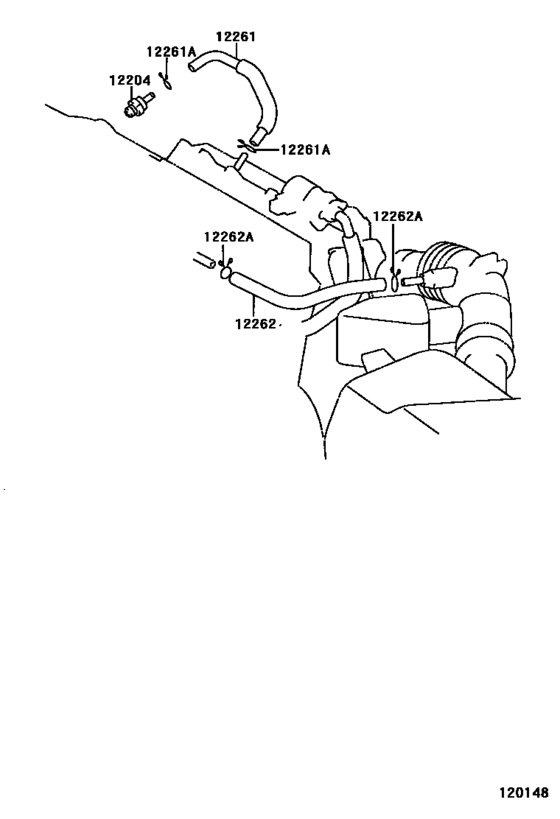

Ventilation Hose ([07.2000 - ] (0007- )1AZFSE) 5
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-28020 | Valve Sub-Assy, Ventilation |
| 12261 | 12261-28040 | Hose, Ventilation, No.2 |
| 12261 | 90467-13103 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12262-28050 | Hose, Ventilation, No.2 |
| 12262 | 90467-21152 | Clip Or Clamp(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 12204-28020 | Valve Sub-Assy, Ventilation | Ventilation Hose ([07.2000 - ] (0007- )1AZFSE) |
| 12261-28040 | Hose, Ventilation, No.2 | Ventilation Hose ([07.2000 - ] (0007- )1AZFSE) |
| 12262-28050 | Hose, Ventilation, No.2 | Ventilation Hose ([07.2000 - ] (0007- )1AZFSE) |
| 90467-13103 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([07.2000 - ] (0007- )1AZFSE) |
| 90467-21152 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([07.2000 - ] (0007- )1AZFSE) |
