AZT220

Toyota AVENSIS · 2000 · 4,499 parts · 194 categories
AZT220 ×

← Back to categories

4,499 items

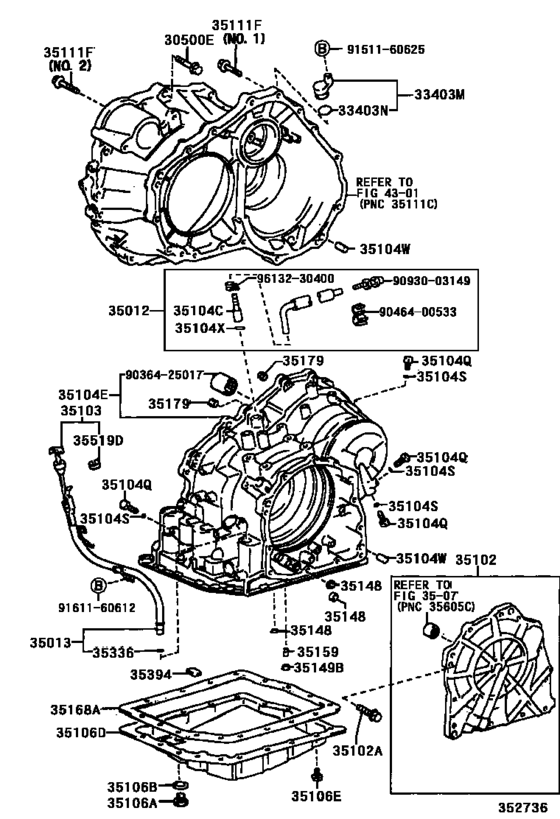

Transmission Case & Oil Pan (Atm) ([07.2000 - ] U240E (0007- )AZT220..ATM) 45
#OEMPart name
30500 90119-12168 Bolt(For Transaxle & Engine Setting)
30500 91512-61050 Bolt(For Alternator)
30500 91512-61065 Bolt(For Transaxle & Engine Setting)
33403 33403-20230 Cover Sub-Assy, Speedometer Driven Hole
33403 96711-24018 Ring, O
35012 35012-21021 Hose Sub-Assy, Transmission Breather
35013 35013-20810 Tube Sub-Assy, Transmission Oil Filler
35102 35102-32010 Cover Sub-Assy, Transaxle Rear
35102 90105-08071 Bolt (For Transaxle Rear Cover Setting)
35103 35103-20450 Gage Sub-Assy, Transmission Oil Level
35104 90930-03157 Plug, Breather, No.2 (Atm)
35104 35104-32080 Case Sub-Assy, Automatic Transaxle
35104 90341-08001 Plug, Transaxle Case, No.1
35104 90301-06196 O Ring, Transaxle Case, No.1
35104 90250-10036 Pin, Straight (For Transaxle Case)
35104 90250-10232 Pin, Straight(For Engine Rear Oil Seal)
35104 90301-06005 Ring, O (For Breather Plug)
35106 90341-18016 Plug, W/head Straight Screw(For Transaxle Housing & Case)
35106 90430-18008 Gasket
35106 90430-T0021 Gasket(For Manual Transmission Filler Plug)
35106 35106-21020 Pan Sub-Assy, Automatic Transaxle Oil
35106 35106-33030 Pan Sub-Assy, Automatic Transaxle Oil
35106 35330-06010 Strainer Assy, Valve Body Oil
35106 90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)
35111 90105-08233 Bolt (For Transaxle Housing & Transaxle Case Setting)
35111 90080-10187 Bolt (For Transaxle Housing & Transaxle Case Setting)
35111 90105-08353 Bolt(For Head To Camshaft Bearing Cap)
35148 35145-21010 Gasket, Transaxle Case
35149 35149-21010 Gasket, Transaxle Case 2Nd Brake
35159 35159-21010 Gasket, Brake Drum
35168 35168-21010 Gasket, Automatic Transaxle Oil Pan
35168 35168-21011 Gasket, Automatic Transaxle Oil Pan
35179 35179-32010 Gasket, Overdrive Brake
35336 90301-09173 Ring, O(For Transmission Oil Filler Tube)
35394 35394-30011 Magnet, Oil Cleaner (For Transmission)
35519 35519-20030 Label, Automatic Transmission Information
9036425017 90364-25017 New Genuine Part
9046400533 90464-00533 New Genuine Part
9093003149 90930-03149 Plug Sub-Assy, Breather(For Transmission)
9151160625 91511-60625 Bolt(For Cylinder Head Cover)
9151160625 91511-J0625 Bolt(For Cylinder Head Cover)
9161160612 91611-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612 91611-G0612 Bolt
9613230400 96132-30400 Clip Or Clamp(For Ventilation Hose)
9613230400 96132-51000 Clip Or Clamp(For Ventilation Hose)
