Search › Model › AZT220

AZT220

Toyota AVENSIS · 2000 · 4,499 parts · 194 categories

← Back to categories

4,499 items

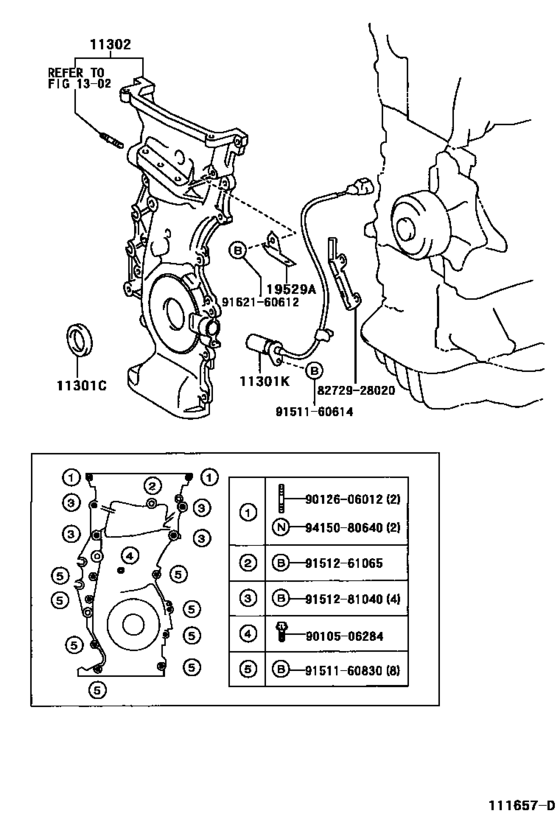

Timing Gear Cover & Rear End Plate ([07.2000 - ] (0007- )1AZFSE) 19

#	OEM	Part name
11301	90311-38078	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301	90311-38089	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301	90919-05047	Sensor, Crank Position
11302	11310-28080	Cover Sub-Assy, Timing Chain Or Belt
11302	11310-28081	Cover Sub-Assy, Timing Chain Or Belt
11302	11321-28030	Cover Sub-Assy, Timing Chain Or Belt
19529	19529-28010	Clamp
8272928020	82729-28020	New Genuine Part
9010506284	90105-06284	New Genuine Part
9012606012	90126-06012	STUD, HEX LOBULAR
9151160614	91511-60614	LEXBOLT
9151160614	91511-B0614	BOLT, FLANGE
9151160830	91511-60830	Bolt Or Ring, Exhaust Pipe Front (For Front)
9151160830	91511-B0830	Bolt Or Ring, Exhaust Pipe Front (For Front)
9151261065	91512-61065	Bolt(For Transaxle & Engine Setting)
9151281040	91512-81040	BOLTFLANGE
9162160612	91621-60612	BOLTWWASHER
9162160612	91621-J0612	BOLT W-WASHER
9415080640	94150-80640	NUT FLANGE

OEM	Part name	Category
11310-28080	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([07.2000 - ] (0007- )1AZFSE)
11310-28081	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([07.2000 - ] (0007- )1AZFSE)
11321-28030	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([07.2000 - ] (0007- )1AZFSE)
19529-28010	Clamp	Timing Gear Cover & Rear End Plate ([07.2000 - ] (0007- )1AZFSE)
82729-28020	New Genuine Part	Timing Gear Cover & Rear End Plate ([07.2000 - ] (0007- )1AZFSE)
90105-06284	New Genuine Part	Timing Gear Cover & Rear End Plate ([07.2000 - ] (0007- )1AZFSE)
90126-06012	STUD, HEX LOBULAR	Timing Gear Cover & Rear End Plate ([07.2000 - ] (0007- )1AZFSE)
90311-38078	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([07.2000 - ] (0007- )1AZFSE)
90311-38089	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([07.2000 - ] (0007- )1AZFSE)
90919-05047	Sensor, Crank Position	Timing Gear Cover & Rear End Plate ([07.2000 - ] (0007- )1AZFSE)
91511-60614	LEXBOLT	Timing Gear Cover & Rear End Plate ([07.2000 - ] (0007- )1AZFSE)
91511-60830	Bolt Or Ring, Exhaust Pipe Front (For Front)	Timing Gear Cover & Rear End Plate ([07.2000 - ] (0007- )1AZFSE)
91511-B0614	BOLT, FLANGE	Timing Gear Cover & Rear End Plate ([07.2000 - ] (0007- )1AZFSE)
91511-B0830	Bolt Or Ring, Exhaust Pipe Front (For Front)	Timing Gear Cover & Rear End Plate ([07.2000 - ] (0007- )1AZFSE)
91512-61065	Bolt(For Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([07.2000 - ] (0007- )1AZFSE)
91512-81040	BOLTFLANGE	Timing Gear Cover & Rear End Plate ([07.2000 - ] (0007- )1AZFSE)
91621-60612	BOLTWWASHER	Timing Gear Cover & Rear End Plate ([07.2000 - ] (0007- )1AZFSE)
91621-J0612	BOLT W-WASHER	Timing Gear Cover & Rear End Plate ([07.2000 - ] (0007- )1AZFSE)
94150-80640	NUT FLANGE	Timing Gear Cover & Rear End Plate ([07.2000 - ] (0007- )1AZFSE)

Source: Public OEM parts-catalog data
Variants: 2 / 18
Category: 194
Collected: 2026-08-02
