AZT220

Toyota AVENSIS · 2000 · 4,499 parts · 194 categories

4,499 items

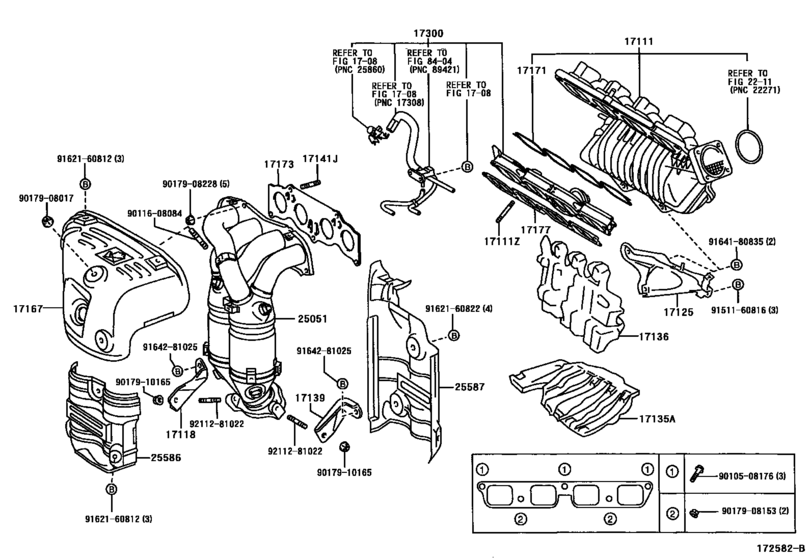

Manifold ([07.2000 - ] (0007- )1AZFSE) 32

#	OEM	Part name
17111	17101-28040	Manifold, Intake
17111	17101-28041	Manifold, Intake
17111	90126-08021	Bolt, Stud(For Intake Manifold To Cylinder Head)
17118	17118-28020	Stay, Manifold
17125	17125-28010	Stay, Surge Tank, No.1
17135	17135-28020	Insulator, Intake Manifold, No.1
17136	17136-28010	Insulator, Intake Manifold, No.2
17139	17139-28010	Stay, Manifold, No.2
17141	90126-08037	Bolt, Stud(For Oil Strainer)
17167	17167-28010	Insulator, Exhaust Manifold Heat, No.1
17171	17171-28010	Gasket, Intake To Exhaust Manifold
17173	17173-28010	Gasket, Exhaust Manifold To Head
17177	17177-28020	Gasket, Intake Manifold To Head, No.1
17300	17300-28020	Valve Assy, Intake Air Control
17300	17300-28010	Valve Assy, Intake Air Control
25051	25051-28070	Converter Sub-Assy, Exhaust Manifold
25586	25586-28010	Insulator, Manifold Converter, No.1
25587	25587-28010	Insulator, Manifold Converter, No.2
9010508176	90105-08176	BOLT
9011608084	90116-08084	Bolt, Stud(For Head To Cylinder Head Cover)
9017908017	90179-08017	NUT
9017908153	90179-08153	NUT
9017908228	90179-08228	NUT
9017910165	90179-10165	NUT
9151160816	91511-60816	BOLT
9151160816	91511-B0816	BOLT
9162160812	91621-60812	BOLTWWASHER
9162160812	91651-B0814	Bolt with washer
9162160822	91621-60822	Bolt, W/washer(For Repair Actuator Set)
9164180835	91641-80835	Bolt, Compressor, No.1
9164281025	91642-81025	BOLT WWASHER
9211281022	92112-81022	BOLT STUD

OEM	Part name	Category
17101-28040	Manifold, Intake	Manifold ([07.2000 - ] (0007- )1AZFSE)
17101-28041	Manifold, Intake	Manifold ([07.2000 - ] (0007- )1AZFSE)
17118-28020	Stay, Manifold	Manifold ([07.2000 - ] (0007- )1AZFSE)
17125-28010	Stay, Surge Tank, No.1	Manifold ([07.2000 - ] (0007- )1AZFSE)
17135-28020	Insulator, Intake Manifold, No.1	Manifold ([07.2000 - ] (0007- )1AZFSE)
17136-28010	Insulator, Intake Manifold, No.2	Manifold ([07.2000 - ] (0007- )1AZFSE)
17139-28010	Stay, Manifold, No.2	Manifold ([07.2000 - ] (0007- )1AZFSE)
17167-28010	Insulator, Exhaust Manifold Heat, No.1	Manifold ([07.2000 - ] (0007- )1AZFSE)
17171-28010	Gasket, Intake To Exhaust Manifold	Manifold ([07.2000 - ] (0007- )1AZFSE)
17173-28010	Gasket, Exhaust Manifold To Head	Manifold ([07.2000 - ] (0007- )1AZFSE)
17177-28020	Gasket, Intake Manifold To Head, No.1	Manifold ([07.2000 - ] (0007- )1AZFSE)
17300-28010	Valve Assy, Intake Air Control	Manifold ([07.2000 - ] (0007- )1AZFSE)
17300-28020	Valve Assy, Intake Air Control	Manifold ([07.2000 - ] (0007- )1AZFSE)
25051-28070	Converter Sub-Assy, Exhaust Manifold	Manifold ([07.2000 - ] (0007- )1AZFSE)
25586-28010	Insulator, Manifold Converter, No.1	Manifold ([07.2000 - ] (0007- )1AZFSE)
25587-28010	Insulator, Manifold Converter, No.2	Manifold ([07.2000 - ] (0007- )1AZFSE)
90105-08176	BOLT	Manifold ([07.2000 - ] (0007- )1AZFSE)
90116-08084	Bolt, Stud(For Head To Cylinder Head Cover)	Manifold ([07.2000 - ] (0007- )1AZFSE)
90126-08021	Bolt, Stud(For Intake Manifold To Cylinder Head)	Manifold ([07.2000 - ] (0007- )1AZFSE)
90126-08037	Bolt, Stud(For Oil Strainer)	Manifold ([07.2000 - ] (0007- )1AZFSE)
90179-08017	NUT	Manifold ([07.2000 - ] (0007- )1AZFSE)
90179-08153	NUT	Manifold ([07.2000 - ] (0007- )1AZFSE)
90179-08228	NUT	Manifold ([07.2000 - ] (0007- )1AZFSE)
90179-10165	NUT	Manifold ([07.2000 - ] (0007- )1AZFSE)
91511-60816	BOLT	Manifold ([07.2000 - ] (0007- )1AZFSE)
91511-B0816	BOLT	Manifold ([07.2000 - ] (0007- )1AZFSE)
91621-60812	BOLTWWASHER	Manifold ([07.2000 - ] (0007- )1AZFSE)
91621-60822	Bolt, W/washer(For Repair Actuator Set)	Manifold ([07.2000 - ] (0007- )1AZFSE)
91641-80835	Bolt, Compressor, No.1	Manifold ([07.2000 - ] (0007- )1AZFSE)
91642-81025	BOLT WWASHER	Manifold ([07.2000 - ] (0007- )1AZFSE)
91651-B0814	Bolt with washer	Manifold ([07.2000 - ] (0007- )1AZFSE)
92112-81022	BOLT STUD	Manifold ([07.2000 - ] (0007- )1AZFSE)
