Search › Model › AZT220

AZT220

Toyota AVENSIS · 2000 · 4,499 parts · 194 categories
AZT220 ×

← Back to categories

4,499 items

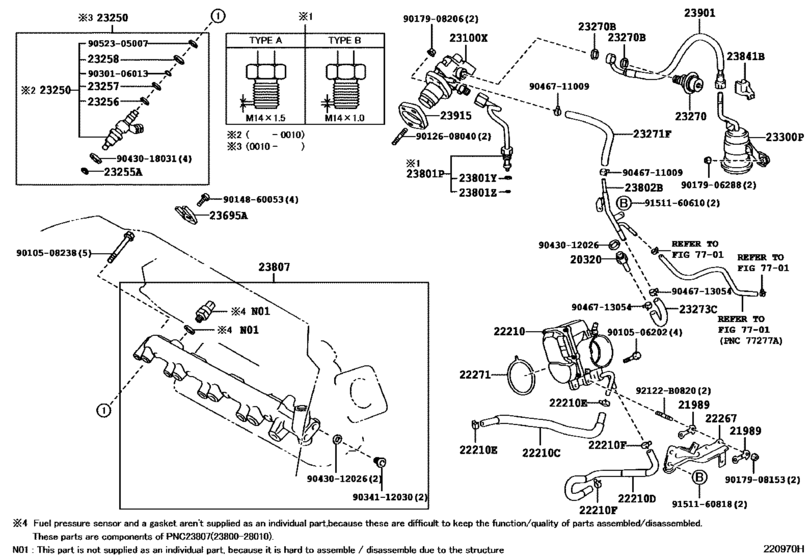

Fuel Injection System ([07.2000 - 05.2002] (0007-0205)1AZFSE) 71
#OEMPart name
20320 20320-28010 Valve Assy, Fuel Relief
20320 20320-28011 Valve Assy, Fuel Relief
21989 21989-28010 Insulator, Plate
22210 22030-28010 Body Assy, Throttle W/motor
22210 22030-28011 Body Assy, Throttle W/motor
22210 22030-28020 Body Assy, Throttle
22210 16261-28030 Hose, Water By-Pass, No.1
22210 16264-28030 Hose, Water By-Pass, No.2
22210 96135-41300 Clamp Or Clip, Hose(For Water By-Pass Hose)
22210 96135-51300 Clamp, Hose
22267 22267-28021 Bracket, Throttle Body
22271 22271-28030 Gasket, Throttle Body
23100 23100-28030 Pump Assy, Fuel
23100 23100-28034 Pump Assy, Fuel
23250 23209-29025 Injector Assy, Fuel
23250 23209-29027-A0 Injector Set, Fuel
23250 23209-29027-B0 Injector Set, Fuel
23250 23209-28030 Injector Assy, Fuel
23255 23255-28010 Seal, Fuel Injector
23256 23256-74010 Ring, Fuel Injector Back-Up, No.1
23257 23257-74010 Ring, Fuel Injector Back-Up, No.1
23258 23258-28010 Ring, Fuel Injector Back-Up, No.3
23258 23258-28011 Ring, Fuel Injector Back-Up, No.1
23258 23258-74010 Ring, Fuel Injector Back-Up, No.3
23270 23270-28040 Damper Assy, Fuel Pressure Pulsation
23270 23270-31051 Damper Assy, Fuel Pressure Pulsation
23270 23279-74010 Gasket(For Fuel Pump Hose)
23271 23271-28050 Hose, Fuel
23271 23271-28051 Hose, Fuel
23273 23273-28010 Hose, Fuel, No.2
23300 23300-28020 Filter, Fuel(For Efi)
23695 23695-28010 Clamp, Nozzle Holder
23801 23801-28040 Pipe Sub-Assy, Fuel, No.1
23801 23801-28060 Pipe Sub-Assy, Fuel, No.1
23801 23801-28041 Pipe Sub-Assy, Fuel, No.1
23801 23801-28070 Pipe Sub-Assy, Fuel, No.1
23801 23801-28043 Pipe Sub-Assy, Fuel, No.1
23801 23801-28050 Pipe Sub-Assy, Fuel, No.1
23801 90430-07006 Gasket
23801 90520-05003 Ring, Snap(For Fuel Pipe)
23802 23802-28020 Pipe Sub-Assy, Fuel, No.2
23807 23807-28030 Pipe Sub-Assy, Fuel Delivery
23807 23800-28010 Pipe Sub-Assy, Fuel Delivery
23807 91621-J0614 BOLT W-WASHER
23807 23807-28031 Pipe Sub-Assy, Fuel Delivery
23807 23807-28033 Pipe Sub-Assy, Fuel Delivery
23841 23841-21020 Clamp, Fuel Pipe, No.1(For Efi)
23901 23901-28060 Tube Sub-Assy, Fuel
23915 23915-46011 Insulator, Fuel Pump
23915 23915-46010 Insulator, Fuel Pump
92122 92122-B0820 Bolt, Stud(For Water Outlet)
9010506202 90105-06202 Bolt(For Cylinder Head Cover)
9010508238 90105-08238 New Genuine Part
9012608040 90126-08040 New Genuine Part
9014860053 90148-60053 New Genuine Part
9017906288 90179-06288 NUT
9017908153 90179-08153 NUT
9017908206 90179-08206 Nut(For Front Suspension Support)
9030106013 90301-06013 Ring, O(For Fuel Injector)
9030106013 90301-06018 Ring, O(For Fuel Injector)
9034112030 90341-12030 Plug, Fuel Delivary Pipe
9043012026 90430-12026 Gasket
9043018031 90430-18031 GASKETROUND TYPE
9046711009 90467-11009 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046711009 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
9046713054 90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose)
9052305007 90523-05007 RING E
9151160610 91511-60610 New Genuine Part
9151160610 91511-B0610 BOLT FLANGE
9151160818 91511-60818 New Genuine Part
9151160818 91511-B0818 BOLT FLANGE
