Search › Model › AZT220

AZT220

Toyota AVENSIS · 2000 · 4,499 parts · 194 categories

4,499 items

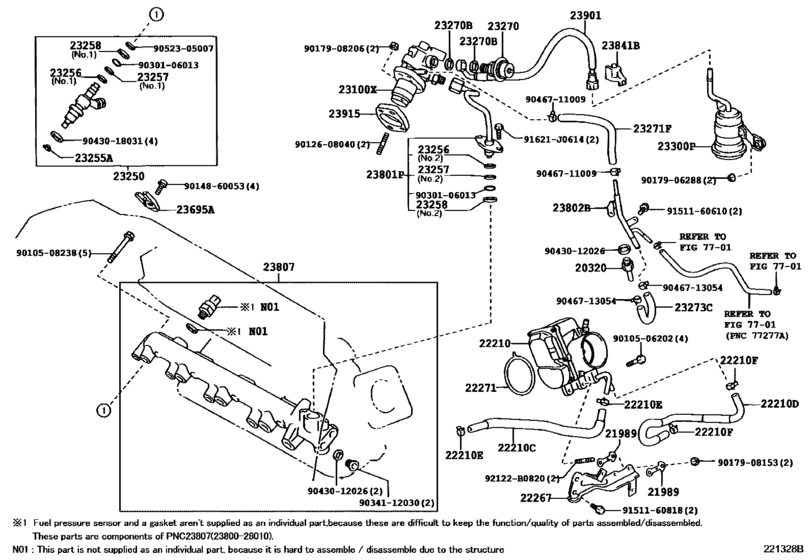

Fuel Injection System ([05.2002 - ] (0205- )1AZFSE) 69

#	OEM	Part name
20320	20320-28010	Valve Assy, Fuel Relief
20320	20320-28011	Valve Assy, Fuel Relief
21989	21989-28010	Insulator, Plate
22210	22030-28010	Body Assy, Throttle W/motor
22210	22030-28011	Body Assy, Throttle W/motor
22210	22030-28020	Body Assy, Throttle
22210	16261-28030	Hose, Water By-Pass, No.1
22210	16264-28030	Hose, Water By-Pass, No.2
22210	96135-41300	Clamp Or Clip, Hose(For Water By-Pass Hose)
22210	96135-51300	Clamp, Hose
22267	22267-28021	Bracket, Throttle Body
22271	22271-28030	Gasket, Throttle Body
23100	23100-28030	Pump Assy, Fuel
23100	23100-28034	Pump Assy, Fuel
23250	23209-29025	Injector Assy, Fuel
23250	23209-29027-A0	Injector Set, Fuel
23250	23209-29027-B0	Injector Set, Fuel
23250	23209-28030	Injector Assy, Fuel
23255	23255-28010	Seal, Fuel Injector
23256	23256-74010	Ring, Fuel Injector Back-Up, No.1
23257	23257-74010	Ring, Fuel Injector Back-Up, No.1
23258	23258-28010	Ring, Fuel Injector Back-Up, No.3
23258	23258-28011	Ring, Fuel Injector Back-Up, No.1
23258	23258-74010	Ring, Fuel Injector Back-Up, No.3
23270	23270-28040	Damper Assy, Fuel Pressure Pulsation
23270	23270-31051	Damper Assy, Fuel Pressure Pulsation
23270	23279-74010	Gasket(For Fuel Pump Hose)
23271	23271-28050	Hose, Fuel
23271	23271-28051	Hose, Fuel
23273	23273-28010	Hose, Fuel, No.2
23300	23300-28020	Filter, Fuel(For Efi)
23695	23695-28010	Clamp, Nozzle Holder
23801	23801-28040	Pipe Sub-Assy, Fuel, No.1
23801	23801-28060	Pipe Sub-Assy, Fuel, No.1
23801	23801-28041	Pipe Sub-Assy, Fuel, No.1
23801	23801-28070	Pipe Sub-Assy, Fuel, No.1
23801	23801-28043	Pipe Sub-Assy, Fuel, No.1
23801	23801-28050	Pipe Sub-Assy, Fuel, No.1
23802	23802-28020	Pipe Sub-Assy, Fuel, No.2
23807	23807-28030	Pipe Sub-Assy, Fuel Delivery
23807	23800-28010	Pipe Sub-Assy, Fuel Delivery
23807	91621-J0614	BOLT W-WASHER
23807	23807-28031	Pipe Sub-Assy, Fuel Delivery
23807	23807-28033	Pipe Sub-Assy, Fuel Delivery
23841	23841-21020	Clamp, Fuel Pipe, No.1(For Efi)
23901	23901-28060	Tube Sub-Assy, Fuel
23915	23915-46011	Insulator, Fuel Pump
23915	23915-46010	Insulator, Fuel Pump
92122	92122-B0820	Bolt, Stud(For Water Outlet)
9010506202	90105-06202	Bolt(For Cylinder Head Cover)
9010508238	90105-08238	New Genuine Part
9012608040	90126-08040	New Genuine Part
9014860053	90148-60053	New Genuine Part
9017906288	90179-06288	NUT
9017908153	90179-08153	NUT
9017908206	90179-08206	Nut(For Front Suspension Support)
9030106013	90301-06013	Ring, O(For Fuel Injector)
9030106013	90301-06018	Ring, O(For Fuel Injector)
9034112030	90341-12030	Plug, Fuel Delivary Pipe
9043012026	90430-12026	Gasket
9043018031	90430-18031	GASKETROUND TYPE
9046711009	90467-11009	Clamp Or Clip, Hose(For Water By-Pass Hose)
9046711009	96135-51100	Clamp Or Clip(For Turbo Oil Outlet Hose)
9046713054	90467-13054	Clamp Or Clip, Hose(For Water By-Pass Hose)
9052305007	90523-05007	RING E
9151160610	91511-60610	New Genuine Part
9151160610	91511-B0610	BOLT FLANGE
9151160818	91511-60818	New Genuine Part
9151160818	91511-B0818	BOLT FLANGE

OEM	Part name	Category
16261-28030	Hose, Water By-Pass, No.1	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
16264-28030	Hose, Water By-Pass, No.2	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
20320-28010	Valve Assy, Fuel Relief	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
20320-28011	Valve Assy, Fuel Relief	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
21989-28010	Insulator, Plate	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
22030-28010	Body Assy, Throttle W/motor	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
22030-28011	Body Assy, Throttle W/motor	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
22030-28020	Body Assy, Throttle	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
22267-28021	Bracket, Throttle Body	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
22271-28030	Gasket, Throttle Body	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23100-28030	Pump Assy, Fuel	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23100-28034	Pump Assy, Fuel	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23209-28030	Injector Assy, Fuel	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23209-29025	Injector Assy, Fuel	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23209-29027-A0	Injector Set, Fuel	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23209-29027-B0	Injector Set, Fuel	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23255-28010	Seal, Fuel Injector	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23256-74010	Ring, Fuel Injector Back-Up, No.1	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23257-74010	Ring, Fuel Injector Back-Up, No.1	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23258-28010	Ring, Fuel Injector Back-Up, No.3	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23258-28011	Ring, Fuel Injector Back-Up, No.1	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23258-74010	Ring, Fuel Injector Back-Up, No.3	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23270-28040	Damper Assy, Fuel Pressure Pulsation	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23270-31051	Damper Assy, Fuel Pressure Pulsation	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23271-28050	Hose, Fuel	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23271-28051	Hose, Fuel	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23273-28010	Hose, Fuel, No.2	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23279-74010	Gasket(For Fuel Pump Hose)	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23300-28020	Filter, Fuel(For Efi)	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23695-28010	Clamp, Nozzle Holder	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23800-28010	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23801-28040	Pipe Sub-Assy, Fuel, No.1	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23801-28041	Pipe Sub-Assy, Fuel, No.1	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23801-28043	Pipe Sub-Assy, Fuel, No.1	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23801-28050	Pipe Sub-Assy, Fuel, No.1	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23801-28060	Pipe Sub-Assy, Fuel, No.1	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23801-28070	Pipe Sub-Assy, Fuel, No.1	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23802-28020	Pipe Sub-Assy, Fuel, No.2	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23807-28030	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23807-28031	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23807-28033	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23841-21020	Clamp, Fuel Pipe, No.1(For Efi)	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23901-28060	Tube Sub-Assy, Fuel	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23915-46010	Insulator, Fuel Pump	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
23915-46011	Insulator, Fuel Pump	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
90105-06202	Bolt(For Cylinder Head Cover)	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
90105-08238	New Genuine Part	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
90126-08040	New Genuine Part	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
90148-60053	New Genuine Part	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
90179-06288	NUT	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
90179-08153	NUT	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
90179-08206	Nut(For Front Suspension Support)	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
90301-06013	Ring, O(For Fuel Injector)	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
90301-06018	Ring, O(For Fuel Injector)	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
90341-12030	Plug, Fuel Delivary Pipe	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
90430-12026	Gasket	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
90430-18031	GASKETROUND TYPE	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
90467-11009	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
90467-13054	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
90523-05007	RING E	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
91511-60610	New Genuine Part	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
91511-60818	New Genuine Part	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
91511-B0610	BOLT FLANGE	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
91511-B0818	BOLT FLANGE	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
91621-J0614	BOLT W-WASHER	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
92122-B0820	Bolt, Stud(For Water Outlet)	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
96135-41300	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
96135-51100	Clamp Or Clip(For Turbo Oil Outlet Hose)	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)
96135-51300	Clamp, Hose	Fuel Injection System ([05.2002 - ] (0205- )1AZFSE)

Source: Public OEM parts-catalog data
Variants: 2 / 18
Category: 194
Collected: 2026-08-02
