Search › Model › AZT220

AZT220

Toyota AVENSIS · 2000 · 4,499 parts · 194 categories

4,499 items

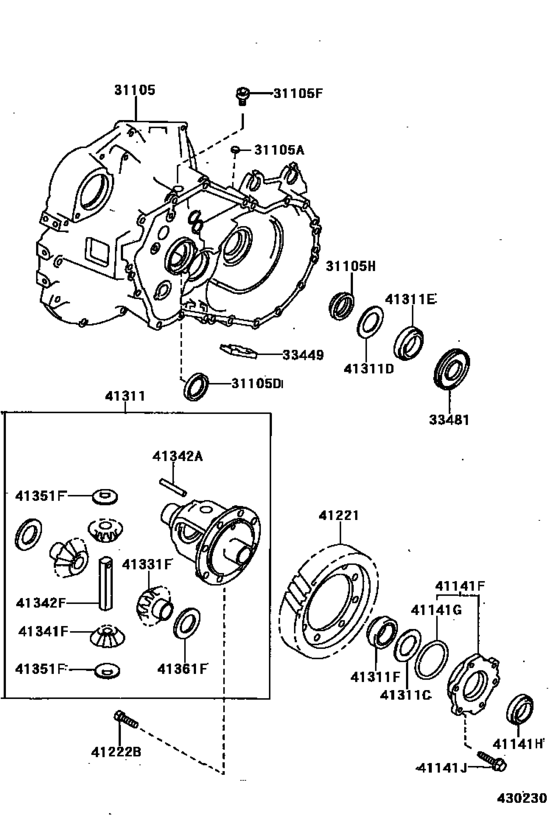

Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM) 50

#	OEM	Part name
31105	31105-20080	Case Sub-Assy, Transaxle(Mtm)
31105	90331-08002	Plug, Tight(For Front Transaxle Case)
31105	90311-30006	Seal, Oil, No.1(For Front Transaxle Case)
31105	90311-30017	Seal, Oil, No.1(For Front Transaxle Case)
31105	90341-10065	Plug, Straight, No.1
31105	90311-35049	Oil Seal, Front Drive Shaft, Rh
33449	33449-32020	Magnet, Transmission
33481	33481-32060	Gear, Speedometer Drive (Mtm)
41141	41101-32011	Retainer, Front Differential Side Bearing
41141	90301-63004	Ring, O (For Transfer Extension Housing)
41141	90311-35048	Oil Seal, Front Drive Shaft, Lh
41141	90105-08061	Bolt(For Rear Differential Side Bearing Retainer)
41141	91511-C0825	Bolt(For Front Differential Side Bearing Retainer)
41221	41221-32080	Gear, Front Differential Ring
41222	90105-11040	Bolt (For Rear Differential Ring Gear Set)
41311	41301-32061	Case Sub-Assy, Rear Differential
41311	90564-45001	Shim (For Front Differential Case Rear)
41311	90564-45002	Shim (For Front Differential Case Rear)
41311	90564-45003	Shim (For Front Differential Case Rear)
41311	90564-45004	Shim (For Front Differential Case Rear)
41311	90564-45005	Shim (For Front Differential Case Rear)
41311	90564-45006	Shim (For Front Differential Case Rear)
41311	90564-45007	Shim (For Front Differential Case Rear)
41311	90564-45008	Shim (For Front Differential Case Rear)
41311	90564-45009	Shim (For Front Differential Case Rear)
41311	90564-45010	Shim (For Front Differential Case Rear)
41311	90564-45011	Shim(For Rear Differential Case)
41311	90564-45012	Shim (For Front Differential Case Rear)
41311	90564-45013	Shim (For Front Differential Case Rear)
41311	90564-45014	Shim (For Front Differential Case Rear)
41311	90564-45015	Shim(For Rear Differential Case)
41311	90564-45016	Shim (For Front Differential Case Rear)
41311	90564-45017	Shim (For Front Differential Case Rear)
41311	90564-45018	Shim (For Front Differential Case Rear)
41311	90564-45019	Shim (For Front Differential Case Rear)
41311	90366-40016	Bearing(For Rear Differential Case)
41311	90366-40064	Bearing(For Rear Differential Case)
41331	41331-32010	Gear, Rear Differential Side
41341	41341-30011	Pinion, Rear Differential
41341	41039-28010	Gear Kit, Differential, Rear
41342	90250-06058	Pin, Straight(For Timing Gear Case)
41342	41342-32020	Shaft, Rear Differential Pinion
41342	41342-52060	Shaft, Front Differential Pinion, No.1
41351	41351-32010	Washer, Rear Differential Pinion Thrust
41361	41361-22020	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-22030	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-22040	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-22140	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-22150	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-22160	Washer, Rear Differential Side Gear Thrust, No.1

OEM	Part name	Category
31105-20080	Case Sub-Assy, Transaxle(Mtm)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
33449-32020	Magnet, Transmission	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
33481-32060	Gear, Speedometer Drive (Mtm)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
41039-28010	Gear Kit, Differential, Rear	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
41101-32011	Retainer, Front Differential Side Bearing	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
41221-32080	Gear, Front Differential Ring	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
41301-32061	Case Sub-Assy, Rear Differential	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
41331-32010	Gear, Rear Differential Side	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
41341-30011	Pinion, Rear Differential	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
41342-32020	Shaft, Rear Differential Pinion	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
41342-52060	Shaft, Front Differential Pinion, No.1	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
41351-32010	Washer, Rear Differential Pinion Thrust	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
41361-22020	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
41361-22030	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
41361-22040	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
41361-22140	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
41361-22150	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
41361-22160	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90105-08061	Bolt(For Rear Differential Side Bearing Retainer)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90105-11040	Bolt (For Rear Differential Ring Gear Set)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90250-06058	Pin, Straight(For Timing Gear Case)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90301-63004	Ring, O (For Transfer Extension Housing)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90311-30006	Seal, Oil, No.1(For Front Transaxle Case)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90311-30017	Seal, Oil, No.1(For Front Transaxle Case)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90311-35048	Oil Seal, Front Drive Shaft, Lh	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90311-35049	Oil Seal, Front Drive Shaft, Rh	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90331-08002	Plug, Tight(For Front Transaxle Case)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90341-10065	Plug, Straight, No.1	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90366-40016	Bearing(For Rear Differential Case)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90366-40064	Bearing(For Rear Differential Case)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90564-45001	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90564-45002	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90564-45003	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90564-45004	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90564-45005	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90564-45006	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90564-45007	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90564-45008	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90564-45009	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90564-45010	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90564-45011	Shim(For Rear Differential Case)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90564-45012	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90564-45013	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90564-45014	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90564-45015	Shim(For Rear Differential Case)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90564-45016	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90564-45017	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90564-45018	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
90564-45019	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
91511-C0825	Bolt(For Front Differential Side Bearing Retainer)	Front Axle Housing & Differential ([10.1997 - ] S50,S54 (9710- )AZT220,CT220,ST220..MTM)
