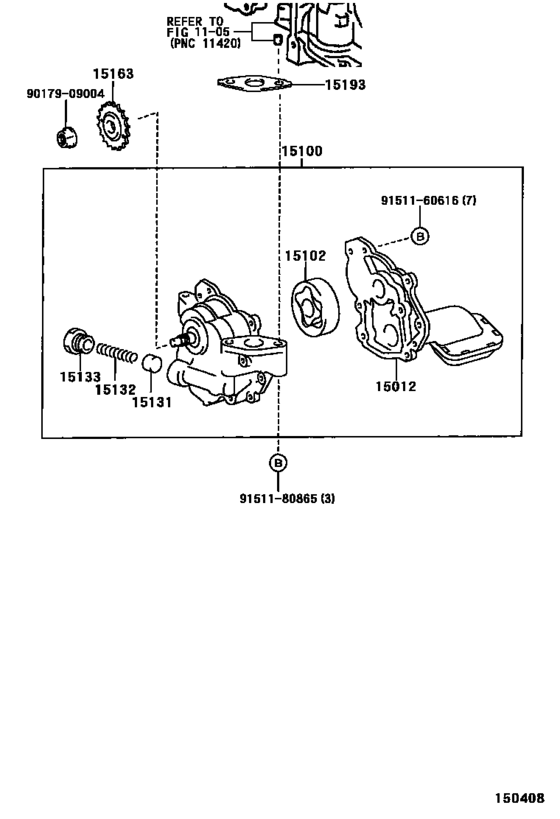

| 15012-28030 |
Cover Sub-Assy, Oil Pump |
Engine Oil Pump ([07.2000 - ] (0007- )1AZFSE) |
| 15100-28030 |
Pump Assy, Oil |
Engine Oil Pump ([07.2000 - ] (0007- )1AZFSE) |
| 15102-28030 |
Rotor Set, Oil Pump |
Engine Oil Pump ([07.2000 - ] (0007- )1AZFSE) |
| 15131-46040 |
Valve, Oil Pump Relief |
Engine Oil Pump ([07.2000 - ] (0007- )1AZFSE) |
| 15132-28020 |
Spring, Oil Pump Relief Valve |
Engine Oil Pump ([07.2000 - ] (0007- )1AZFSE) |
| 15133-28020 |
Plug, Oil Pump Relief Valve |
Engine Oil Pump ([07.2000 - ] (0007- )1AZFSE) |
| 15163-28010 |
Gear, Oil Pump Drive Shaft |
Engine Oil Pump ([07.2000 - ] (0007- )1AZFSE) |
| 15193-28010 |
Gasket, Oil Pump |
Engine Oil Pump ([07.2000 - ] (0007- )1AZFSE) |
| 90179-09004 |
NUT |
Engine Oil Pump ([07.2000 - ] (0007- )1AZFSE) |
| 91511-60616 |
BOLTFLANGE |
Engine Oil Pump ([07.2000 - ] (0007- )1AZFSE) |
| 91511-80865 |
Bolt(For Cylinder Head Set Sub) |
Engine Oil Pump ([07.2000 - ] (0007- )1AZFSE) |
| 91511-B0616 |
BOLT, FLANGE |
Engine Oil Pump ([07.2000 - ] (0007- )1AZFSE) |
