AZG413

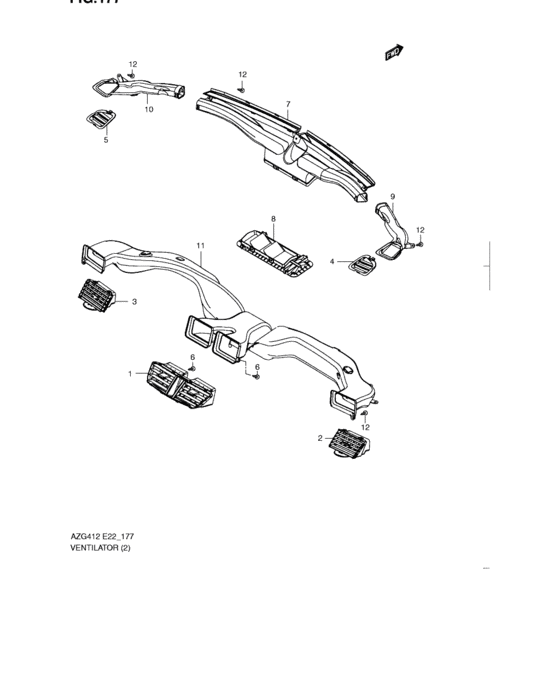

Ventilator (RHD) 12
| # | OEM | Part name |
|---|---|---|
| 1 | 73610-68L00-5PK | Louver, ctr vent - Black |
| 2 | 73630-68L00-S1S | Louver, side vent rh - Charcoal gray |
| 3 | 73640-68L00-S1S | Louver, side vent lh - Charcoal gray |
| 4 | 73651-68L00-S1S | Nozzle, side demister rh - Charcoal gray |
| 5 | 73652-68L00-S1S | Nozzle, side demister lh - Charcoal gray |
| 6 | 03541-0412A-000 | SCREW - Screw, speedometer |
| 7 | 73661-68L00-000 | Nozzle, dfr |
| 8 | 73662-68L00-000 | Adapter, dfr nozzle |
| 9 | 73681-68L00-000 | Duct, demister rh |
| 10 | 73691-68L00-000 | Duct, demister lh |
| 11 | 74621-68L00-000 | Duct, vent |
| 12 | 03541-0516A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 03541-0412A-000 | SCREW - Screw, speedometer | Ventilator (RHD) |
| 03541-0516A-000 | SCREW | Ventilator (RHD) |
| 73610-68L00-5PK | Louver, ctr vent - Black | Ventilator (RHD) |
| 73630-68L00-S1S | Louver, side vent rh - Charcoal gray | Ventilator (RHD) |
| 73640-68L00-S1S | Louver, side vent lh - Charcoal gray | Ventilator (RHD) |
| 73651-68L00-S1S | Nozzle, side demister rh - Charcoal gray | Ventilator (RHD) |
| 73652-68L00-S1S | Nozzle, side demister lh - Charcoal gray | Ventilator (RHD) |
| 73661-68L00-000 | Nozzle, dfr | Ventilator (RHD) |
| 73662-68L00-000 | Adapter, dfr nozzle | Ventilator (RHD) |
| 73681-68L00-000 | Duct, demister rh | Ventilator (RHD) |
| 73691-68L00-000 | Duct, demister lh | Ventilator (RHD) |
| 74621-68L00-000 | Duct, vent | Ventilator (RHD) |
