Search › Model › AZG413
AZG413

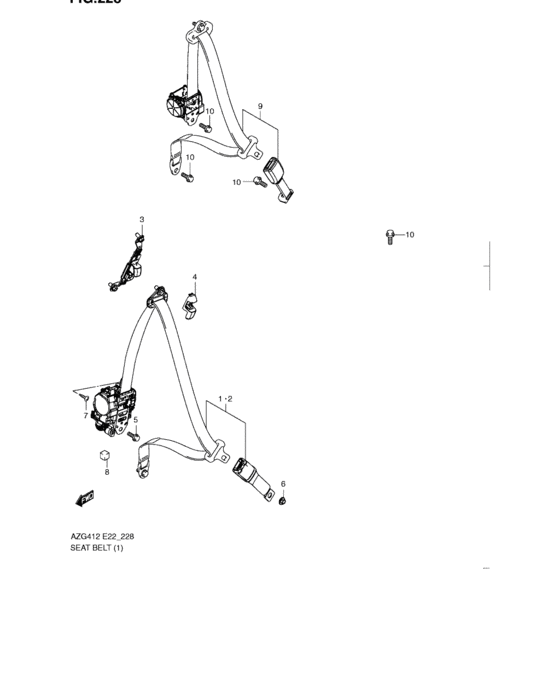

Seat belt (3DR) 12
| # | OEM | Part name |
|---|---|---|
| 1 | 84901-69L00-BHE | Belt assy, fr rh - Gray/black |
| 1 | 84901-69L10-BHE | Belt assy, fr rh - Gray/black |
| 2 | 84902-69L10-BHE | Belt assy, fr lh - Gray/black |
| 2 | 84902-69L00-BHE | Belt assy, fr lh - Gray/black |
| 3 | 84990-79K00-6GS | ADJUSTER ASSY,FR SHOULDER(GRAY |
| 4 | 84991-79K00-6GS | COVER,SHOULDER ADJUSTER |
| 5 | 09103-11001-000 | BOLT(7/16X22) - Bolt, fr belt buckle |
| 6 | 09159-11004-000 | NUT |
| 7 | 03141-0612A-000 | SCREW |
| 8 | 84926-68L00-000 | PAD,FRONT ELR |
| 9 | 84904-68L00-5PK | Belt assy, rr - Black |
| 10 | 09103-11002-000 | BOLT(7/16X22) |
| OEM | Part name | Category |
|---|---|---|
| 03141-0612A-000 | SCREW | Seat belt (3DR) |
| 09103-11001-000 | BOLT(7/16X22) - Bolt, fr belt buckle | Seat belt (3DR) |
| 09103-11002-000 | BOLT(7/16X22) | Seat belt (3DR) |
| 09159-11004-000 | NUT | Seat belt (3DR) |
| 84901-69L00-BHE | Belt assy, fr rh - Gray/black | Seat belt (3DR) |
| 84901-69L10-BHE | Belt assy, fr rh - Gray/black | Seat belt (3DR) |
| 84902-69L00-BHE | Belt assy, fr lh - Gray/black | Seat belt (3DR) |
| 84902-69L10-BHE | Belt assy, fr lh - Gray/black | Seat belt (3DR) |
| 84904-68L00-5PK | Belt assy, rr - Black | Seat belt (3DR) |
| 84926-68L00-000 | PAD,FRONT ELR | Seat belt (3DR) |
| 84990-79K00-6GS | ADJUSTER ASSY,FR SHOULDER(GRAY | Seat belt (3DR) |
| 84991-79K00-6GS | COVER,SHOULDER ADJUSTER | Seat belt (3DR) |
