Search › Model › AZG413
AZG413

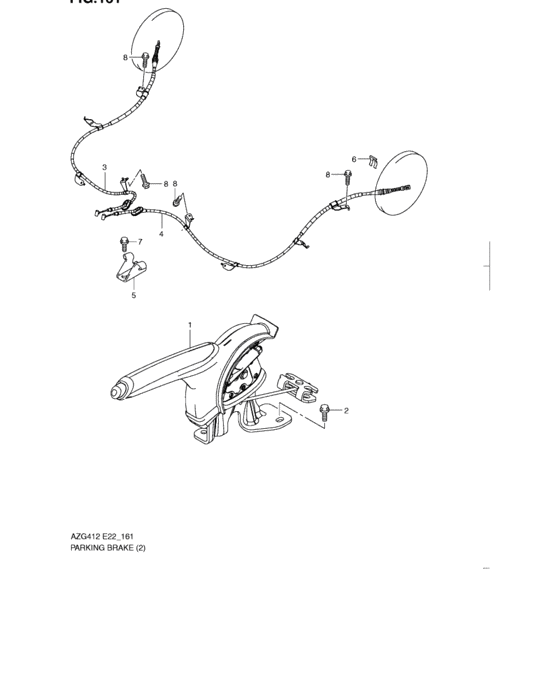

Parking brake (W/REAR DISC BRAKE) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 54100-68L01-S1S | Lever assy, parking bracket - Charcoal gray |
| 2 | 01551-0816C-000 | Bolt |
| 3 | 54401-68L20-000 | Cable, parking bracket rh |
| 4 | 54402-68L20-000 | Cable, parking bracket lh |
| 5 | 54495-86G00-000 | BRACKET,PARKING CABLE |
| 6 | 09383-13003-000 | E-RING |
| 8 | 02162-0612A-000 | SCREW - Bolt, bracket |
| OEM | Part name | Category |
|---|---|---|
| 01551-0816C-000 | Bolt | Parking brake (W/REAR DISC BRAKE) |
| 02162-0612A-000 | SCREW - Bolt, bracket | Parking brake (W/REAR DISC BRAKE) |
| 09383-13003-000 | E-RING | Parking brake (W/REAR DISC BRAKE) |
| 54100-68L01-S1S | Lever assy, parking bracket - Charcoal gray | Parking brake (W/REAR DISC BRAKE) |
| 54401-68L20-000 | Cable, parking bracket rh | Parking brake (W/REAR DISC BRAKE) |
| 54402-68L20-000 | Cable, parking bracket lh | Parking brake (W/REAR DISC BRAKE) |
| 54495-86G00-000 | BRACKET,PARKING CABLE | Parking brake (W/REAR DISC BRAKE) |
