Search › Model › AZG413
AZG413

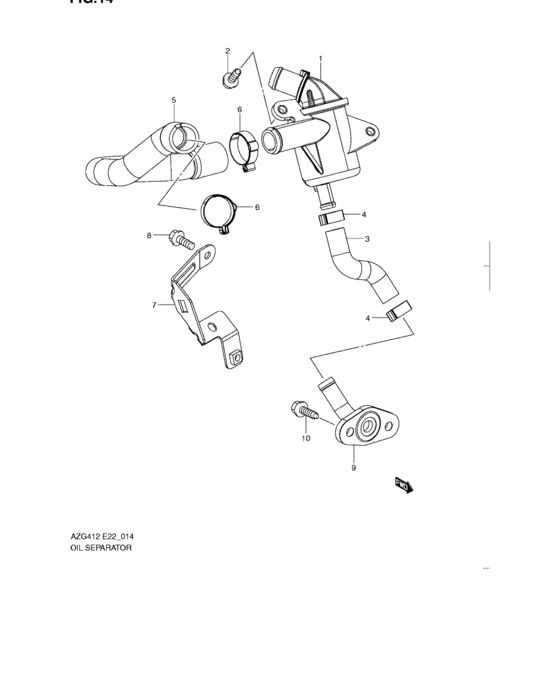

Oil separator (D13A) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 11181-M68L1-000 | Separator, oil & air |
| 2 | 11182-N86J0-000 | Bolt - 6x20 |
| 3 | 11192-M86J0-000 | Hose, separator drain |
| 4 | 11194-N86J0-000 | Clamp, sep drain hose |
| 5 | 11193-M86J0-000 | Hose, separator inlet |
| 6 | 11195-N86J0-000 | Clamp, sep inlet hose |
| 7 | 11196-M86J0-100 | Bracket, sep inlet hose |
| 8 | 13943-N86J0-000 | Bolt, eng harn brkt fr |
| 9 | 11197-N86J1-000 | Cover comp, crankcase vent |
| OEM | Part name | Category |
|---|---|---|
| 11181-M68L1-000 | Separator, oil & air | Oil separator (D13A) |
| 11182-N86J0-000 | Bolt - 6x20 | Oil separator (D13A) |
| 11192-M86J0-000 | Hose, separator drain | Oil separator (D13A) |
| 11193-M86J0-000 | Hose, separator inlet | Oil separator (D13A) |
| 11194-N86J0-000 | Clamp, sep drain hose | Oil separator (D13A) |
| 11195-N86J0-000 | Clamp, sep inlet hose | Oil separator (D13A) |
| 11196-M86J0-100 | Bracket, sep inlet hose | Oil separator (D13A) |
| 11197-N86J1-000 | Cover comp, crankcase vent | Oil separator (D13A) |
| 13943-N86J0-000 | Bolt, eng harn brkt fr | Oil separator (D13A) |
