AZG413

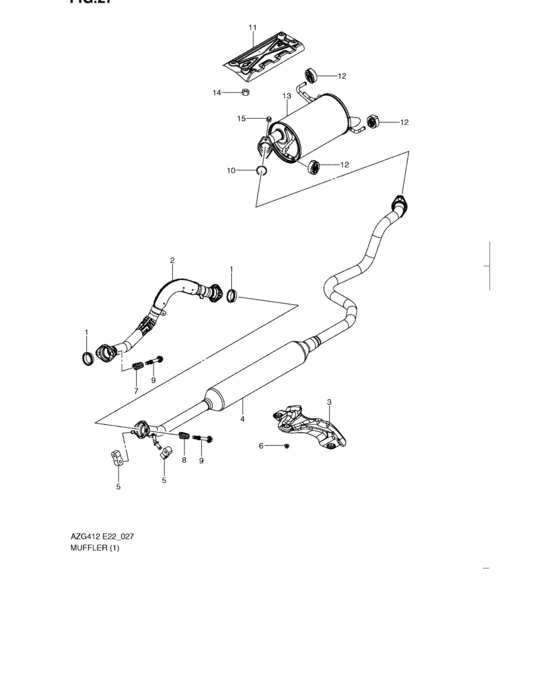

Muffler (K12B) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 14183-79J10-000 | RING,SEAL EXH PIPE |
| 2 | 14190-69L00-000 | Pipe, exh no.1 |
| 3 | 14232-69L00-000 | Insulator, parking cable heat |
| 4 | 14250-69L00-000 | Pipe, exh center |
| 5 | 14281-71C01-000 | MOUNTING,MUF |
| 6 | 14357-72J00-000 | NUT |
| 7 | 14492-82610-000 | SPRING,EXH PIPE |
| 9 | 09119-10073-000 | BOLT(10X65) |
| 10 | 14182-60B00-000 | GASKET,EXH PIPE |
| 10 | 14182-60B01-000 | Gasket,exh Pipe |
| 11 | 14231-69L00-000 | Insulator, heat |
| 12 | 14281-80JA0-000 | MOUNTING,MUF |
| 13 | 14300-69L00-000 | Muffler |
| 15 | 09159-10102-000 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 09119-10073-000 | BOLT(10X65) | Muffler (K12B) |
| 09159-10102-000 | NUT | Muffler (K12B) |
| 14182-60B00-000 | GASKET,EXH PIPE | Muffler (K12B) |
| 14182-60B01-000 | Gasket,exh Pipe | Muffler (K12B) |
| 14183-79J10-000 | RING,SEAL EXH PIPE | Muffler (K12B) |
| 14190-69L00-000 | Pipe, exh no.1 | Muffler (K12B) |
| 14231-69L00-000 | Insulator, heat | Muffler (K12B) |
| 14232-69L00-000 | Insulator, parking cable heat | Muffler (K12B) |
| 14250-69L00-000 | Pipe, exh center | Muffler (K12B) |
| 14281-71C01-000 | MOUNTING,MUF | Muffler (K12B) |
| 14281-80JA0-000 | MOUNTING,MUF | Muffler (K12B) |
| 14300-69L00-000 | Muffler | Muffler (K12B) |
| 14357-72J00-000 | NUT | Muffler (K12B) |
| 14492-82610-000 | SPRING,EXH PIPE | Muffler (K12B) |
