Search › Model › AZG413
AZG413

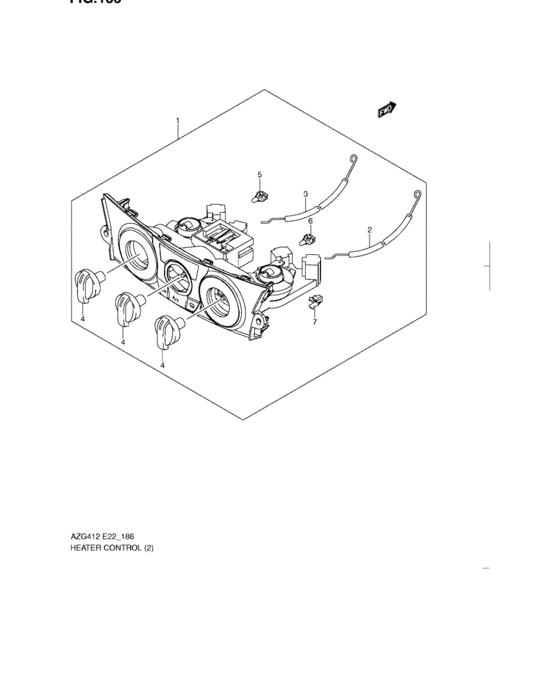

Heater control (RHD) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 74400-68L20-S1S | Control unit, hvac - Charcoal gray |
| 1 | 74400-68L00-S1S | Control unit, hvac - Charcoal gray |
| 2 | 74451-68L00-000 | Cable, mode control |
| 3 | 74452-68L00-000 | Cable, temp control |
| 4 | 74461-68L00-000 | Knob, heater control |
| 5 | 74531-68L00-000 | Bulb - W/red cap |
| 6 | 74532-68L00-000 | Bulb - Clear |
| 7 | 09409-08342-000 | CLIP |
| OEM | Part name | Category |
|---|---|---|
| 09409-08342-000 | CLIP | Heater control (RHD) |
| 74400-68L00-S1S | Control unit, hvac - Charcoal gray | Heater control (RHD) |
| 74400-68L20-S1S | Control unit, hvac - Charcoal gray | Heater control (RHD) |
| 74451-68L00-000 | Cable, mode control | Heater control (RHD) |
| 74452-68L00-000 | Cable, temp control | Heater control (RHD) |
| 74461-68L00-000 | Knob, heater control | Heater control (RHD) |
| 74531-68L00-000 | Bulb - W/red cap | Heater control (RHD) |
| 74532-68L00-000 | Bulb - Clear | Heater control (RHD) |
