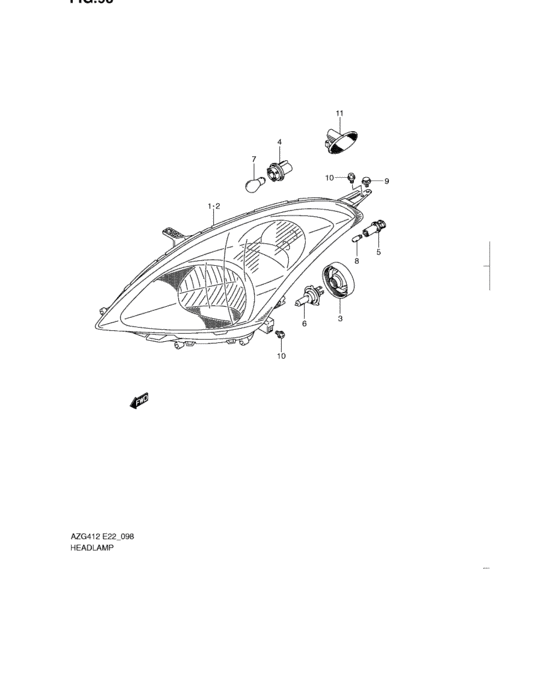

Headlamp (HEADLAMP)
13
| # | OEM | Part name |
|---|
| 1 |
35120-68L10-000 |
Unit, headlamp rh |
| 1 |
35120-68L00-000 |
Unit, headlamp rh |
| 2 |
35320-68L10-000 |
Unit, headlamp lh |
| 2 |
35320-68L00-000 |
Unit, headlamp lh |
| 3 |
35125-76G00-000 |
COVER,SOCKET |
| 4 |
35618-86G00-000 |
ソケット,ターンシグナルランプ |
| 5 |
36118-64L00-000 |
SOCKET,POSITION LAMP |
| 6 |
09471-12182-000 |
BULB(12V60/55W,H4) |
| 7 |
09471-12186-000 |
BULB(12V21W,AMBER) |
| 8 |
09471-12216-000 |
BULB(12V5W) - Bulb (12v5w) |
| 9 |
09409-08327-000 |
CLIP |
| 10 |
09122-76006-000 |
SCREW(6X16) |
| 11 |
36410-51K00-000 |
LAMP ASSY,TURN SIG |
| OEM |
Part name |
Category |
| 09122-76006-000 |
SCREW(6X16) |
Headlamp (HEADLAMP) |
| 09409-08327-000 |
CLIP |
Headlamp (HEADLAMP) |
| 09471-12182-000 |
BULB(12V60/55W,H4) |
Headlamp (HEADLAMP) |
| 09471-12186-000 |
BULB(12V21W,AMBER) |
Headlamp (HEADLAMP) |
| 09471-12216-000 |
BULB(12V5W) - Bulb (12v5w) |
Headlamp (HEADLAMP) |
| 35120-68L00-000 |
Unit, headlamp rh |
Headlamp (HEADLAMP) |
| 35120-68L10-000 |
Unit, headlamp rh |
Headlamp (HEADLAMP) |
| 35125-76G00-000 |
COVER,SOCKET |
Headlamp (HEADLAMP) |
| 35320-68L00-000 |
Unit, headlamp lh |
Headlamp (HEADLAMP) |
| 35320-68L10-000 |
Unit, headlamp lh |
Headlamp (HEADLAMP) |
| 35618-86G00-000 |
ソケット,ターンシグナルランプ |
Headlamp (HEADLAMP) |
| 36118-64L00-000 |
SOCKET,POSITION LAMP |
Headlamp (HEADLAMP) |
| 36410-51K00-000 |
LAMP ASSY,TURN SIG |
Headlamp (HEADLAMP) |
