AZG413

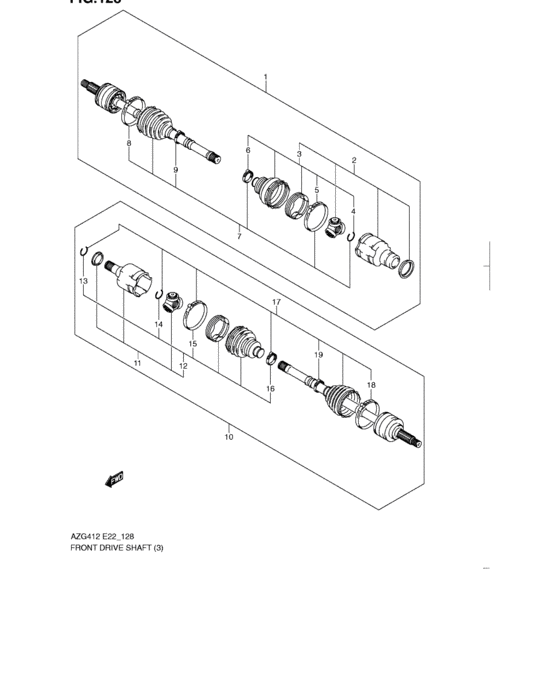

Front drive shaft (D13A) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 44101-68L80-000 | Shaft assy, front drive rh |
| 2 | 44117-68L80-000 | Joint assy, diff side |
| 3 | 44119-68L80-000 | Boot set, diff side |
| 4 | 44111-68L80-000 | Circlip |
| 5 | 44121-68L80-000 | Band, boot big |
| 6 | 44123-68L80-000 | Band, boot small |
| 7 | 44118-68L80-000 | Boot set, wheel side |
| 8 | 44122-68L80-000 | Band, boot big |
| 9 | 44124-68L80-000 | Band, boot small |
| 10 | 44102-68L80-000 | Shaft assy, front drive lh |
| 11 | 44117-68L70-000 | Joint assy, diff side |
| 12 | 44119-68L70-000 | Boot set, diff side |
| 13 | 44111-51K90-000 | Ring, snap |
| 17 | 44118-68L70-000 | Boot set, wheel side |
| OEM | Part name | Category |
|---|---|---|
| 44101-68L80-000 | Shaft assy, front drive rh | Front drive shaft (D13A) |
| 44102-68L80-000 | Shaft assy, front drive lh | Front drive shaft (D13A) |
| 44111-51K90-000 | Ring, snap | Front drive shaft (D13A) |
| 44111-68L80-000 | Circlip | Front drive shaft (D13A) |
| 44117-68L70-000 | Joint assy, diff side | Front drive shaft (D13A) |
| 44117-68L80-000 | Joint assy, diff side | Front drive shaft (D13A) |
| 44118-68L70-000 | Boot set, wheel side | Front drive shaft (D13A) |
| 44118-68L80-000 | Boot set, wheel side | Front drive shaft (D13A) |
| 44119-68L70-000 | Boot set, diff side | Front drive shaft (D13A) |
| 44119-68L80-000 | Boot set, diff side | Front drive shaft (D13A) |
| 44121-68L80-000 | Band, boot big | Front drive shaft (D13A) |
| 44122-68L80-000 | Band, boot big | Front drive shaft (D13A) |
| 44123-68L80-000 | Band, boot small | Front drive shaft (D13A) |
| 44124-68L80-000 | Band, boot small | Front drive shaft (D13A) |
