Search › Model › AZG413
AZG413

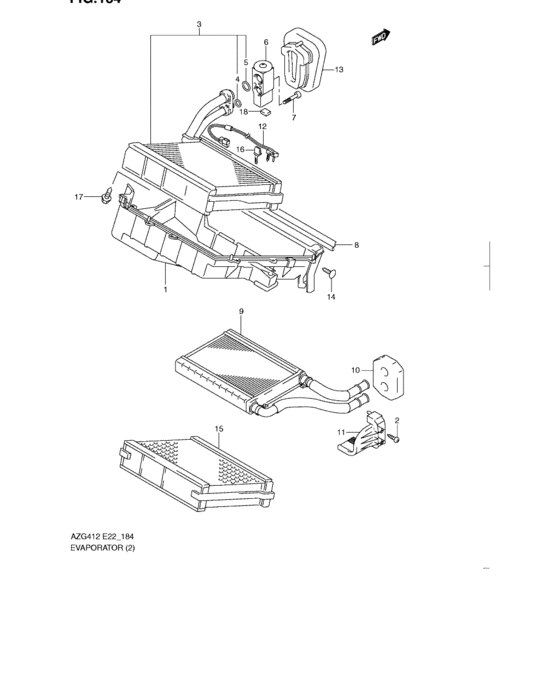

Evaporator (RHD) 24
| # | OEM | Part name |
|---|---|---|
| 1 | 74113-62J01-000 | Case, lower |
| 1 | 74113-62J20-000 | Case, lower |
| 2 | 03111-0416A-000 | SCREW |
| 3 | 95411-63J00-000 | Evaporator |
| 3 | 95411-63J01-000 | EVAPORATOR |
| 4 | 95895-50G00-000 | O-RING,D:2.4 ID:10.8 |
| 5 | 95896-50G00-000 | O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4) |
| 6 | 95431-68L00-000 | VALVE,EXP |
| 6 | 95431-68L10-000 | Valve, expansion |
| 7 | 74134-58J00-000 | Bolt |
| 8 | 95461-58J00-000 | PACKING,EVAP LWR |
| 9 | 74120-62J00-000 | Core, heater |
| 10 | 74118-63J01-000 | PACKING,HTR PIPE |
| 11 | 74131-63J01-000 | BRACKET,HTR PIPE |
| 12 | 95541-63J01-000 | THERMISTOR |
| 12 | 95541-63J21-000 | THERMISTOR |
| 13 | 95465-62JA0-000 | COVER |
| 13 | 95465-62JE0-000 | COVER |
| 13 | 95465-58J00-000 | COVER |
| 14 | 74119-54G00-000 | BUSH |
| 15 | 74240-62J00-000 | PLATE |
| 16 | 95452-63J00-000 | CLAMP |
| 17 | 03112-0616A-000 | SCREW |
| 18 | 95462-68L00-000 | Packing, expansion |
| OEM | Part name | Category |
|---|---|---|
| 03111-0416A-000 | SCREW | Evaporator (RHD) |
| 03112-0616A-000 | SCREW | Evaporator (RHD) |
| 74113-62J01-000 | Case, lower | Evaporator (RHD) |
| 74113-62J20-000 | Case, lower | Evaporator (RHD) |
| 74118-63J01-000 | PACKING,HTR PIPE | Evaporator (RHD) |
| 74119-54G00-000 | BUSH | Evaporator (RHD) |
| 74120-62J00-000 | Core, heater | Evaporator (RHD) |
| 74131-63J01-000 | BRACKET,HTR PIPE | Evaporator (RHD) |
| 74134-58J00-000 | Bolt | Evaporator (RHD) |
| 74240-62J00-000 | PLATE | Evaporator (RHD) |
| 95411-63J00-000 | Evaporator | Evaporator (RHD) |
| 95411-63J01-000 | EVAPORATOR | Evaporator (RHD) |
| 95431-68L00-000 | VALVE,EXP | Evaporator (RHD) |
| 95431-68L10-000 | Valve, expansion | Evaporator (RHD) |
| 95452-63J00-000 | CLAMP | Evaporator (RHD) |
| 95461-58J00-000 | PACKING,EVAP LWR | Evaporator (RHD) |
| 95462-68L00-000 | Packing, expansion | Evaporator (RHD) |
| 95465-58J00-000 | COVER | Evaporator (RHD) |
| 95465-62JA0-000 | COVER | Evaporator (RHD) |
| 95465-62JE0-000 | COVER | Evaporator (RHD) |
| 95541-63J01-000 | THERMISTOR | Evaporator (RHD) |
| 95541-63J21-000 | THERMISTOR | Evaporator (RHD) |
| 95895-50G00-000 | O-RING,D:2.4 ID:10.8 | Evaporator (RHD) |
| 95896-50G00-000 | O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4) | Evaporator (RHD) |
